Keyless Entry Receiver: Diagrams

Remote Control Door Lock Receiver:



Remote Control Door Lock Receiver (Part 1 Of 2):

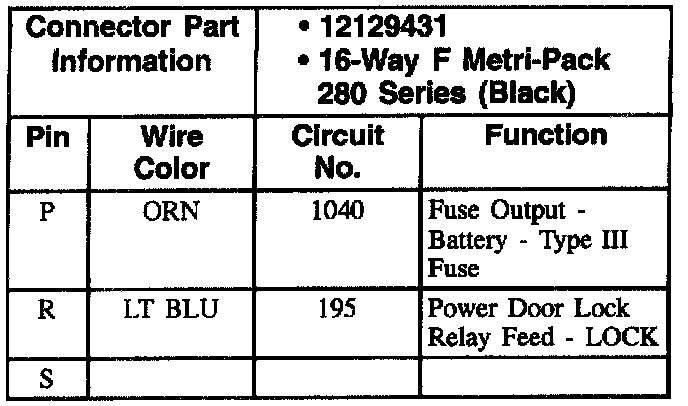

Remote Control Door Lock Receiver (Part 2 Of 2):
