Diagrams
>>
Electrical Diagrams
Electrical Diagrams

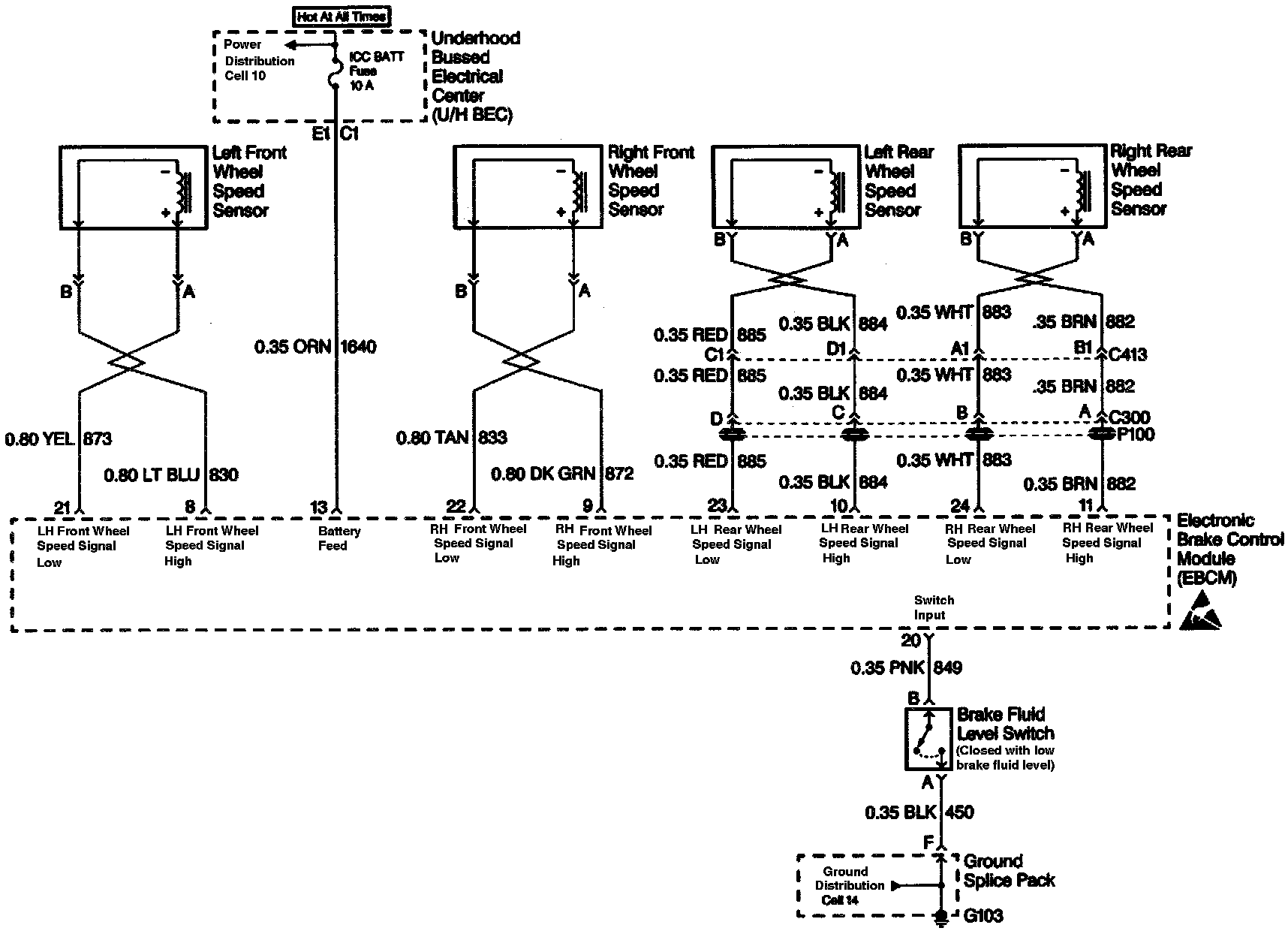

Antilock Brakes (Part 1 Of 3):
Antilock Brakes (Part 2 Of 3):
Antilock Brakes (Part 3 Of 3):
