Home >> Oldsmobile >> 1997 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connectors By Number >> C800-C899

C800-C899

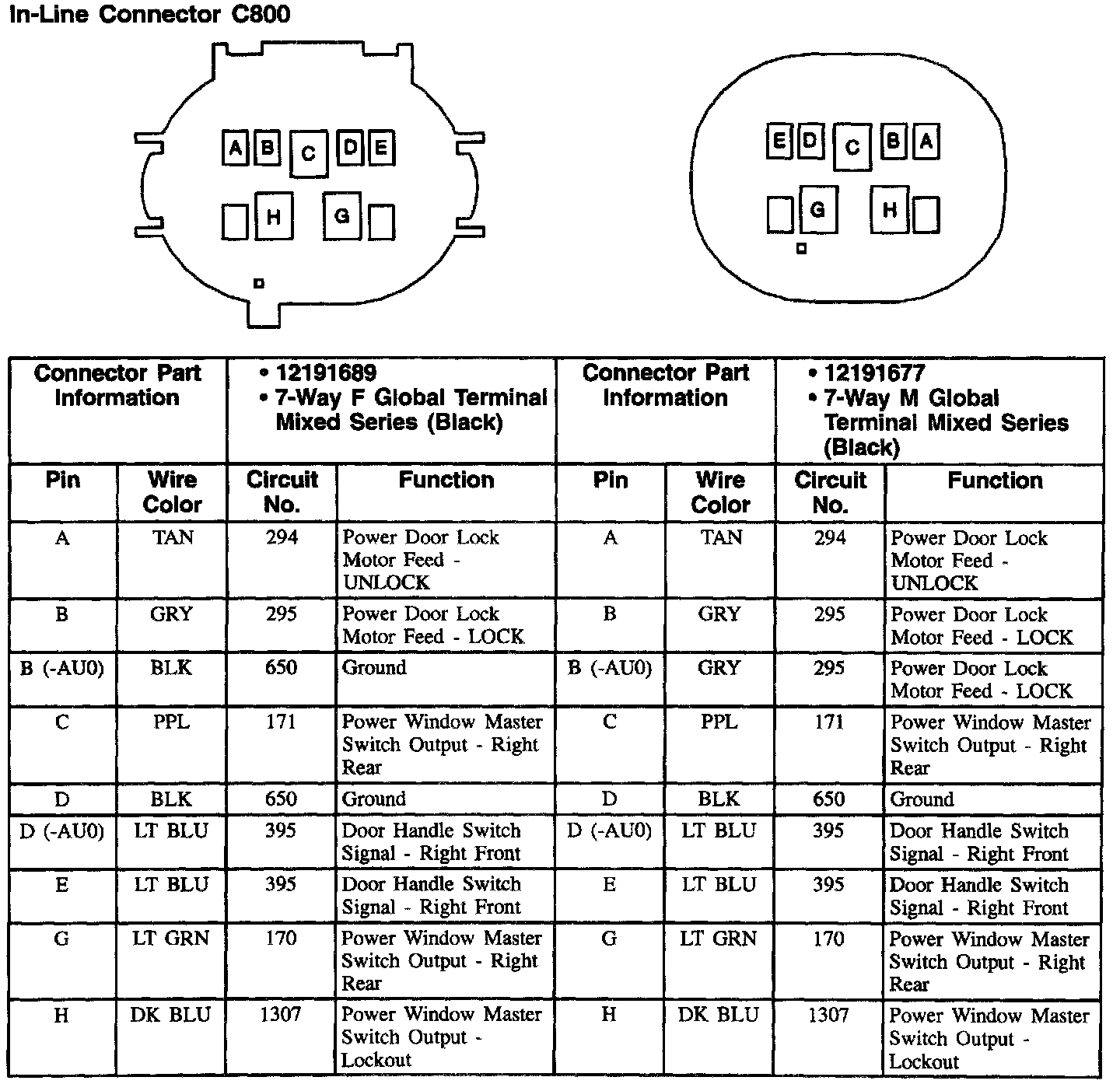

C800: Inline Connector:
