Electronic Brake Control Module
>>
Pinout Description
Pinout Description

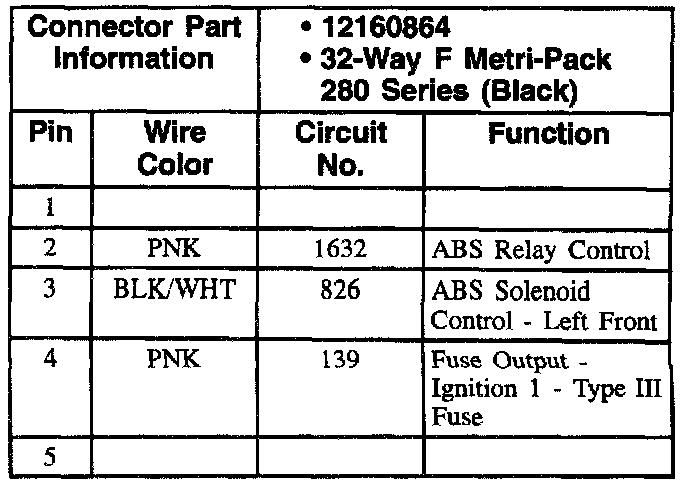

Electronic Brake Control Module (EBCM) (Part 1 Of 3):

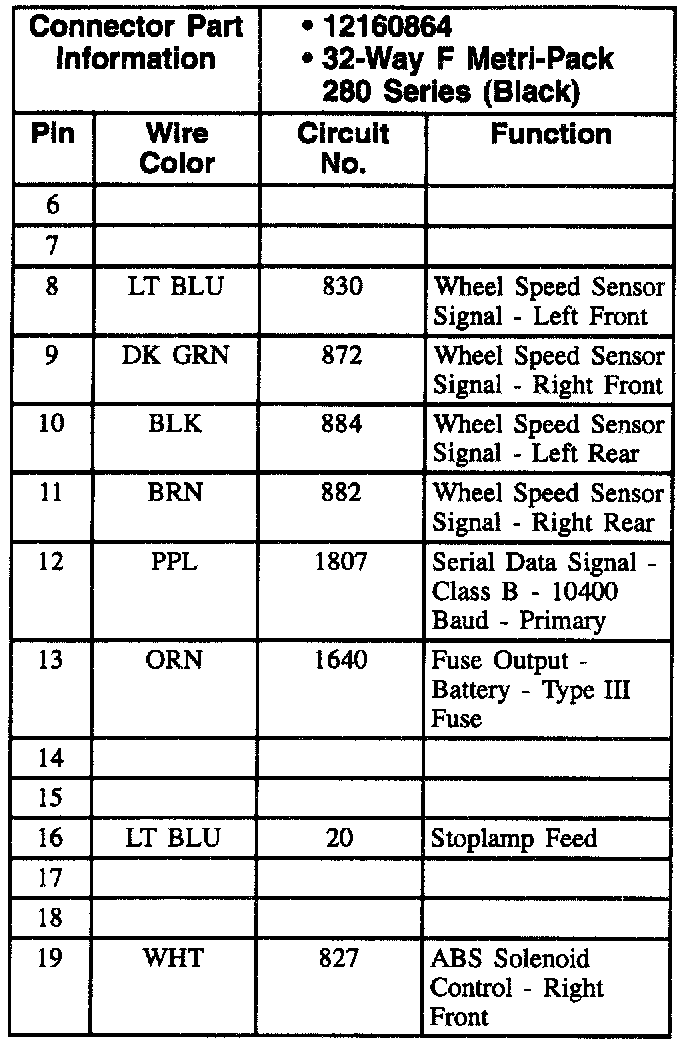

Electronic Brake Control Module (EBCM) (Part 2 Of 3):

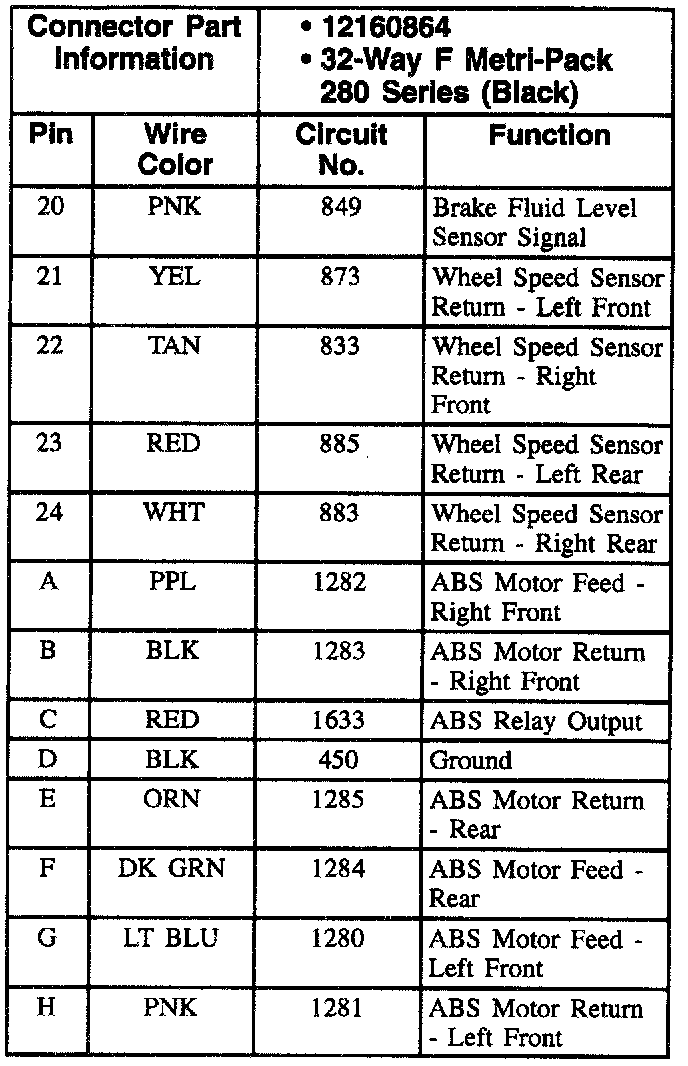

Electronic Brake Control Module (EBCM) (Part 3 Of 3):
