Fuel Injector

Fuel Injector:



Fuel Injector #1:



Fuel Injector #2:



Fuel Injector #3:

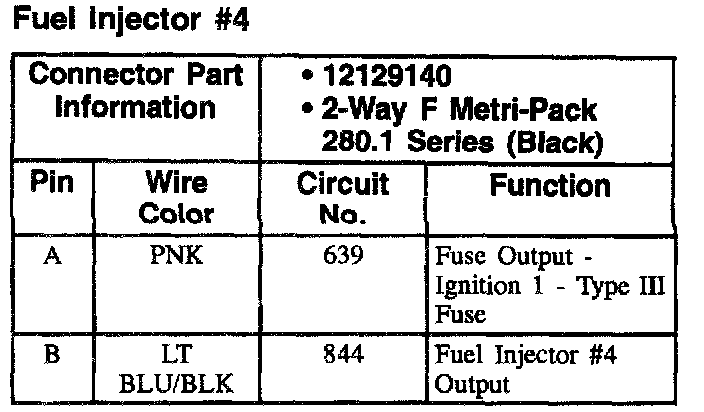

Fuel Injector #4:

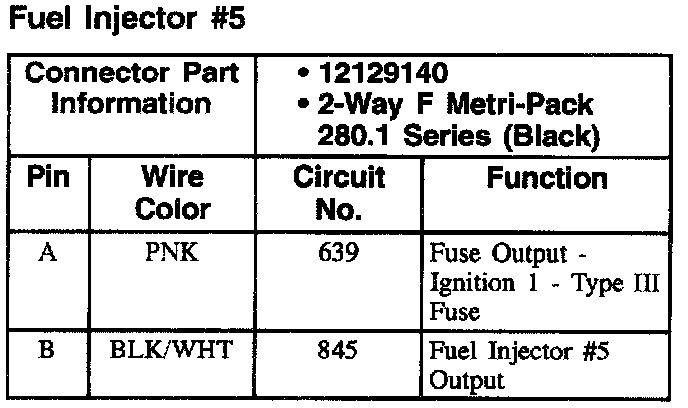

Fuel Injector #5:

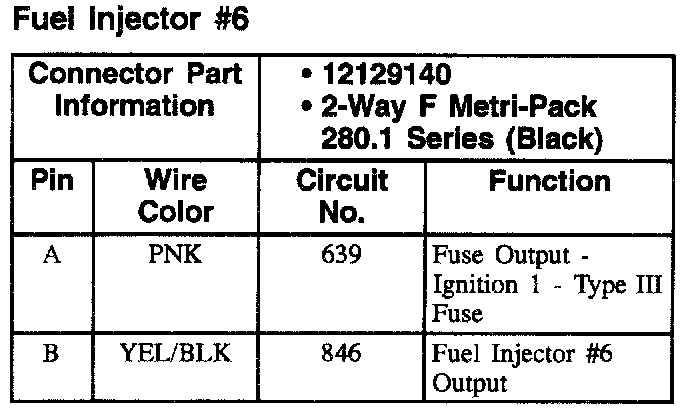

Fuel Injector #6:
