Home >> Oldsmobile >> 1997 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> RR

RR

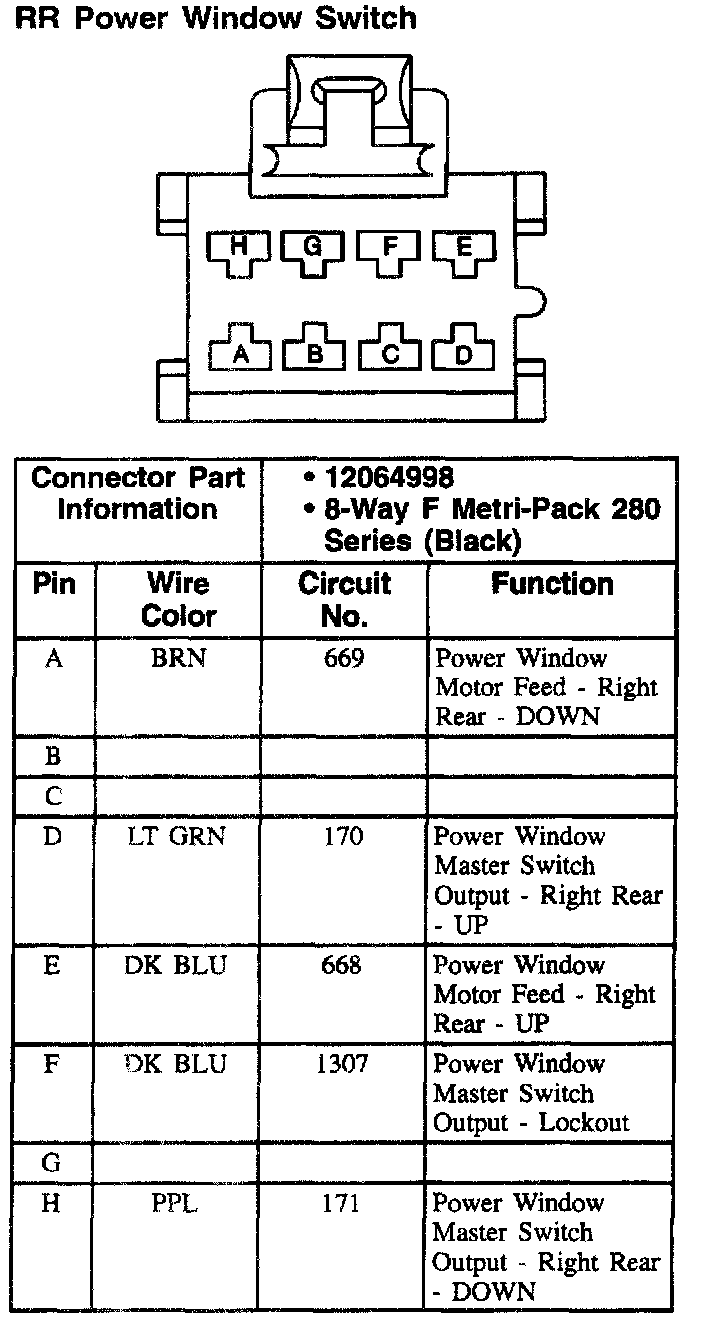

RR Power Window Switch:
