Automatic Transmission - Pinout Description
Automatic Transmission - Pinout Description

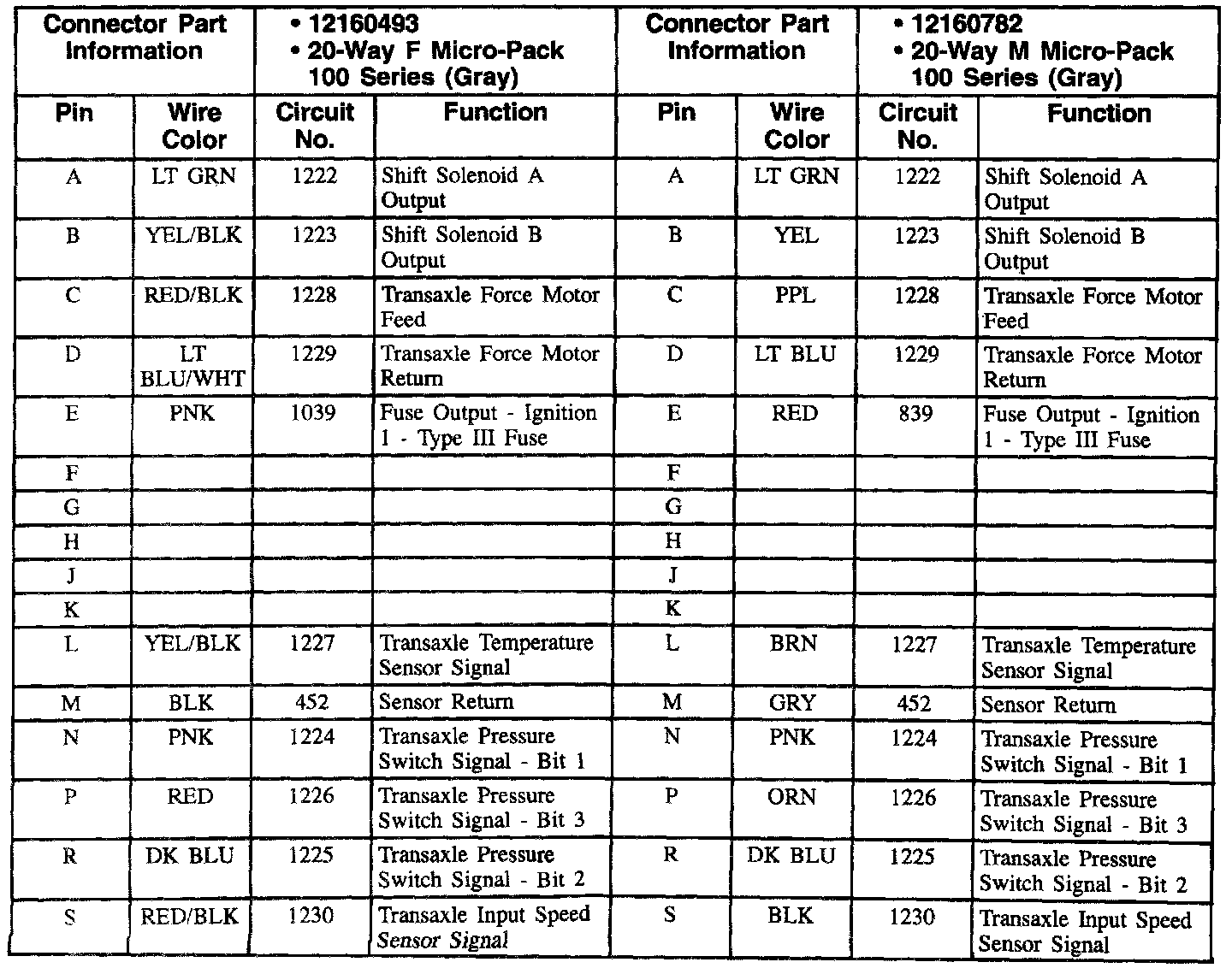

C102: Automatic Transaxle (Part 1 Of 2):
C102: Automatic Transaxle (Part 2 Of 2):
