Compressor Controls

HVAC: Compressor Controls (Part 1 Of 2):

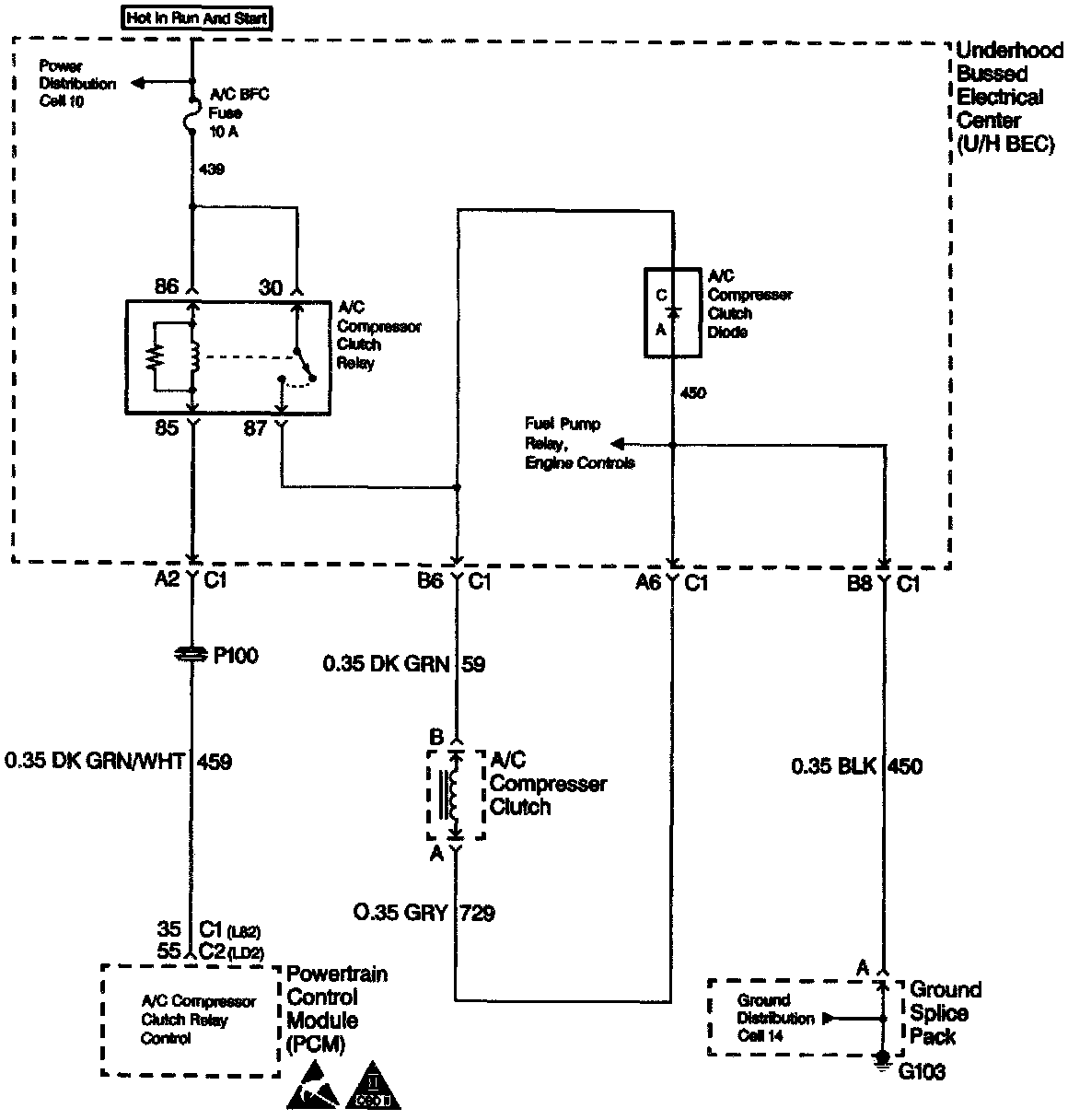

HVAC: Compressor Controls (Part 2 Of 2):
