Home >> Oldsmobile >> 1997 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lamps >> Courtesy/Glove Box

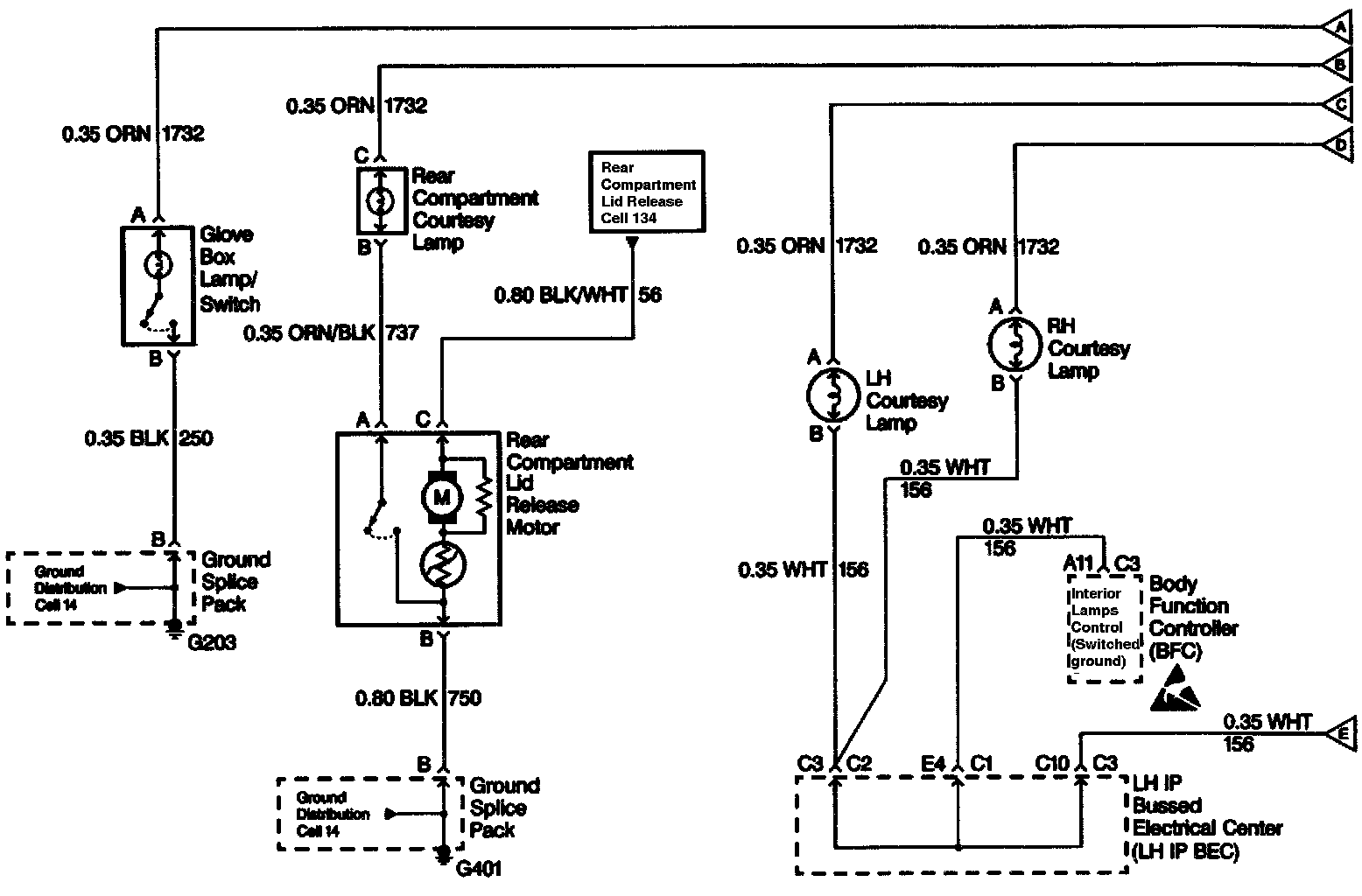

Courtesy/Glove Box

Interior Lights: Courtesy/Glove Box:
