Engine Wiring Views

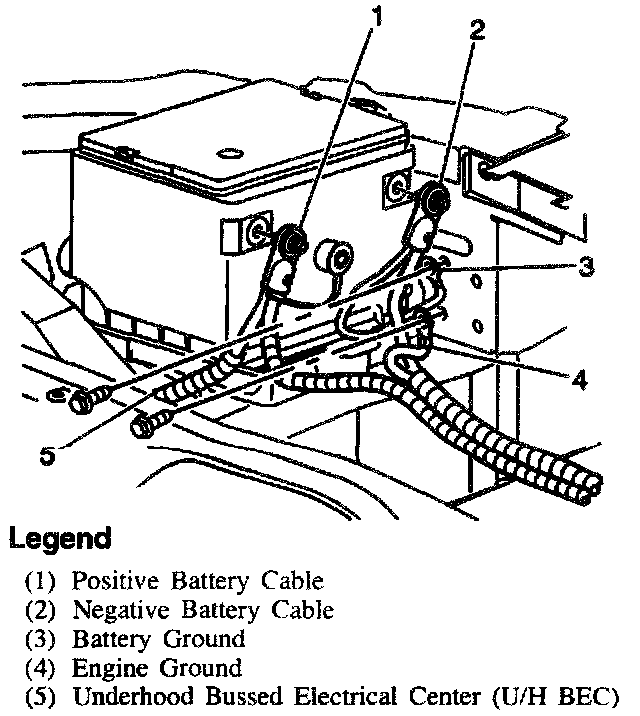

Battery:

Underhood Bussed Electrical Center (U/H BEC):

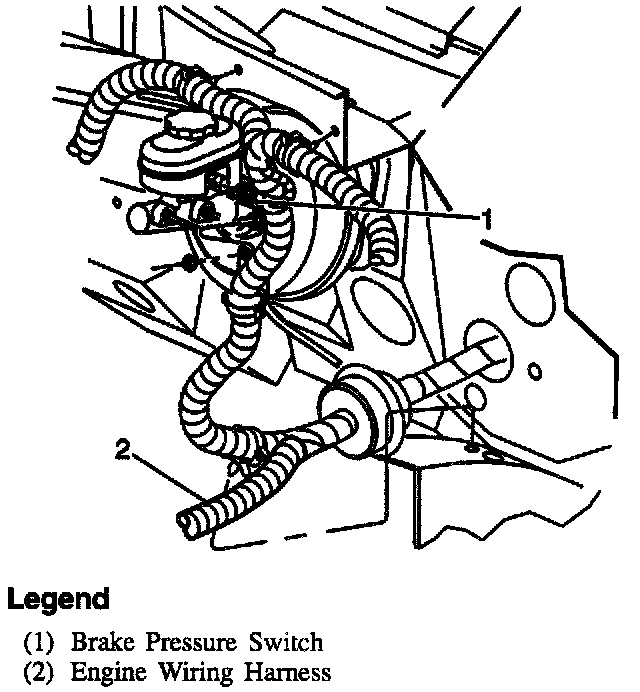

LH Rear Of Engine Compartment:

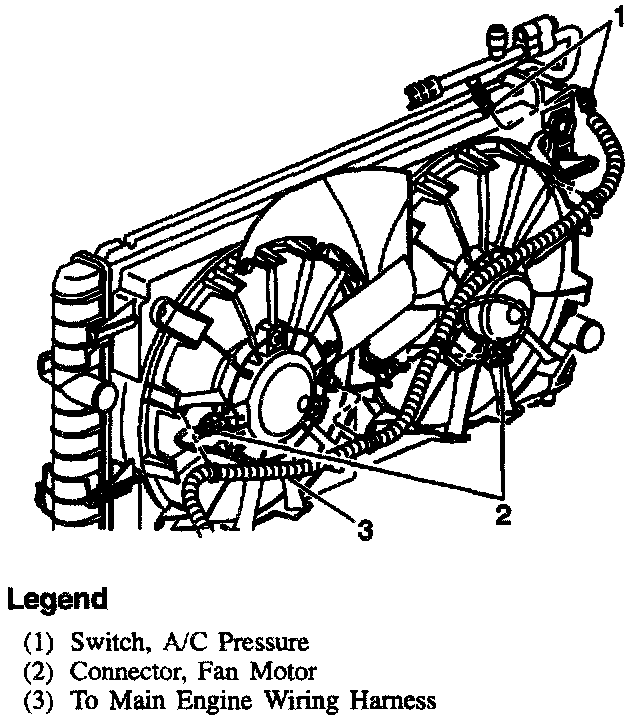

Front Of Engine Compartment:

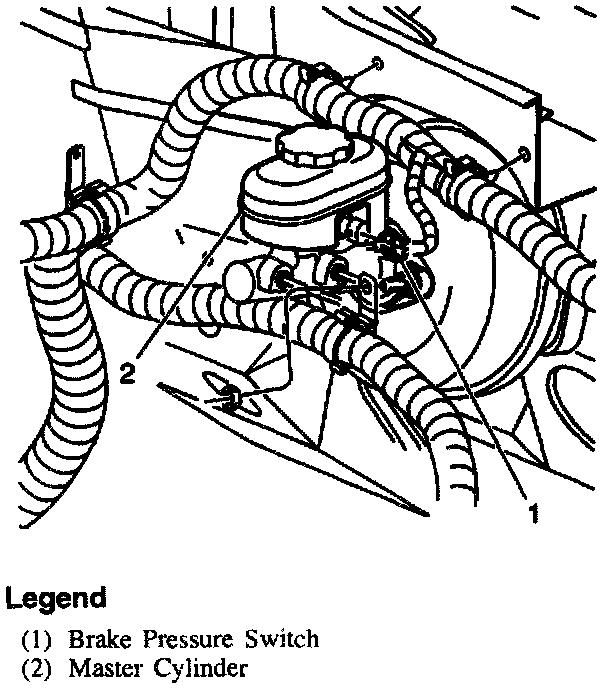

LH Rear Of Engine Compartment:

Starter (L82):

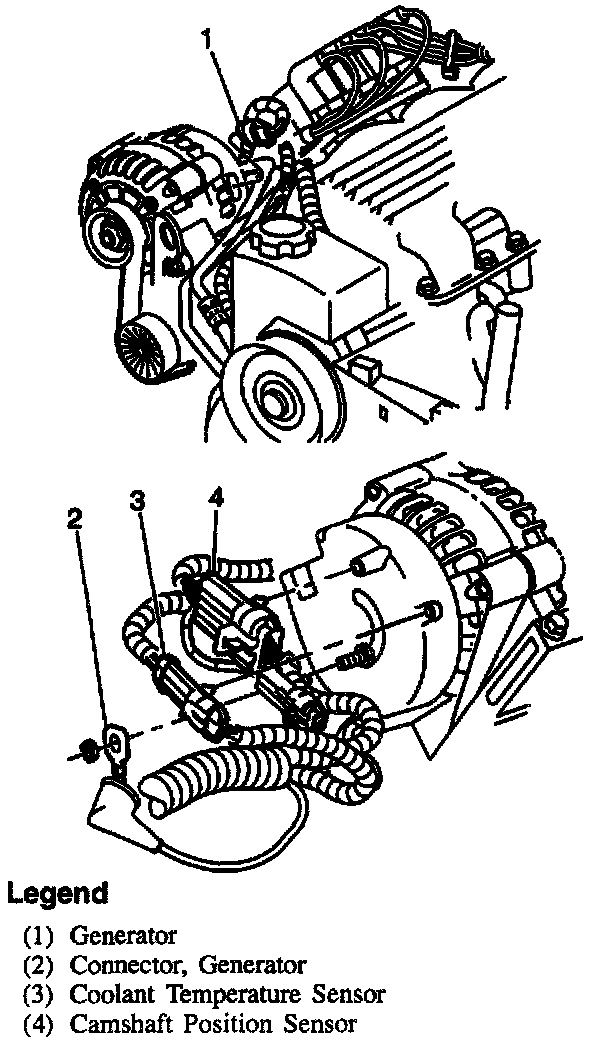

LH Side Of Engine (L82):

Front Of Engine (L82):

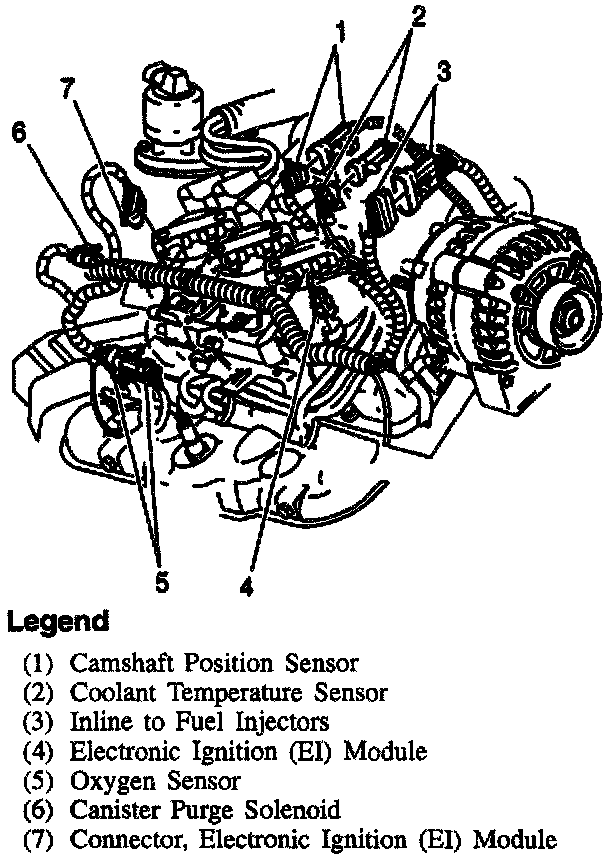

Top Rear Engine (L82):

RH Side Of Engine (L82):

RH Rear Of Engine (L82):
