Control Assembly: Service and Repair
Description:
Remove or Disconnect
1. Negative battery cable.
2. Accessory trim plate.

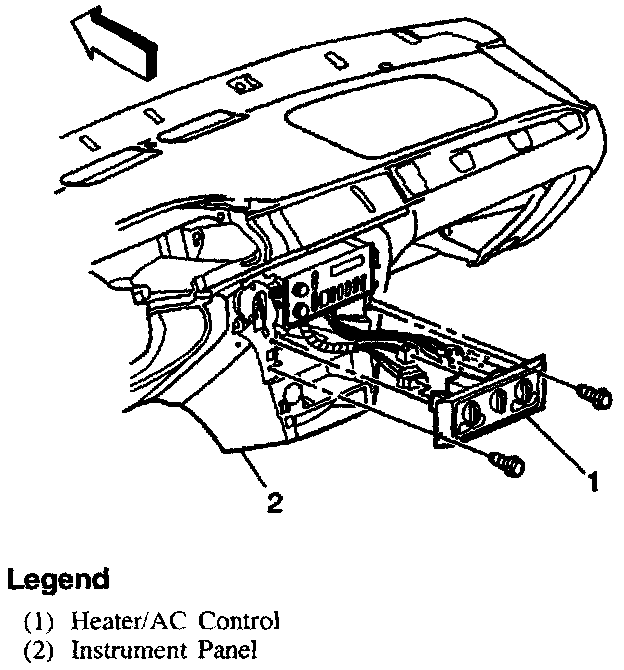

3. Heater and A/C control retaining screws and pull heater and A/C control away from the instrument panel.
4. Electrical and vacuum connections.
Install or Connect
1. Electrical and vacuum connections.
2. Heater and A/C control and retaining screws to instrument panel.
Tighten
^ Screw to 2 N.m (18 lb. in.).
3. Accessory trim plate.
4. Negative battery cable.
Tighten
^ Bolt to 16 N.m (12 lb. ft.).
