System Diagnosis Charts/Tables

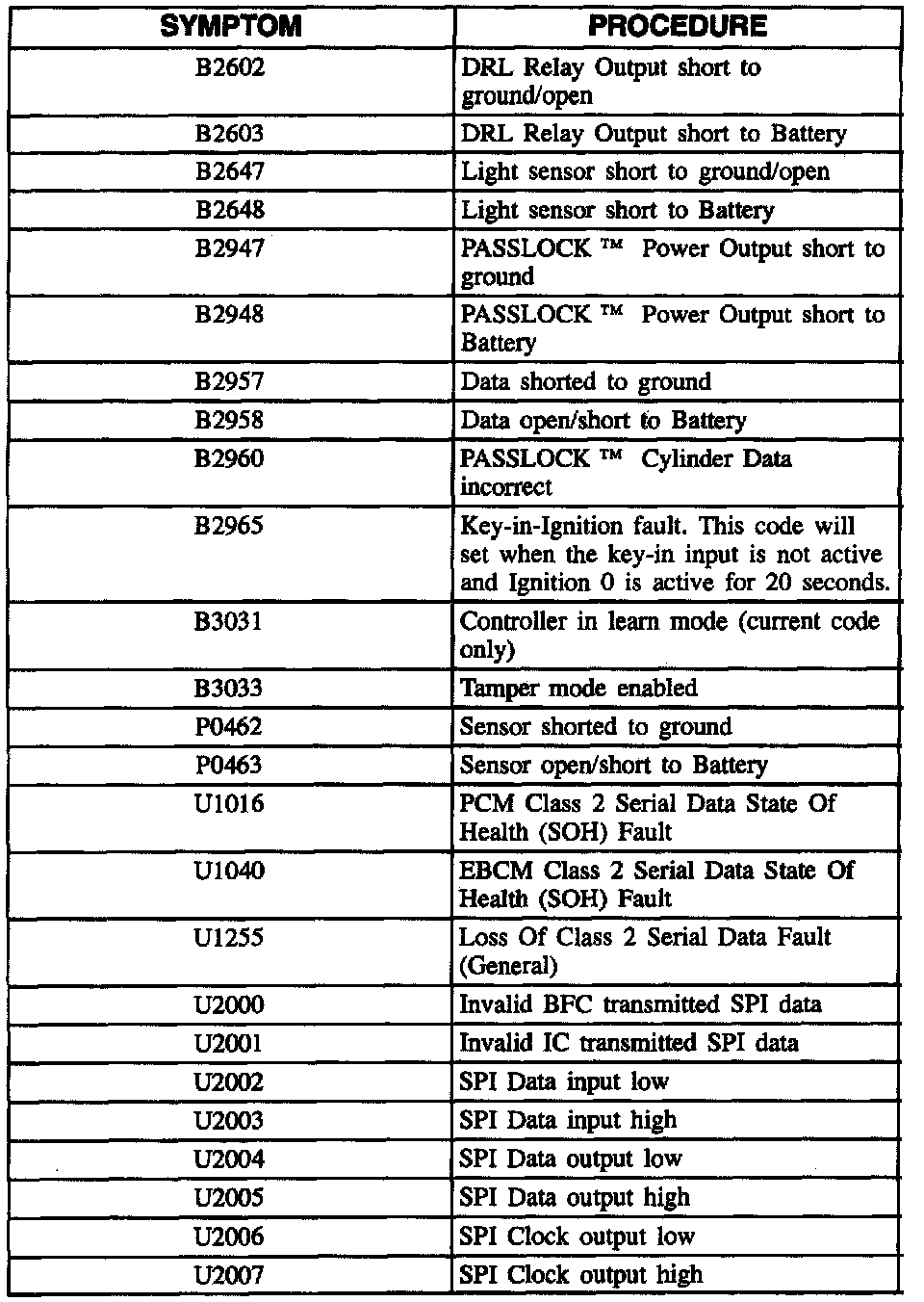

Diagnostic Chart:

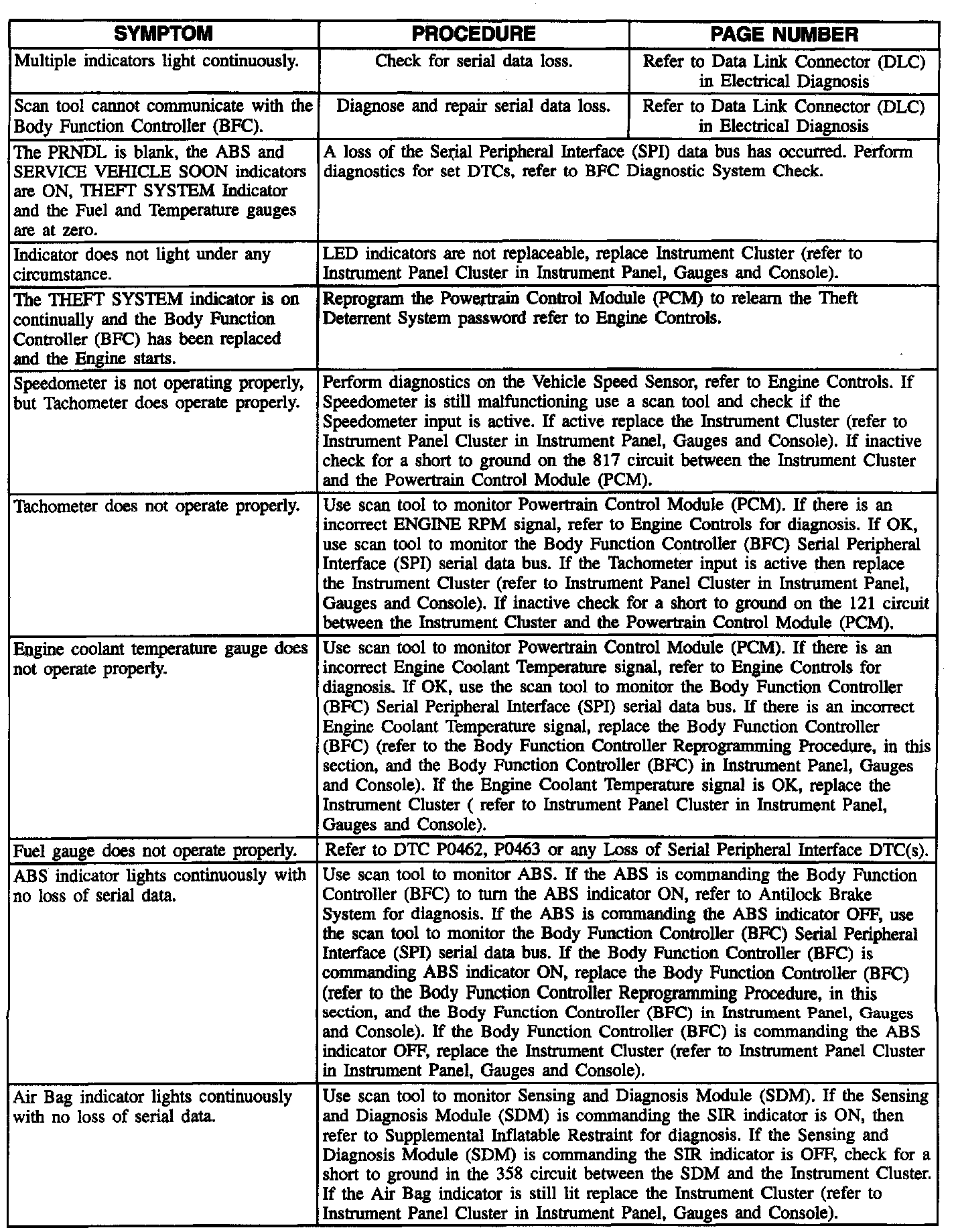

Diagnostic Chart:




Diagnostic Chart:




Diagnostic Chart:




Diagnostic Chart:






Most of the diagnostic charts for Instrument Panel are found under Body Function Controller. Testing and Inspection
