Composite Headlamp Replacement

Description:

Remove or Disconnect
1. Negative battery cable.

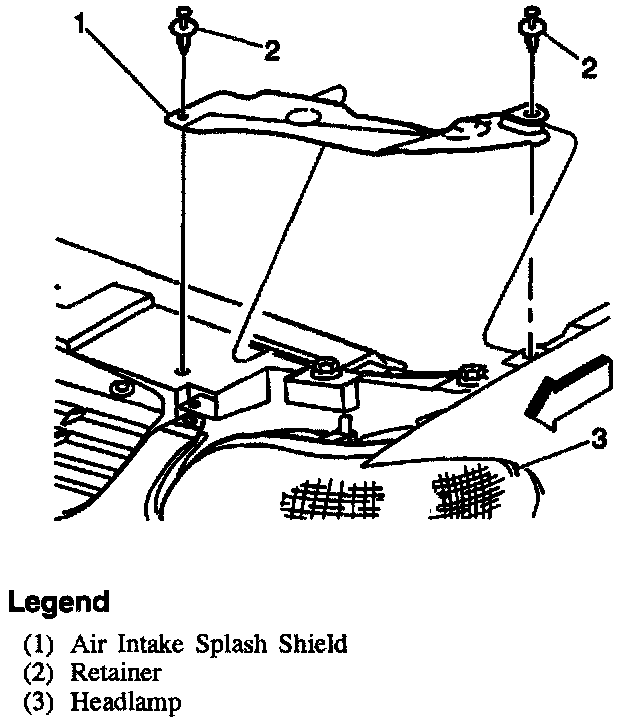

2. Splash shield.
3. Pull two sliding release tabs upward to release ball from socket.
4. Headlamp assembly from body mounting.

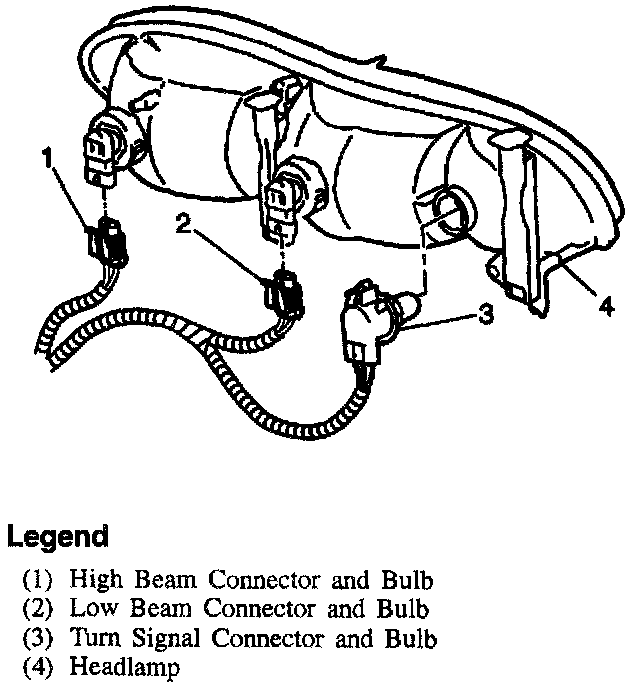

5. Socket/bulb from headlamp assembly.

Install or Connect
1. Socket/bulb into headlamp assembly.
2. Headlamp assembly into mounting position (ball and socket fitting).
3. Push down two sliding tabs to secure headlamp assembly into position.
4. Negative battery cable.
5. Splash shield.

Inspect
^ For proper operation.
