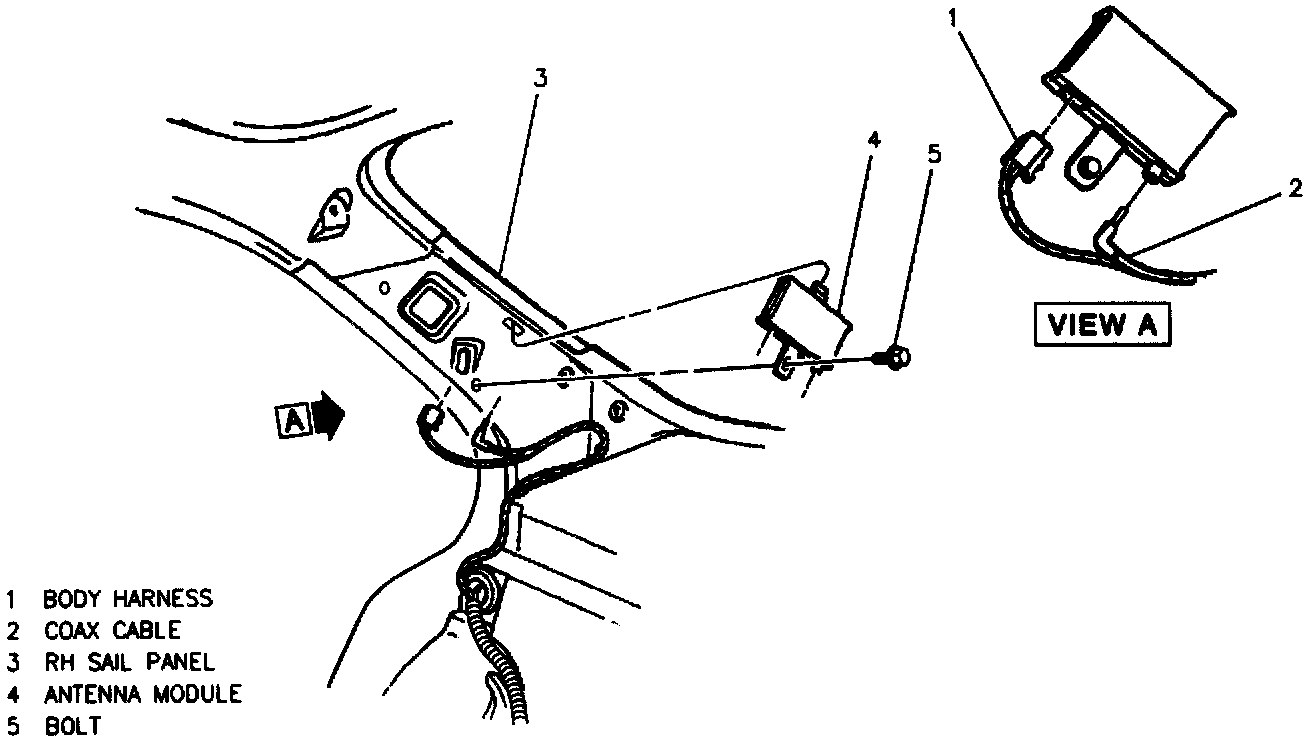

Backlight Antenna Module

Backlight Antenna Module:

REMOVE OR DISCONNECT
1. Right sail panel trim.
2. Body harness and antenna coax cable from module.
3. Bolt.
4. Disengage tab on module from slot in sail panel.

INSTALL OR CONNECT
1. Engage module tab in slot.
2. Rotate down to align hole for bolt.
3. Bolt.
4. Body harness and antenna coax cable.
5. Sail panel trim.
