Glove Compartment: Service and Repair

Description:

Remove or Disconnect
1. Open I/P compartment.

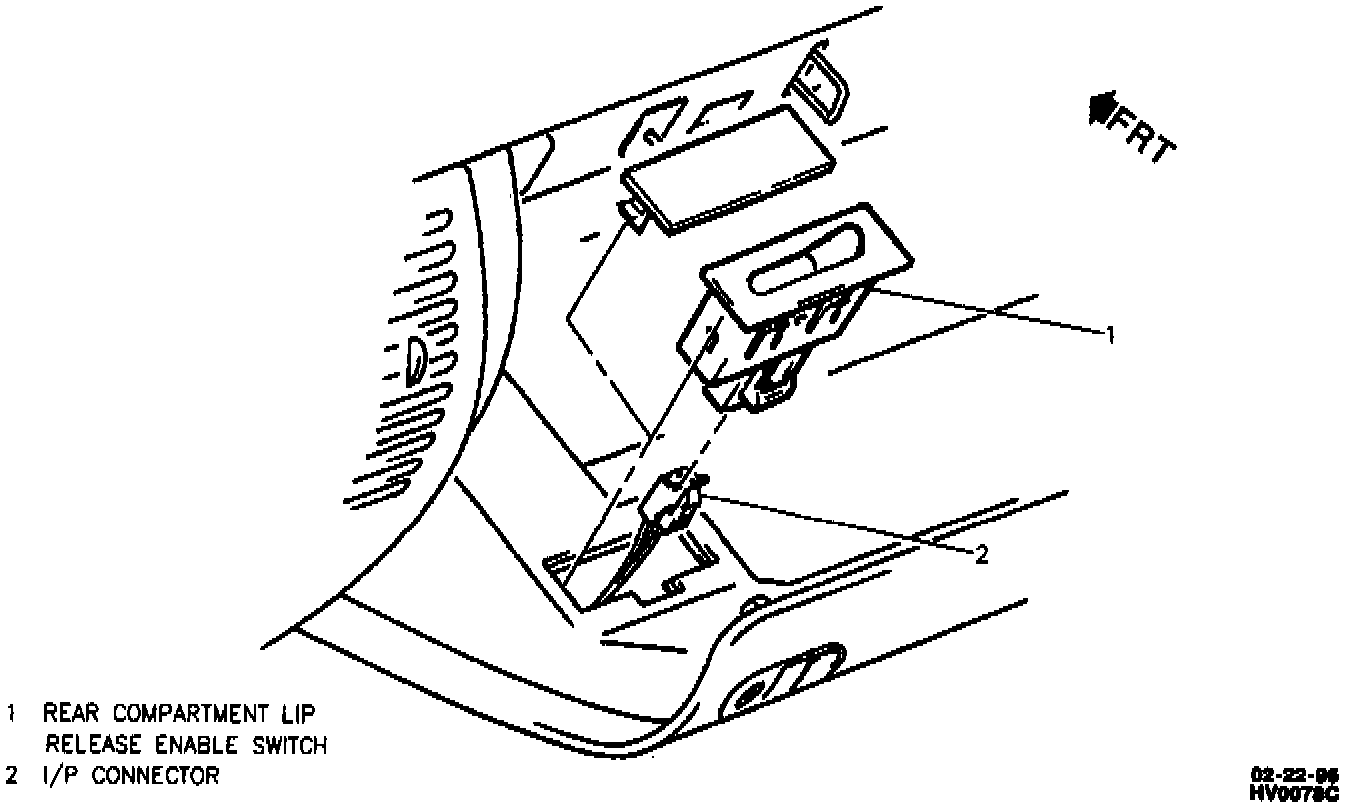

2. Carefully pry out valet trunk release switch.
3. Connector and switch if necessary.
4. Close I/P compartment.
5. Fasteners securing I/P compartment to I/P
6. I/P compartment by opening.

Install or Connect
1. I/P compartment.
2. Fasteners securing I/P compartment to I/P, (in closed position).

Tighten
^ Fasteners to 1.9 Nm (17 lb. in.).

3. Open I/P compartment.
4. Connector and valet trunk release switch if necessary.
5. Close I/P compartment.
