Door/Trunk Ajar Indicator/Lamp

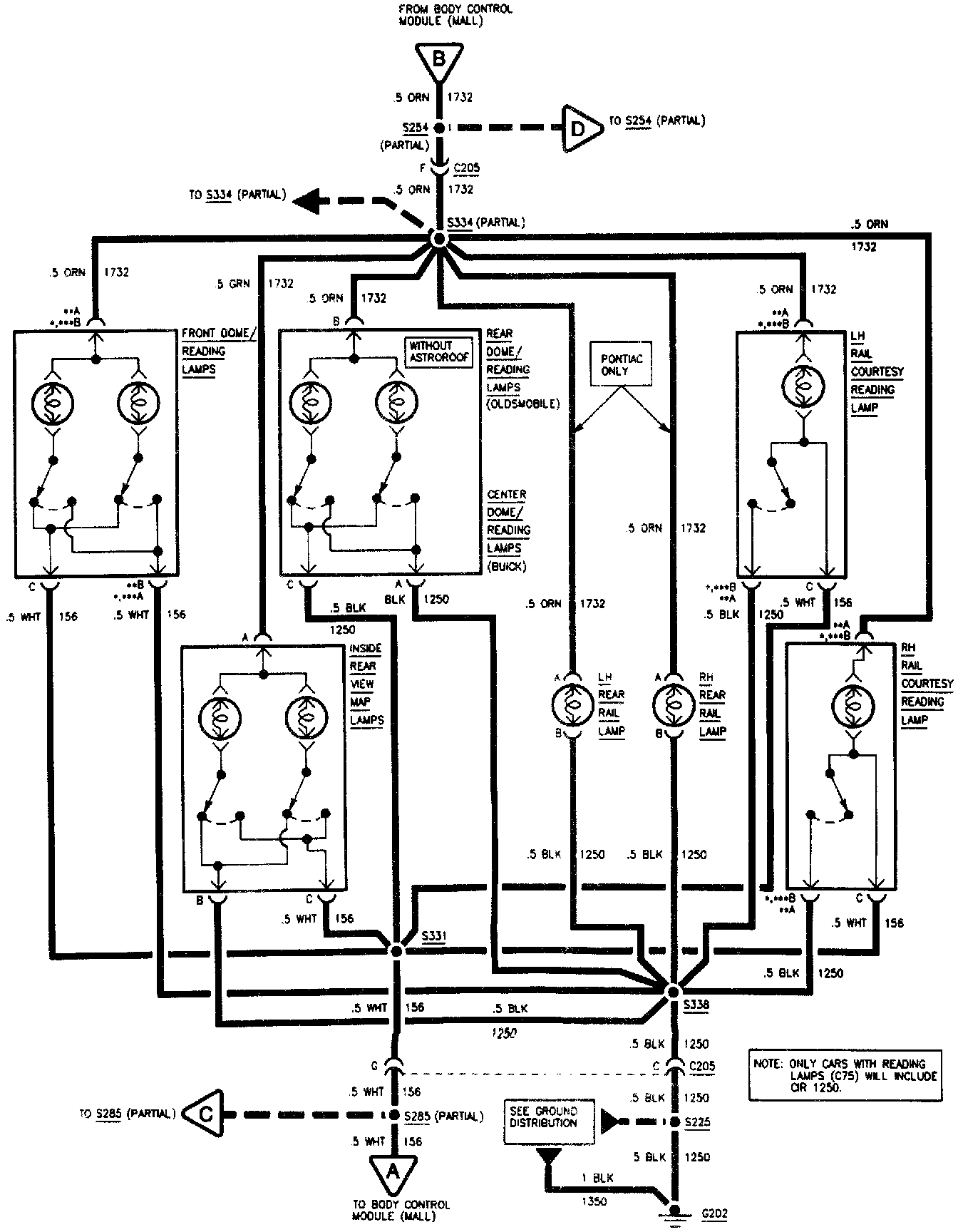

Courtesy/warning/Reading (Part 1 Of 2):

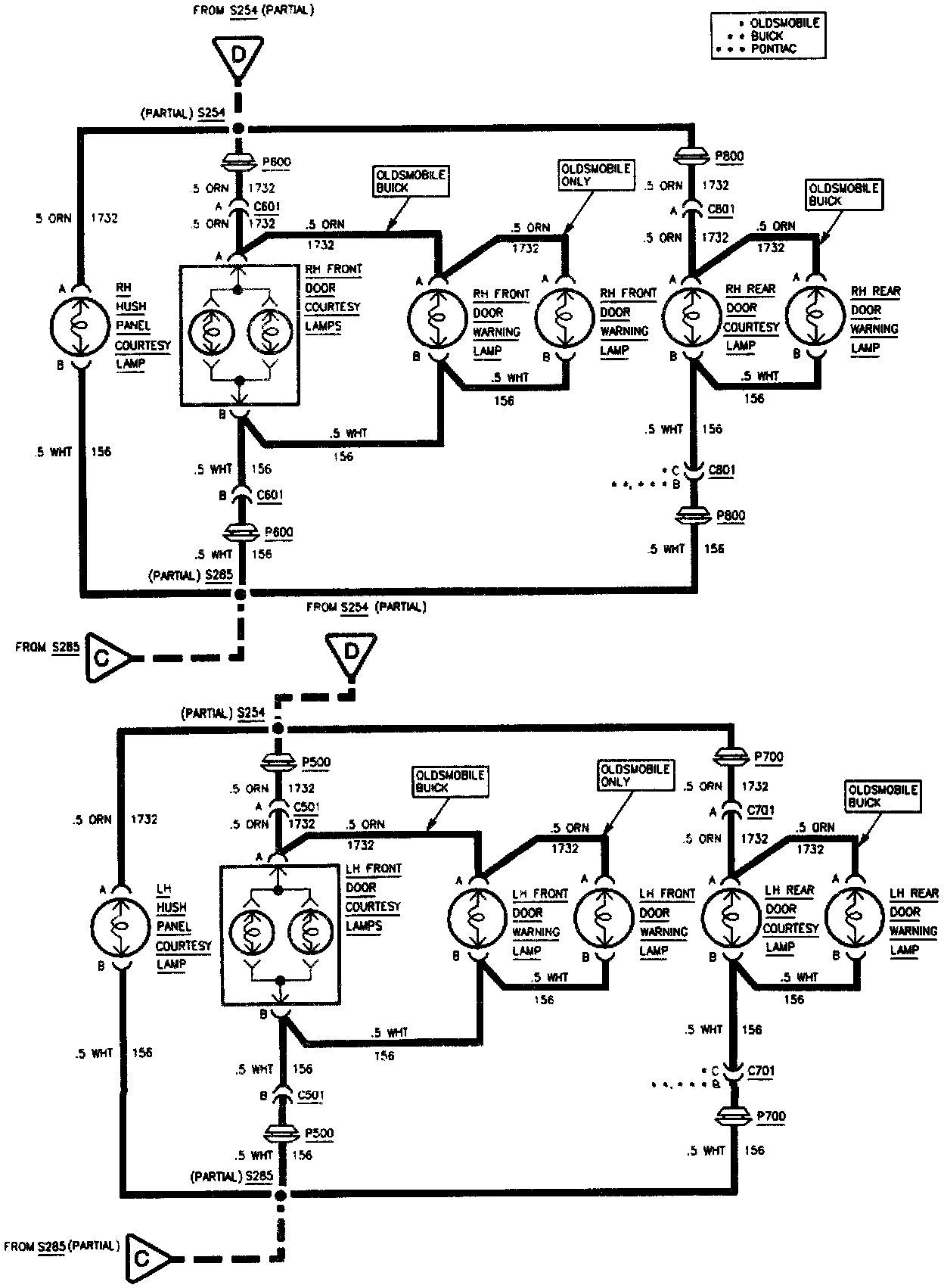

Courtesy/warning/Reading (Part 2 Of 2):

These Diagram(s) are part of the complete set of lighting diagrams located under Lighting and Horns/Interior Lamps. Refer to this area if you need to find the accompanying diagrams or for testing information. Electrical Diagrams
