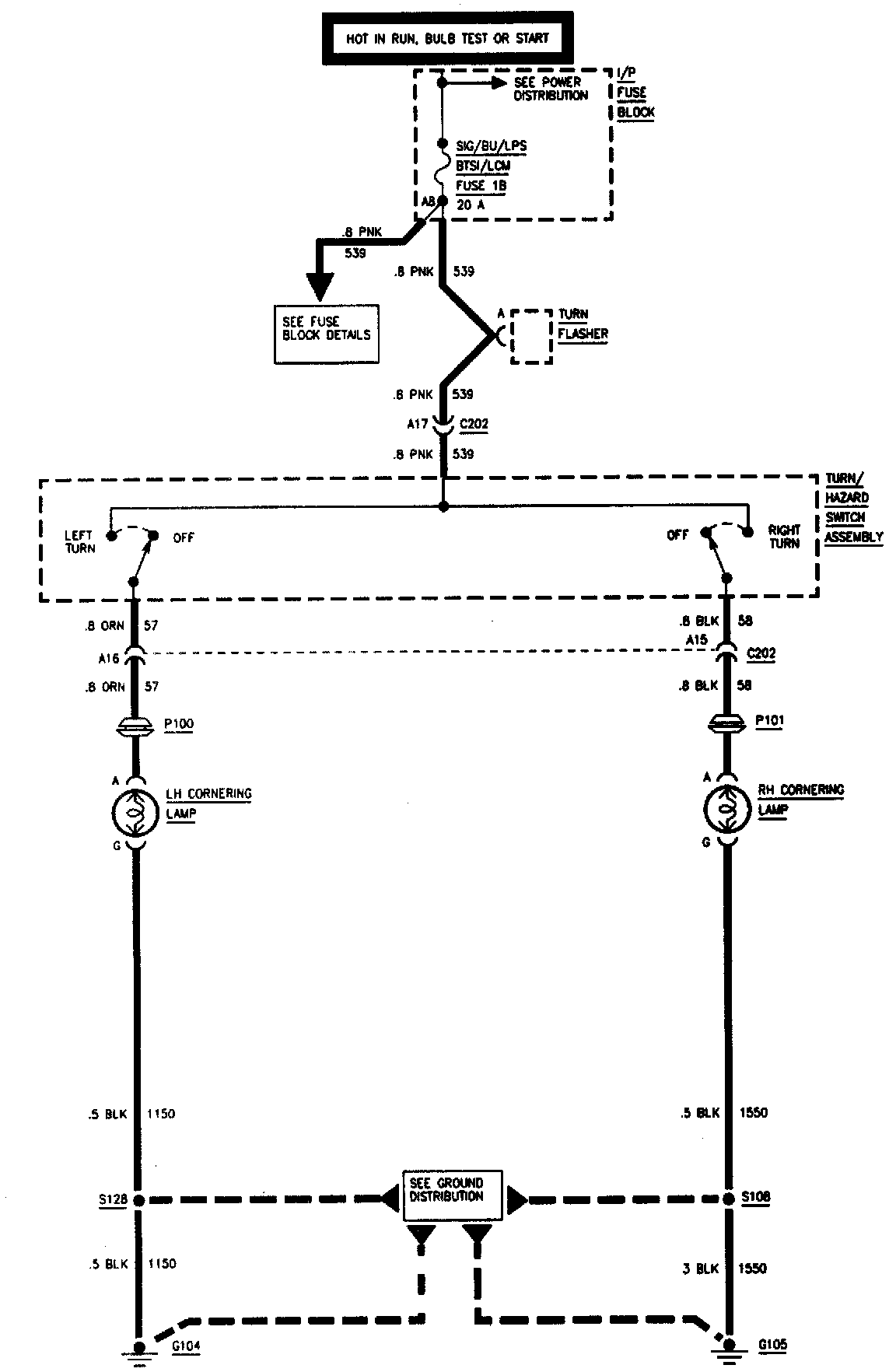

Cornering Lamp

Cornering Lamps:

This Diagram is part of the complete set of lighting diagrams located under Lighting and Horns/Exterior Lamps. Refer to this area if you need to find the accompanying diagrams or for testing information. Electrical Diagrams Testing and Inspection
