Operation CHARM: Car repair manuals for everyone.
Home >> Oldsmobile >> 1997 >> Eighty-Eight V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Heating and Air Conditioning >> Dual Zone Air Conditioning

Dual Zone Air Conditioning

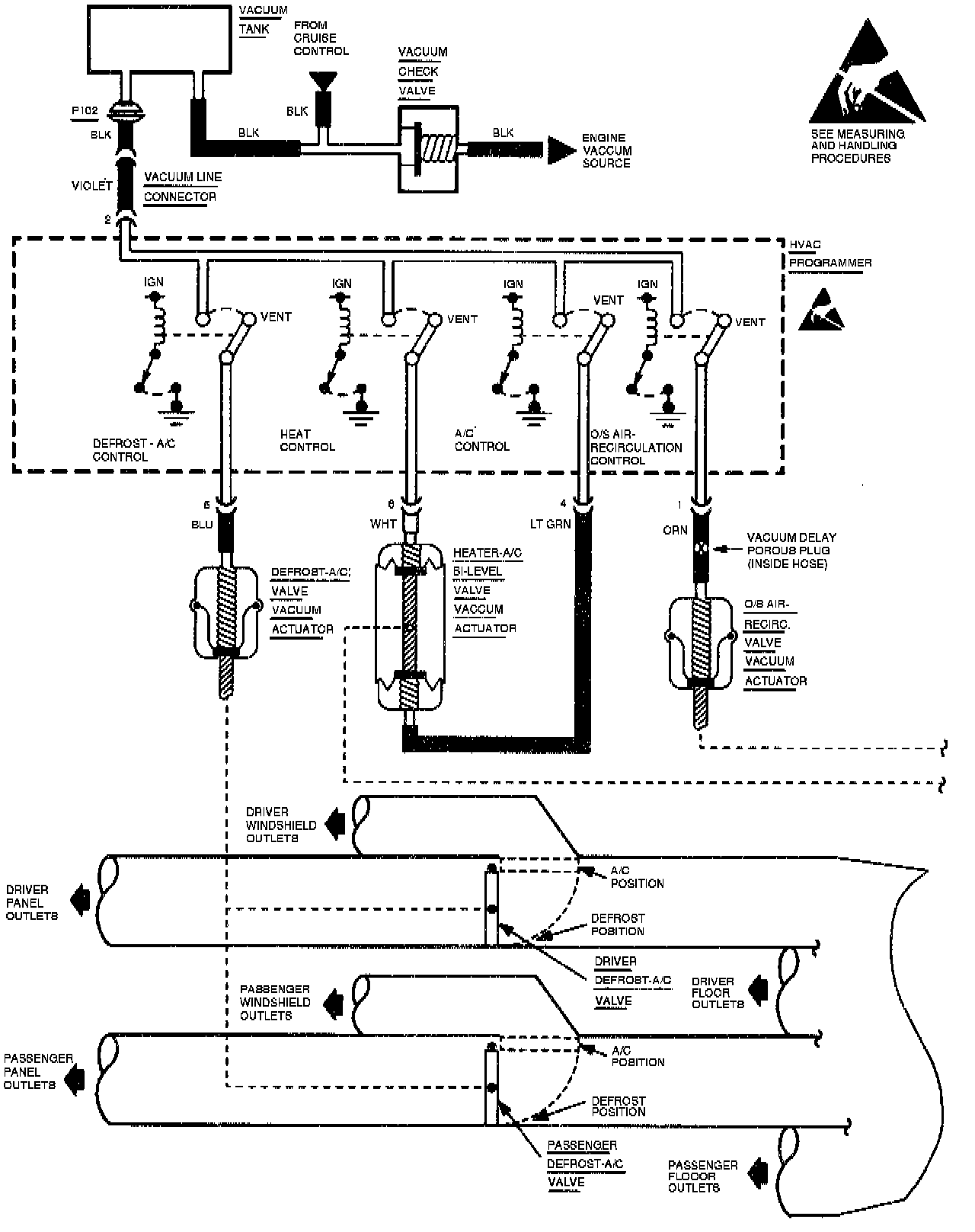

Air Delivery And Temperature Controls: Automatic:

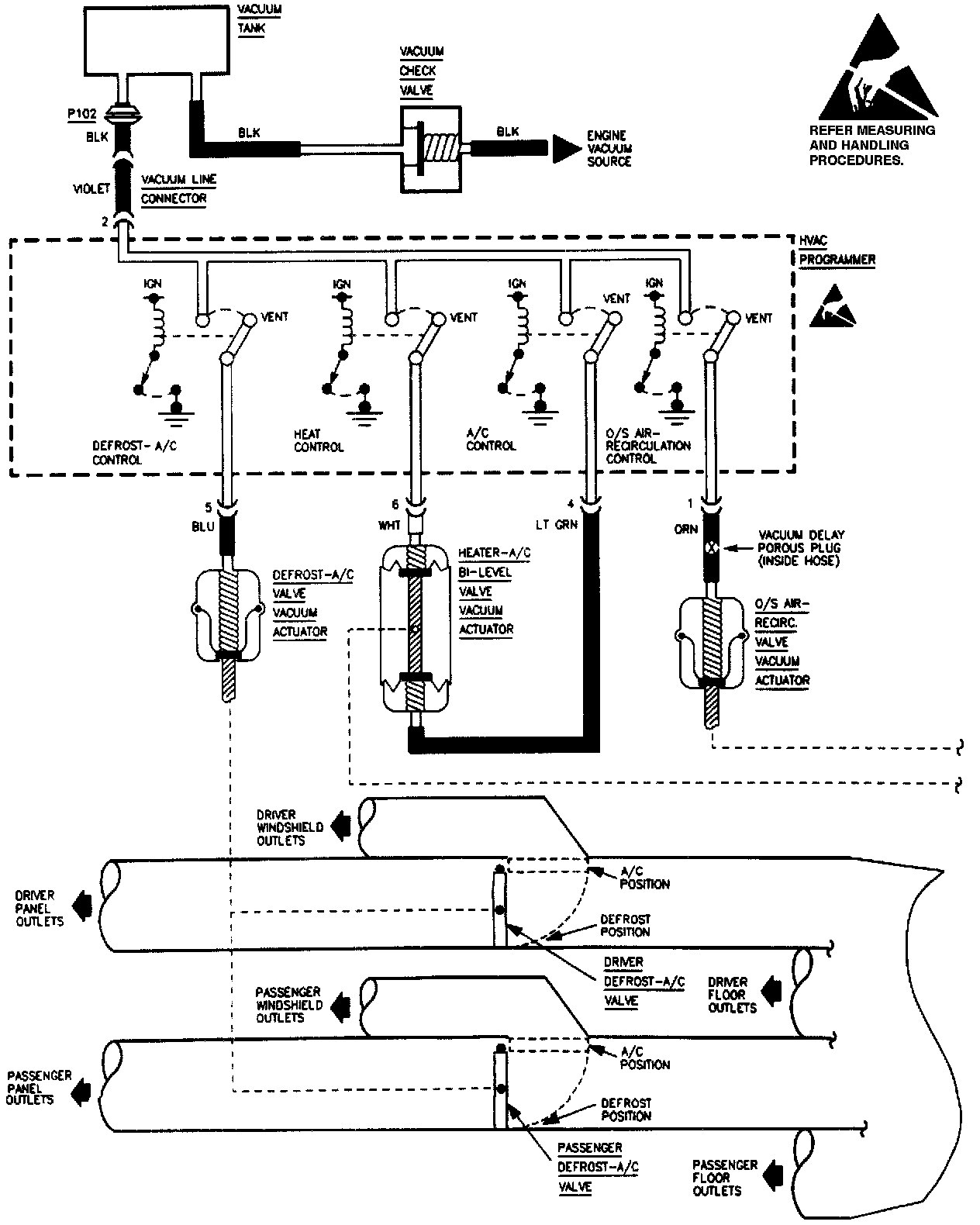

Air Delivery And Temperature Controls: Automatic:
