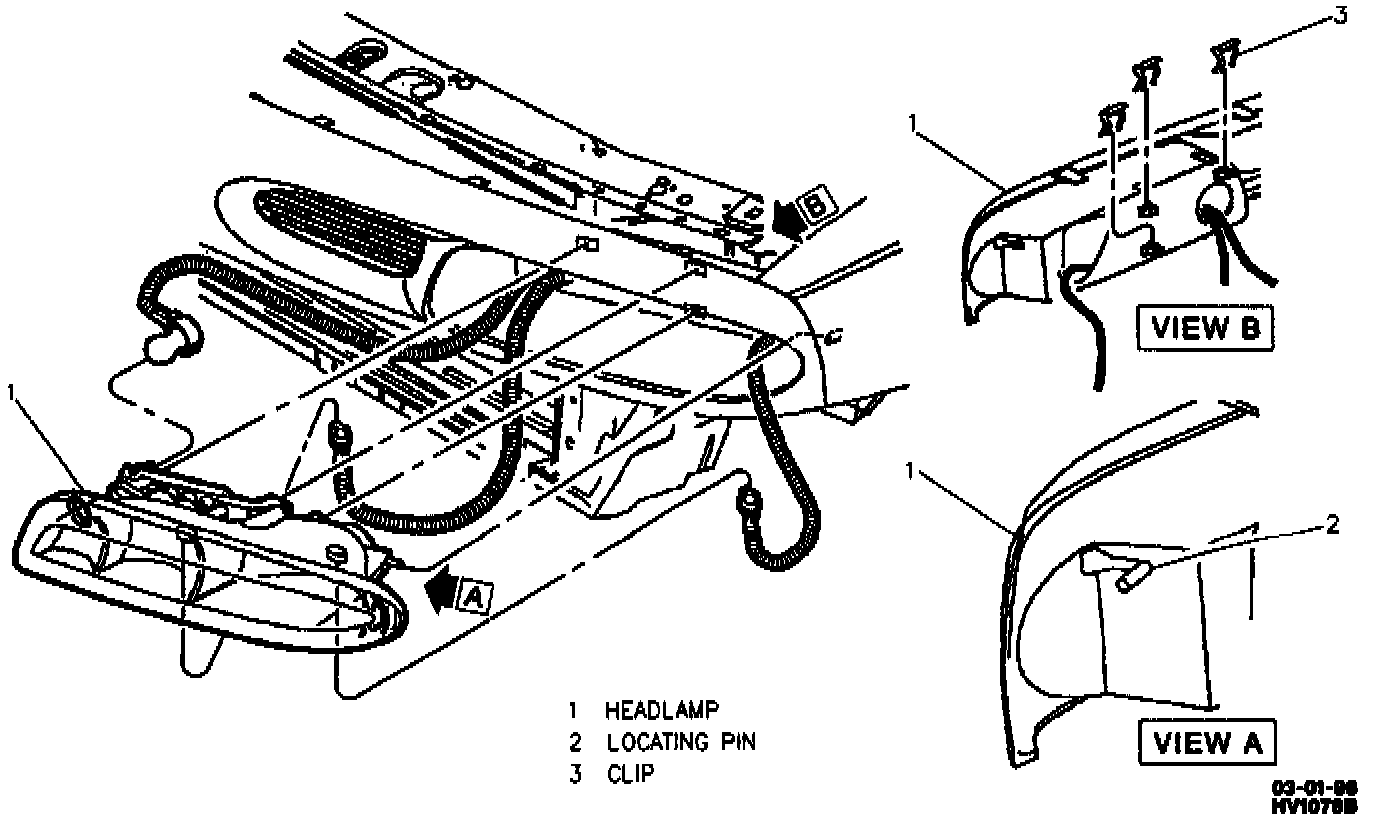

Headlamp: Service and Repair

Remove or Disconnect
1. Upper filler panel.
2. Headlamp retaining clips.
3. Connectors.
4. Headlamp.

Install or Connect
1. Connectors to headlamp.
2. Headlamp.
3. Headlamp retaining clips.
4. Upper filler panel.
