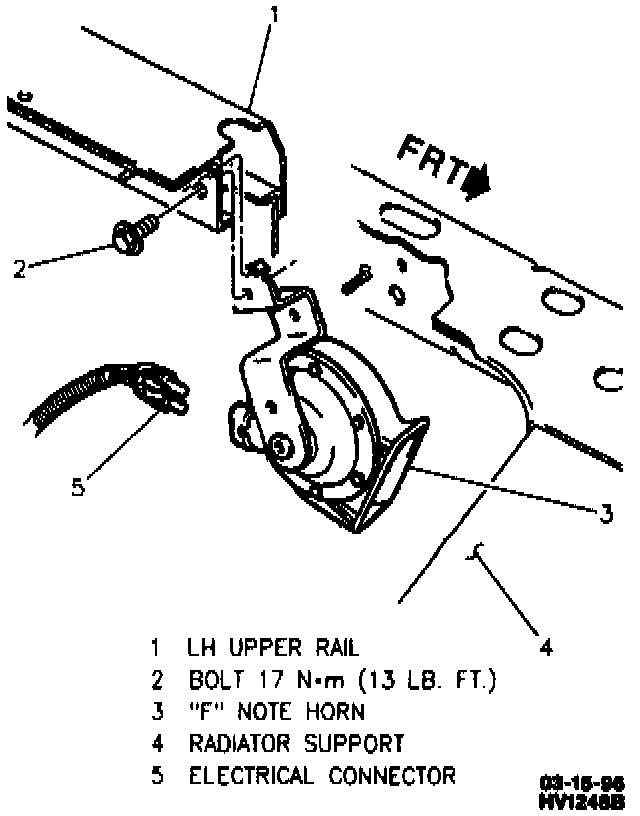

"F" Note Horn

Description:

Remove or Disconnect
1. Horn bolt to front fender.
2. Horn.
3. Connector.

Install or Connect
1. Connector to horn.
2. Horn to fender.
3. Horn bolt to front fender.

Tighten
^ Bolt to 17 Nm (13 lb. ft.).
