Wiper Motor Cover Replacement

Description:

Remove or Disconnect
1. Electrical connectors from cover assembly (14) and wiper motor assembly (15).
2. Three screws (13).
3. Cover assembly (14).

Install or Connect
1. Cover assembly (14).

Important

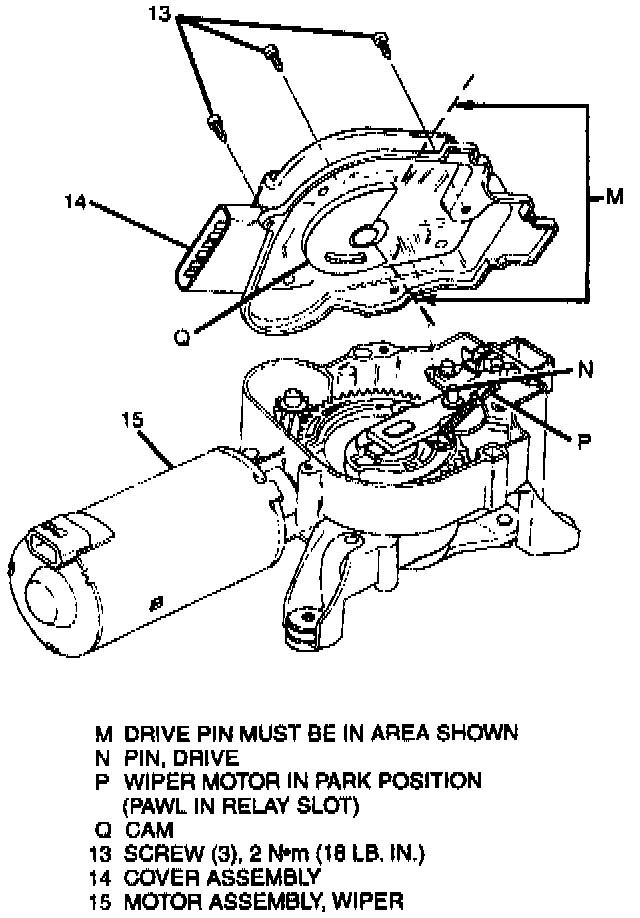

^ Always install cover assembly with wiper motor assembly (15) in park position (P) and drive pin (N) in the open area of the cam (Q).

2. Three screws (13).

Tighten
^ Screws (13) to 2 Nm (18 lb. in.).

3. Electrical connectors to cover assembly (14) and wiper motor assembly (15).
