Antilock Brakes / Traction Control Systems: Tools and Equipment

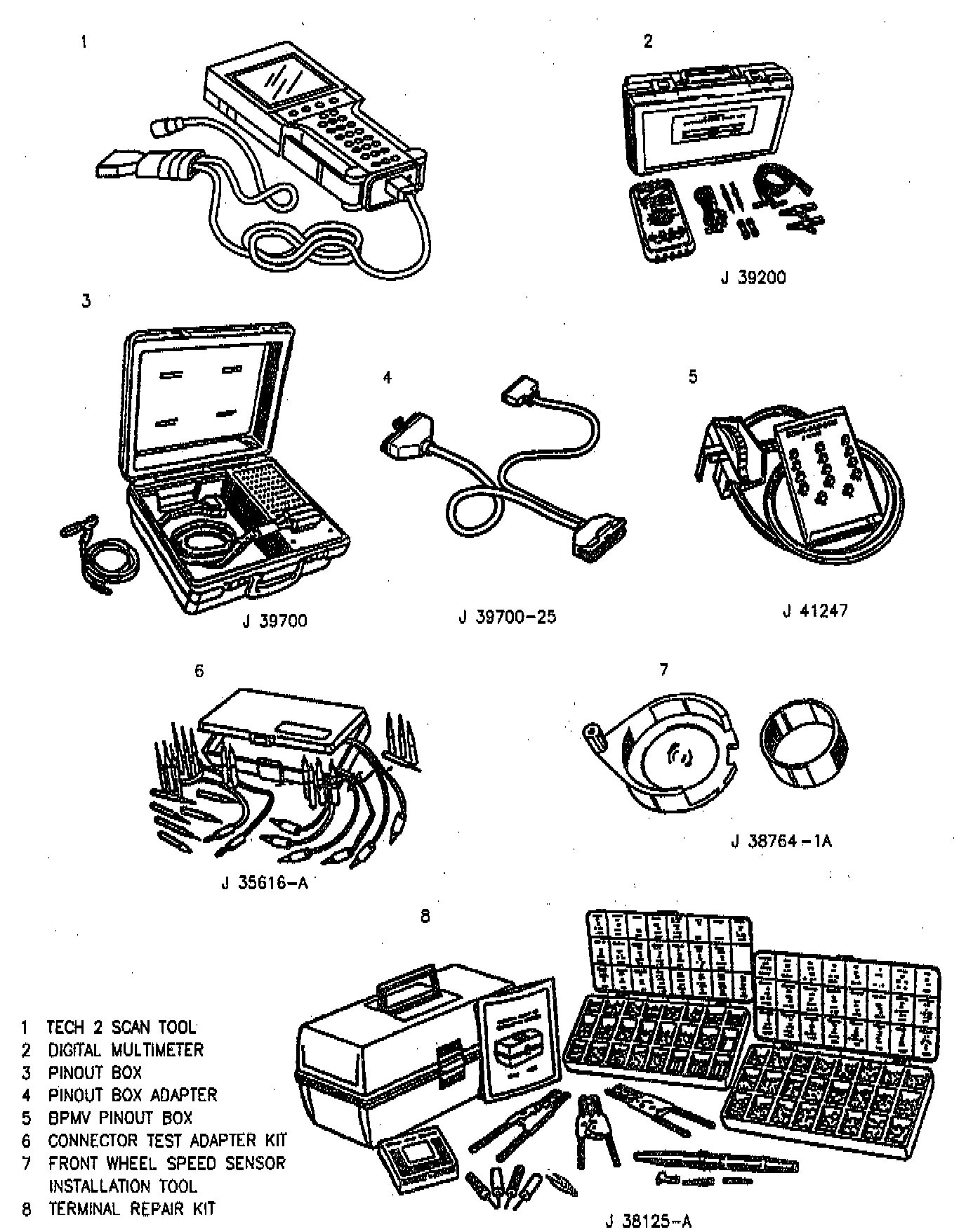

SPECIAL TOOLS
J 39700
The J 39700 Universal Pinout Box must be used with the J 39700-25 Bosch Adapter Cable. Always connect the J 39700 assembly to the vehicle harness and/or EBCM/EBTCM as directed by the diagnostic table. Ensure the ignition is "OFF" when connecting or disconnecting the J 39700.

J 41247
The J 41247 is a Pinout box that is connected to the BPMV with the EBCM/EBTCM removed. It is used with the J 39200 Digital Multimeter to measure resistance values of the solenoid valves located in the BPMV.

J 38764-1A
The J 38764-1A is the kit that includes all three tools required to install both pre 1995 and post 1995 front wheel speed sensors. The J 38764-1 is used for the pre 1995 wheel speed sensor instillation. The J 38764-4 is used for post 1995 wheel speed sensor instillation. And the J 38764-2 is used to protect the wheel stud's from damage during wheel speed sensor instillation.

WARNING: Never use the J 39700, J 39700-25, or the J 41247 for any circuit testing except that specified in the diagnostic table. ABS/TCS system or component damage, other vehicle system or component damage, or damage to the J 39700 may result.
