Home >> Oldsmobile >> 1997 >> LSS V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> HVAC Passenger Controller

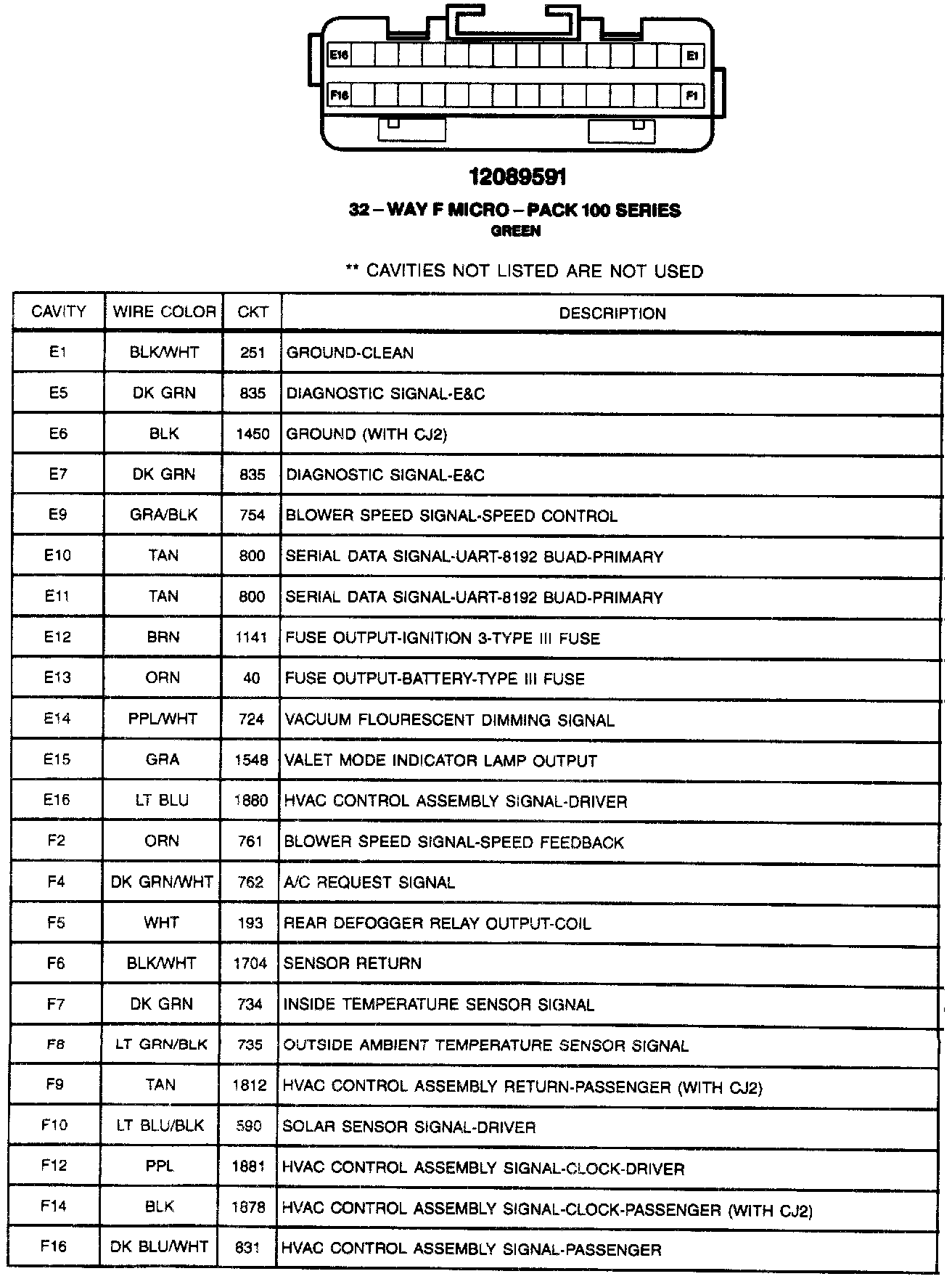

HVAC Passenger Controller

HVAC Programmer CONN: C2:
