Audible Warning Device Control Module

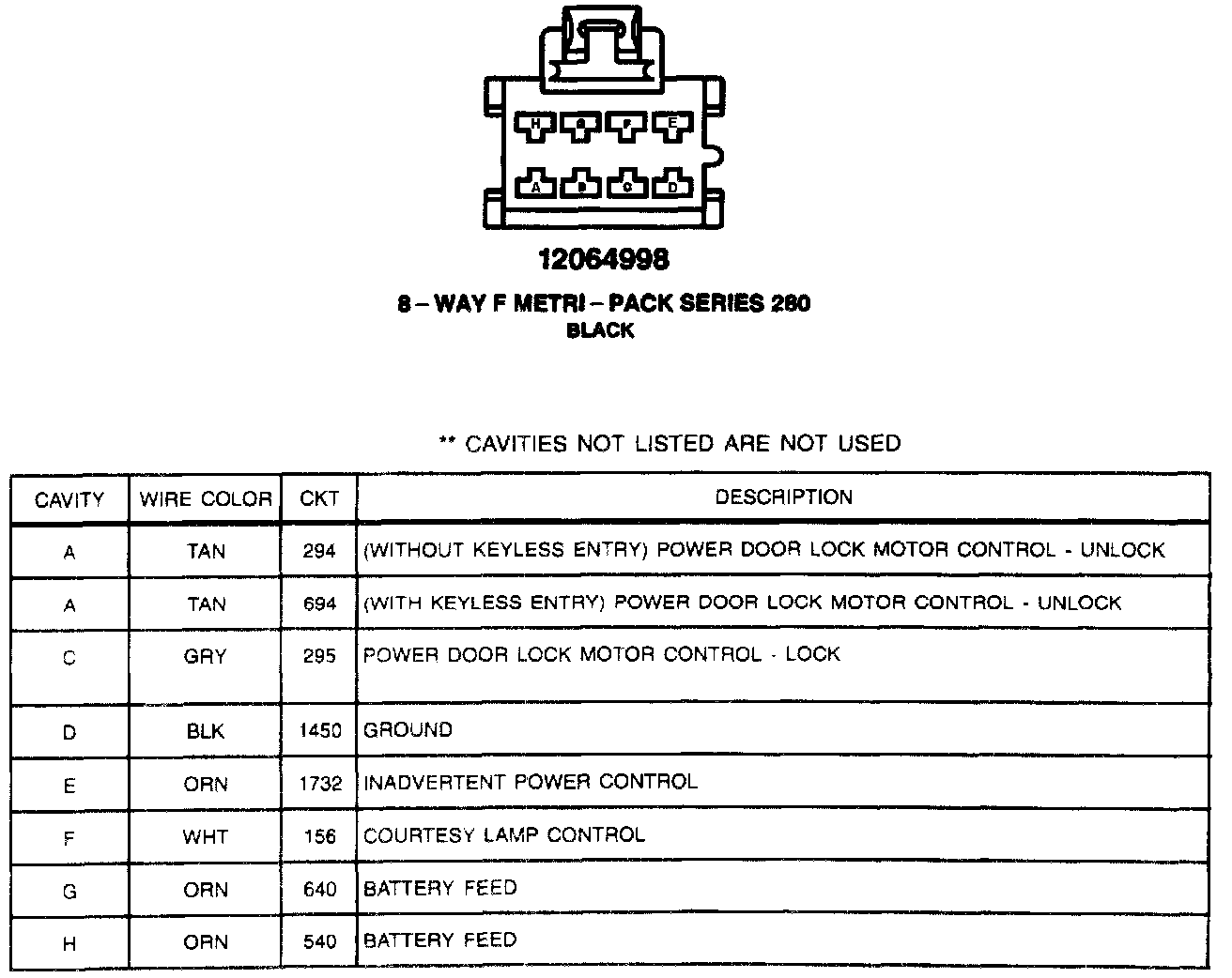

Body Control Module (MALL) CONN: C1:

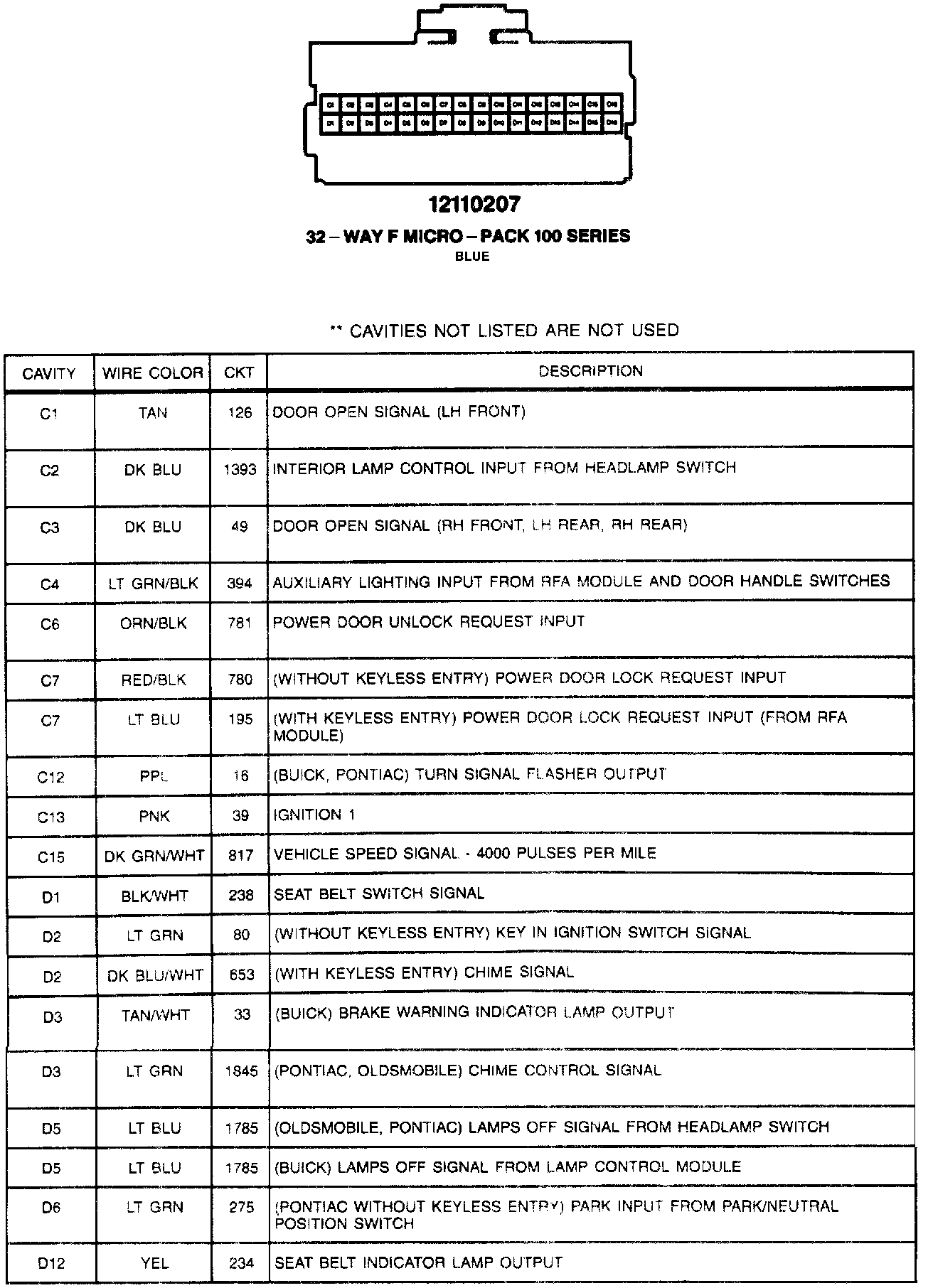

Body Control Module (MALL) CONN: C2:
