Compressor Replacement

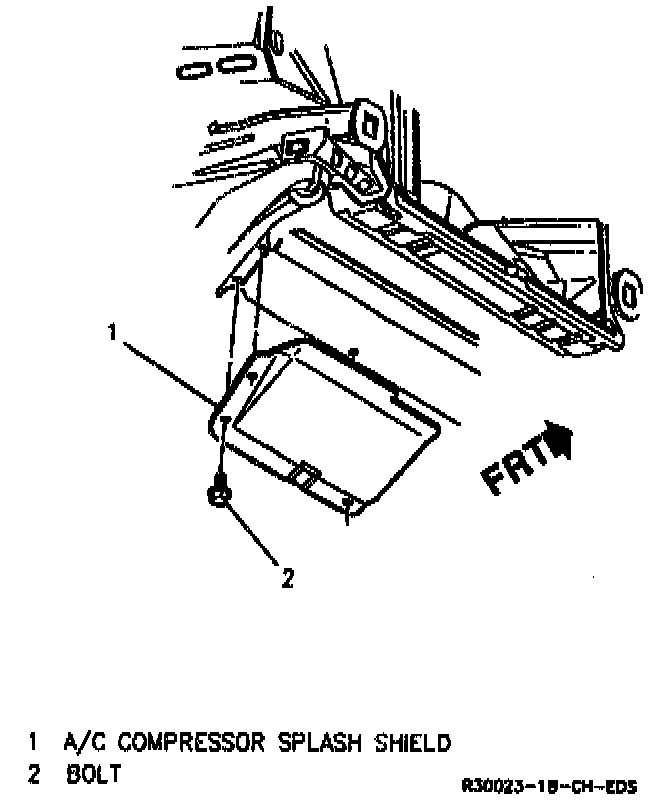

A/C Compressor Shaft Shield:

Compressor Mounting:

Remove or Disconnect

^ Recover refrigerant.
1. Accessory drive belt.
2. Raise and support vehicle.
3. A/C compressor splash shield
4. Transmission oil cooler line bracket.
5. A/C suction/discharge hose retaining bolt.
6. Front A/C compressor mounting nuts and rear mounting bolt.
7. A/C compressor.

Install or Connect

1. A/C compressor.

Tighten
^ Compressor mounting nuts 50 N.m (37 lb. ft.).
^ Compressor mounting bolt 100 N.m (74 lb. ft).

2. A/C suction/discharge hose retaining bolt

Tighten
^ Suction/Discharge hose Bolt 30 N.m (22 lb. ft.).

3. Transmission oil cooler line bracket.
4. A/C compressor splash shield.

Tighten
^ Splash shield bolts 10 N.m (89 lb. in.).

5. Lower vehicle.
6. Accessory drive belt.
