Blade Assembly Mounting Angle Check

Description:

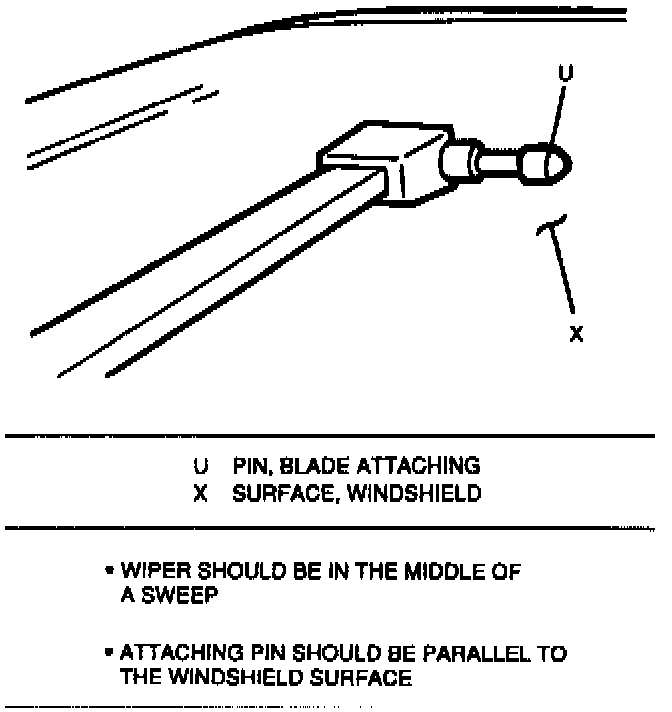

With the wiper arm and blade assemblies in the middle of a wipe stroke, remove the wiper blade assemblies and visually check that the blade assembly attaching pin (U) on each wiper arm is parallel to the windshield (X). Replace the wiper arm assembly if necessary.
