Keyless Entry Receiver

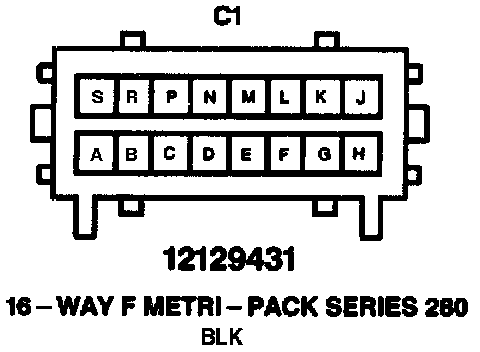

Remote Control Door Lock Receiver C1:

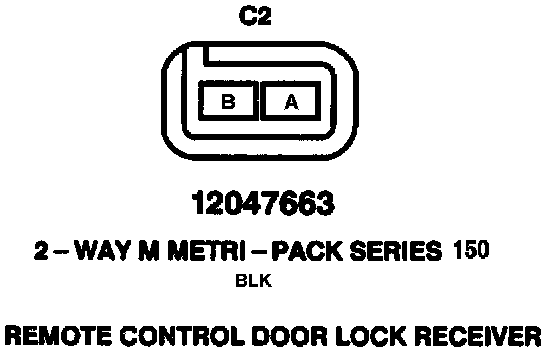

Remote Control Door Lock Receiver C2:



Remote Control Door Lock Receiver C1 (Part 1 Of 2):

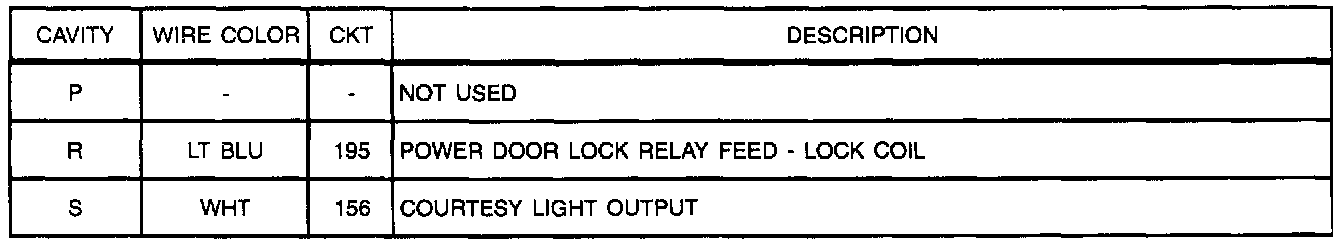

Remote Control Door Lock Receiver C1 (Part 2 Of 2):

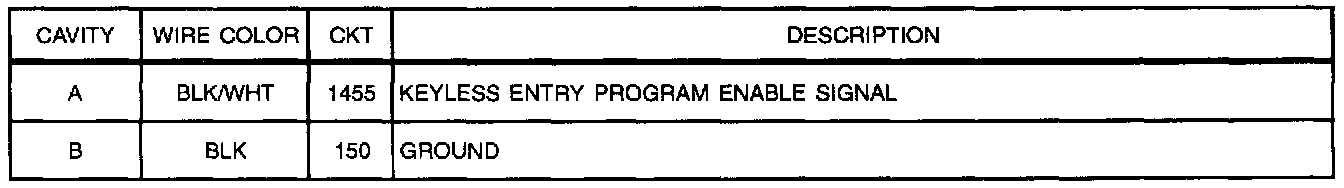

Remote Control Door Lock Receiver C2:
