Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
Keyless Entry

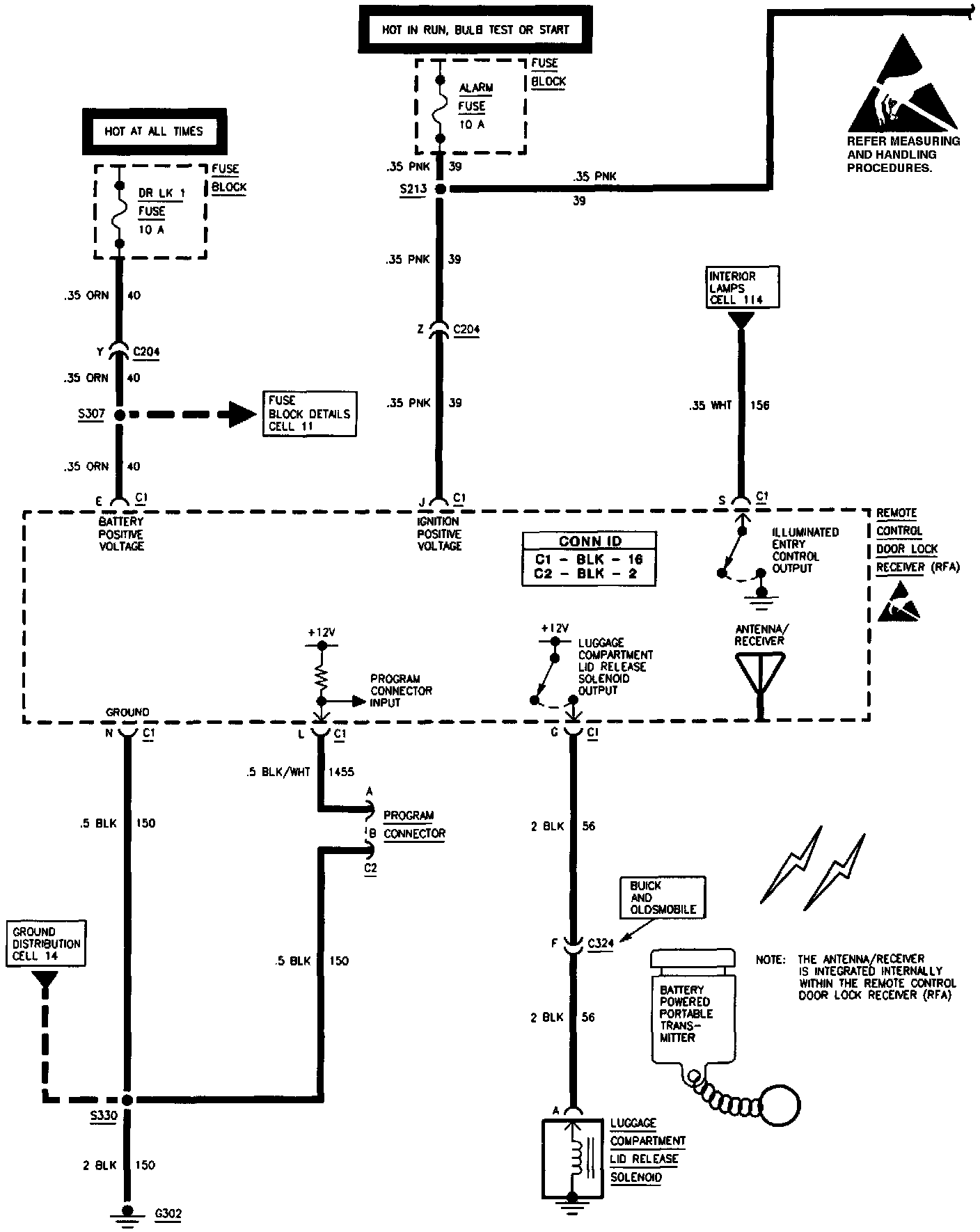

Keyless Entry (Part 1 Of 4):

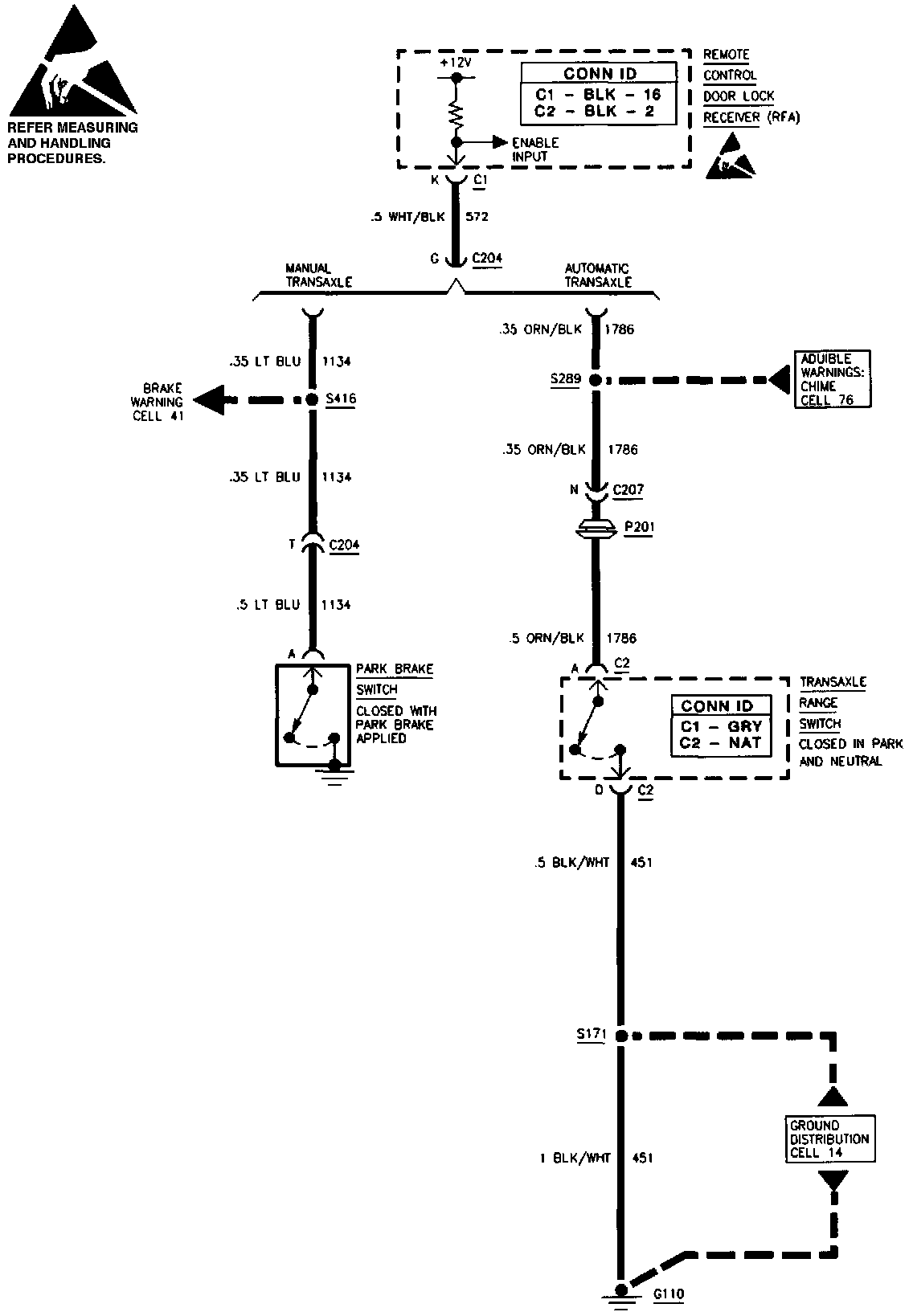

Keyless Entry (Part 2 Of 4):

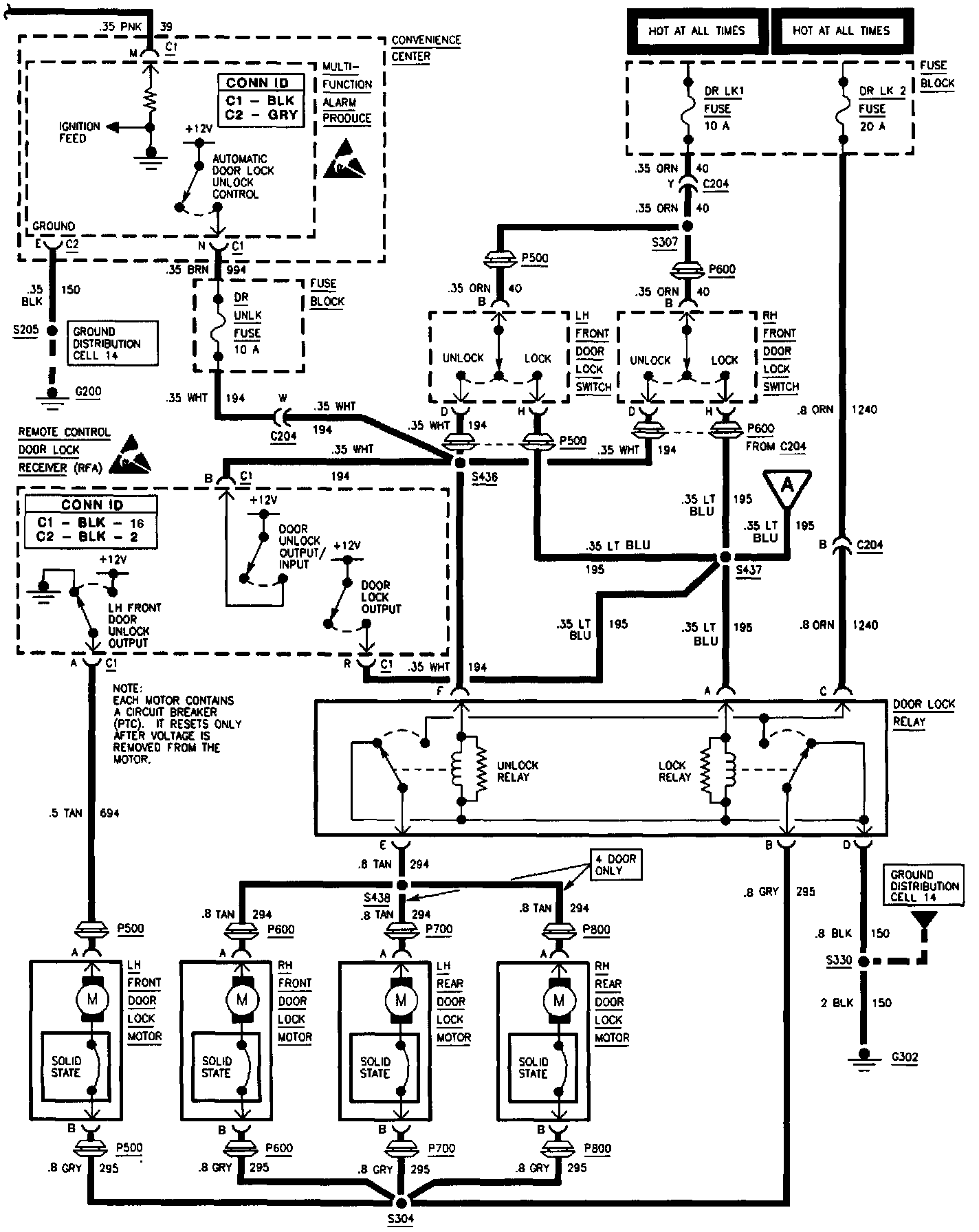

Keyless Entry (Part 3 Of 4):

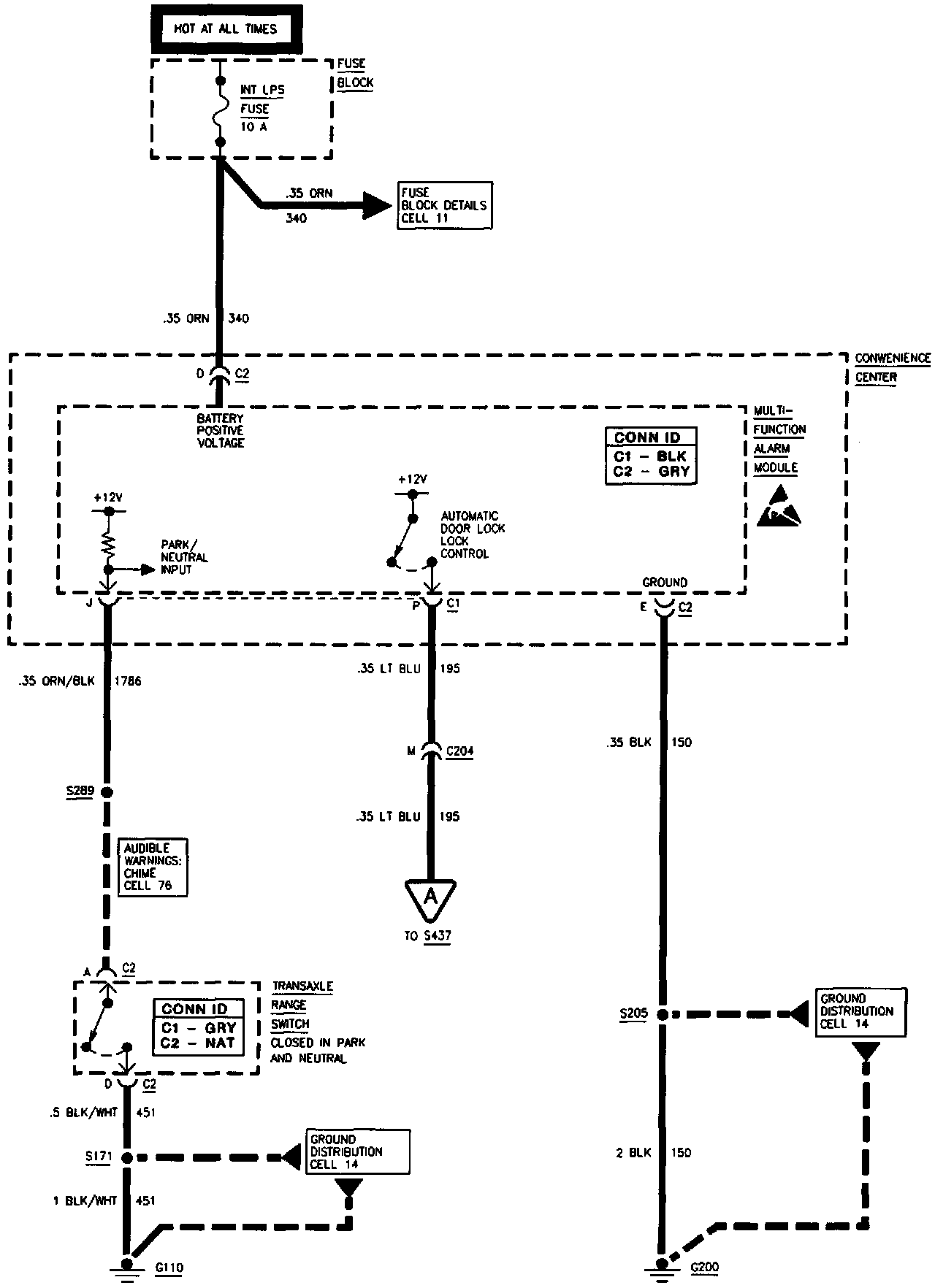

Keyless Entry (Part 4 Of 4):
