Antilock Brakes / Traction Control Systems

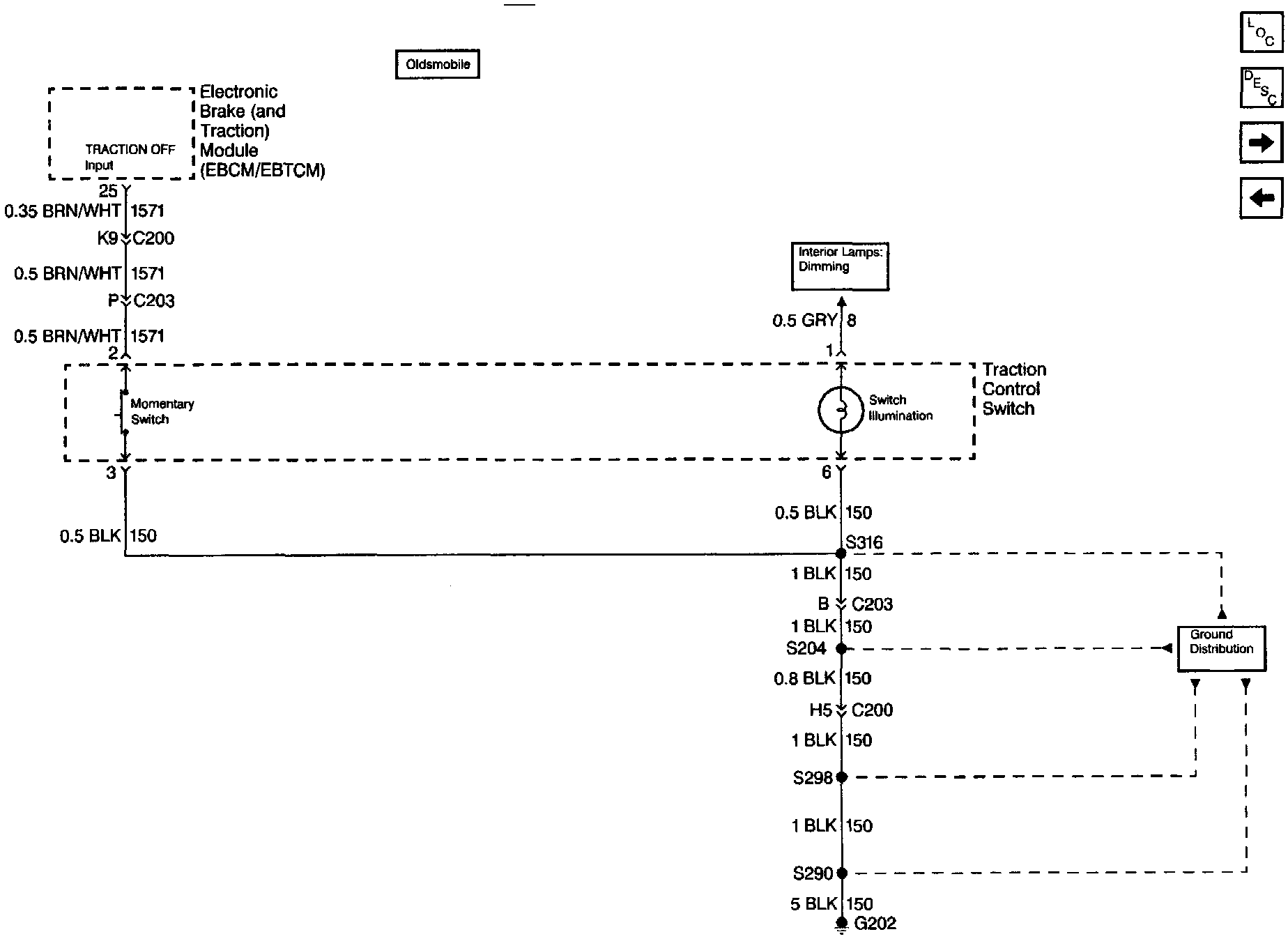

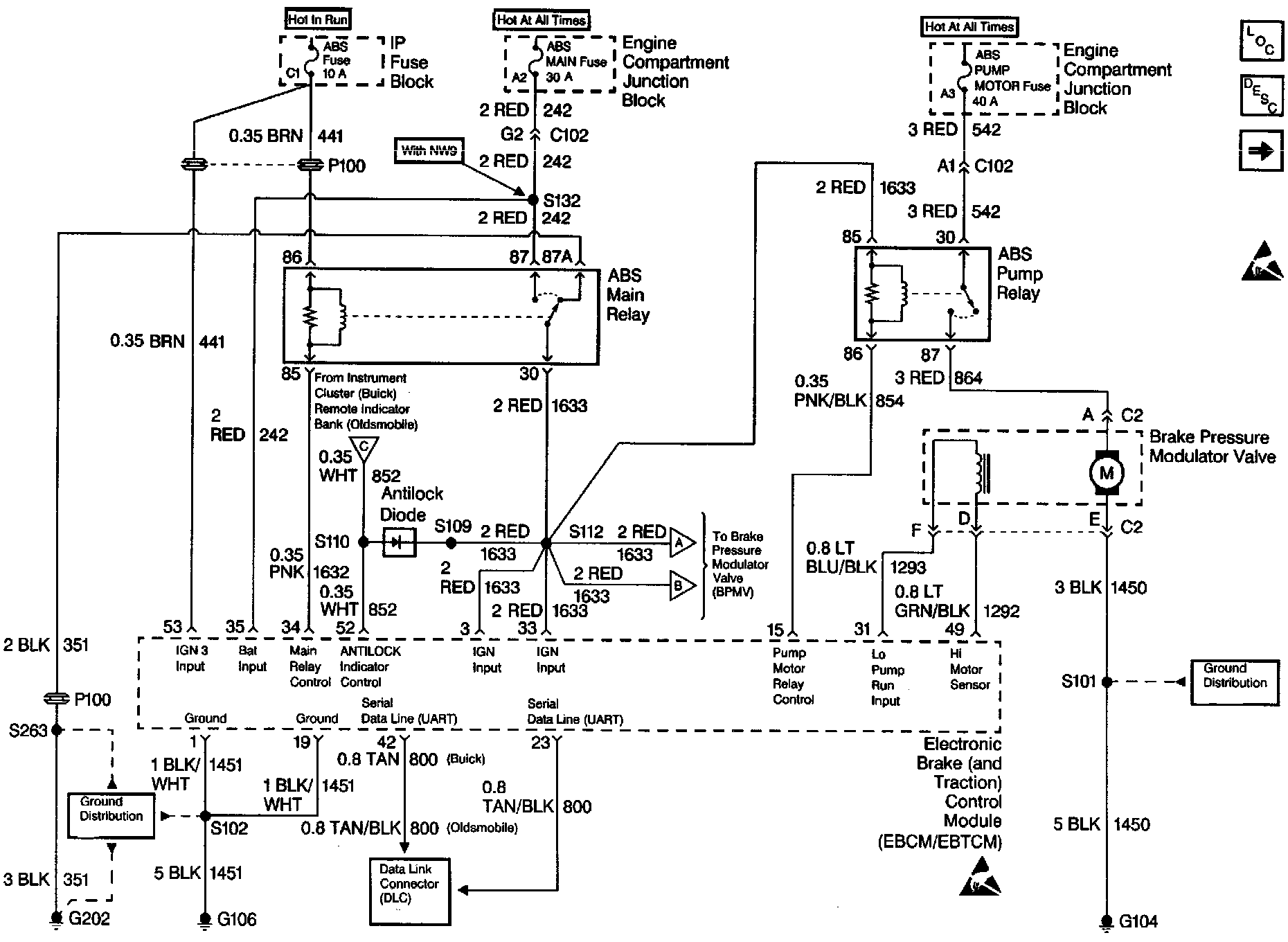

Power And Grounds:

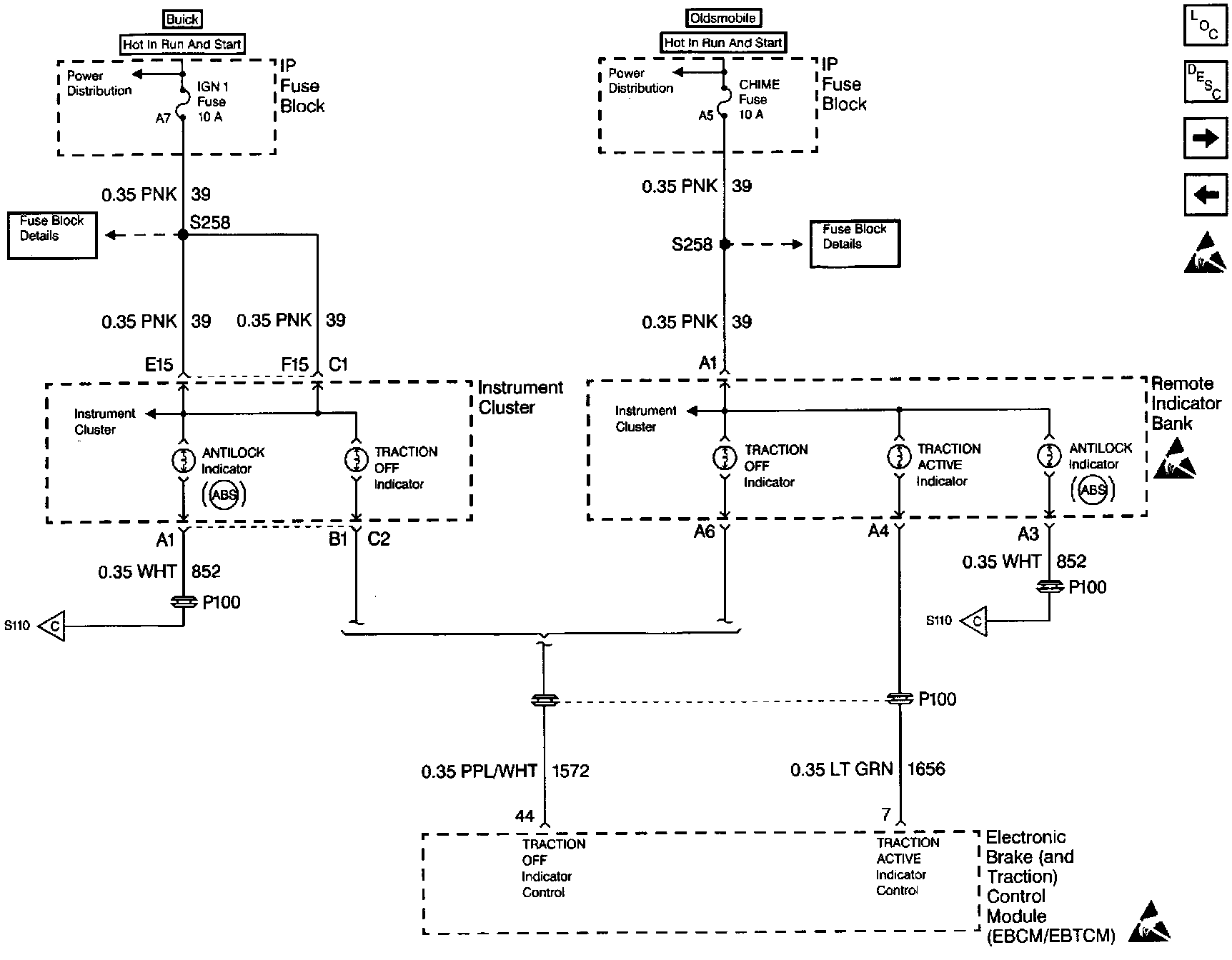

Power And Indicators:



Power And Speed Sensors:



Module And Ground:



Modules:
