Home >> Oldsmobile >> 1998 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Safety Switch/Connector >> Driver's Safing Connector

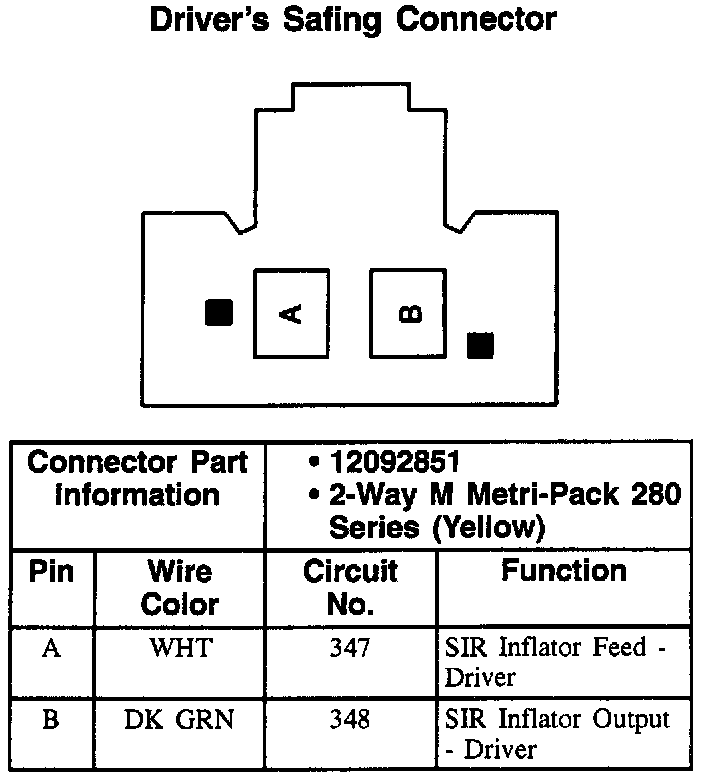

Driver's Safing Connector

Driver's Safing Connector:
