Home >> Oldsmobile >> 1998 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> C1

C1

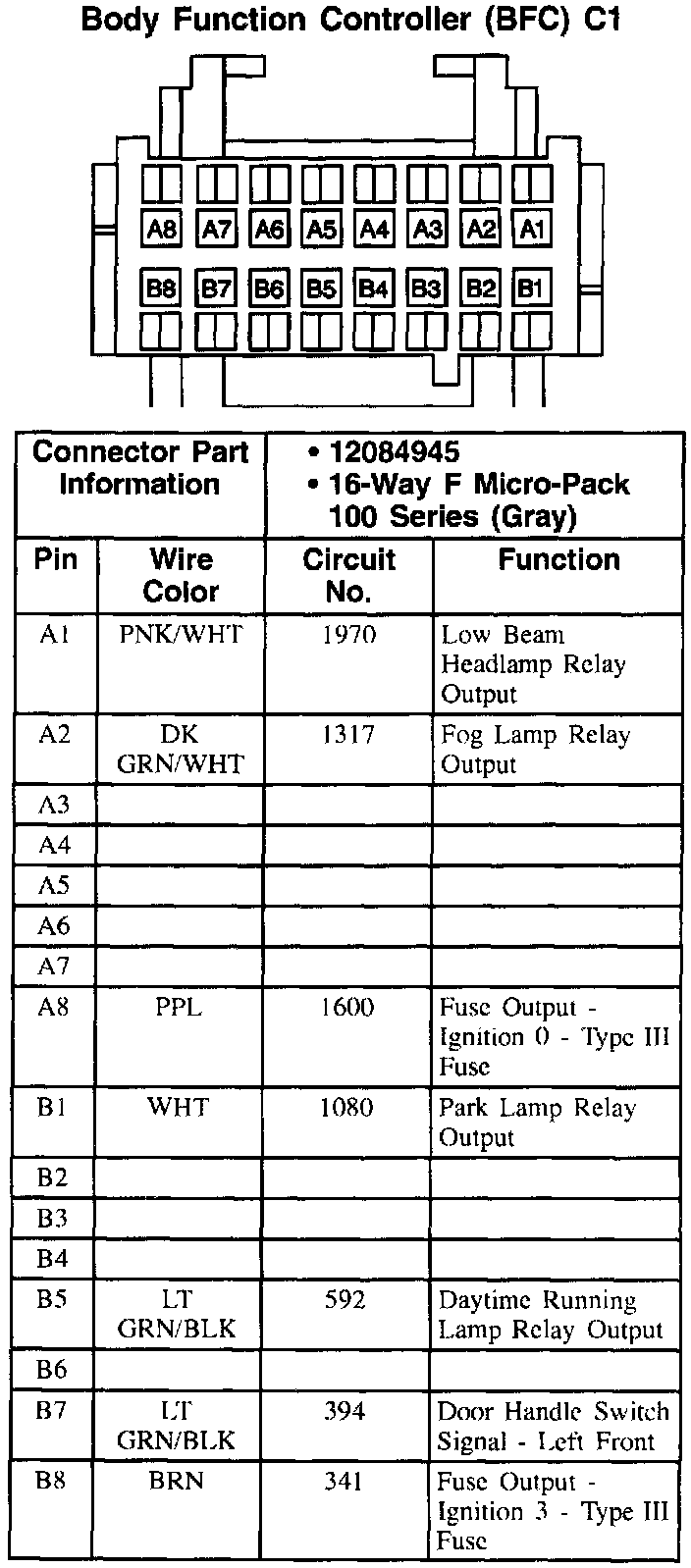

Body Function Controller (BFC): C1:
