Home >> Oldsmobile >> 1998 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> C1

C1

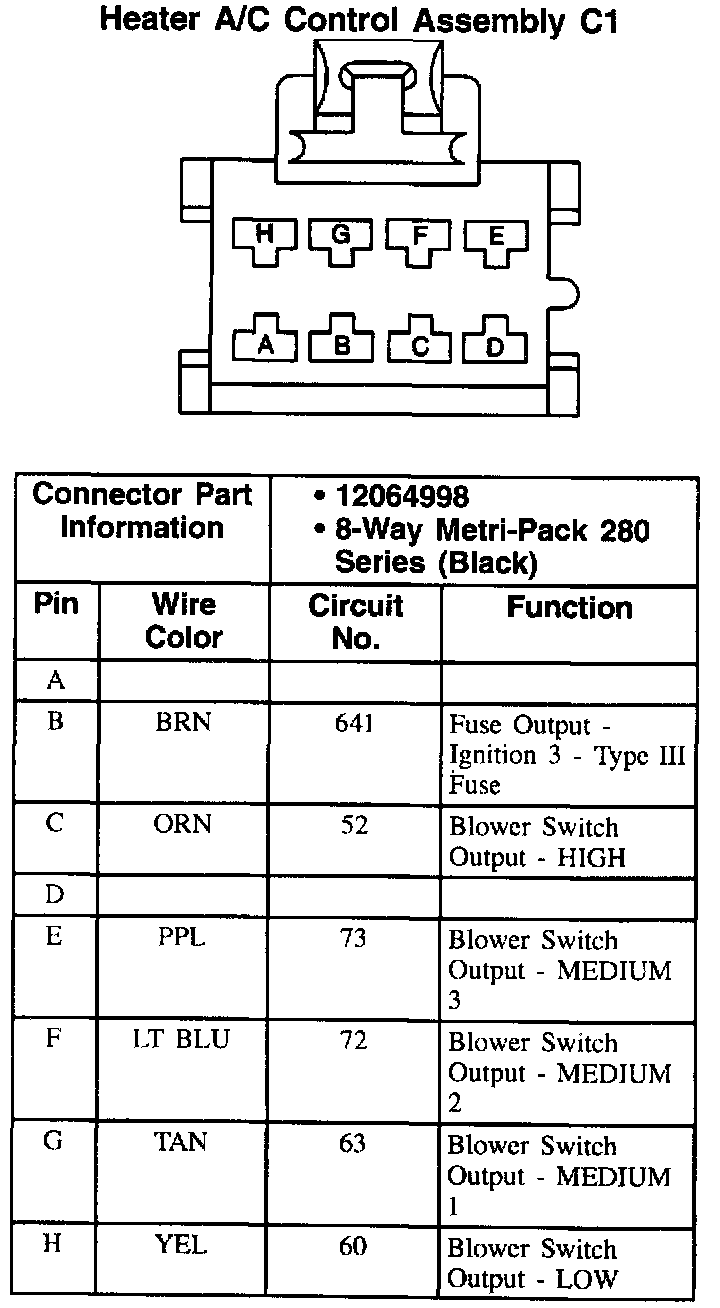

Heater A/C Control Assembly: C1:
