Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Panel, Gauges and Warning Indicators
>>
Door/Trunk Ajar Indicator/Lamp
Door/Trunk Ajar Indicator/Lamp

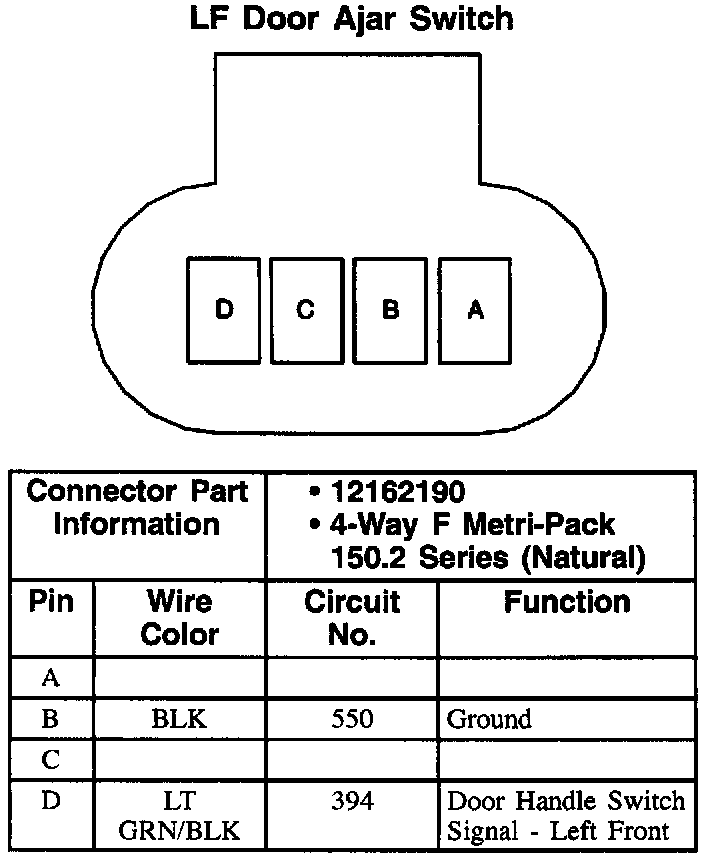

LF Door Ajar Switch:

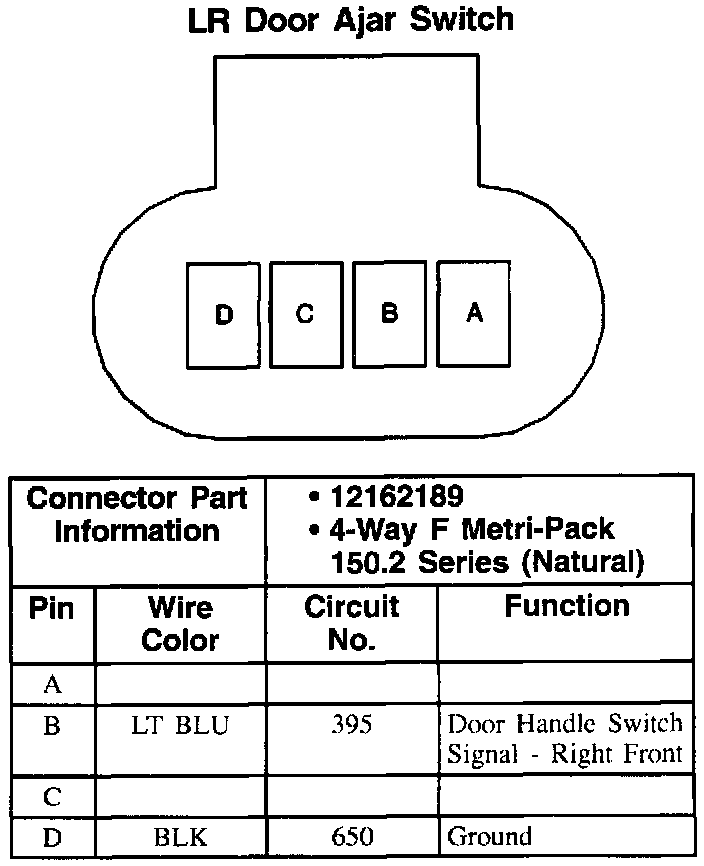

LR Door Ajar Switch:
RF Door Ajar Switch:

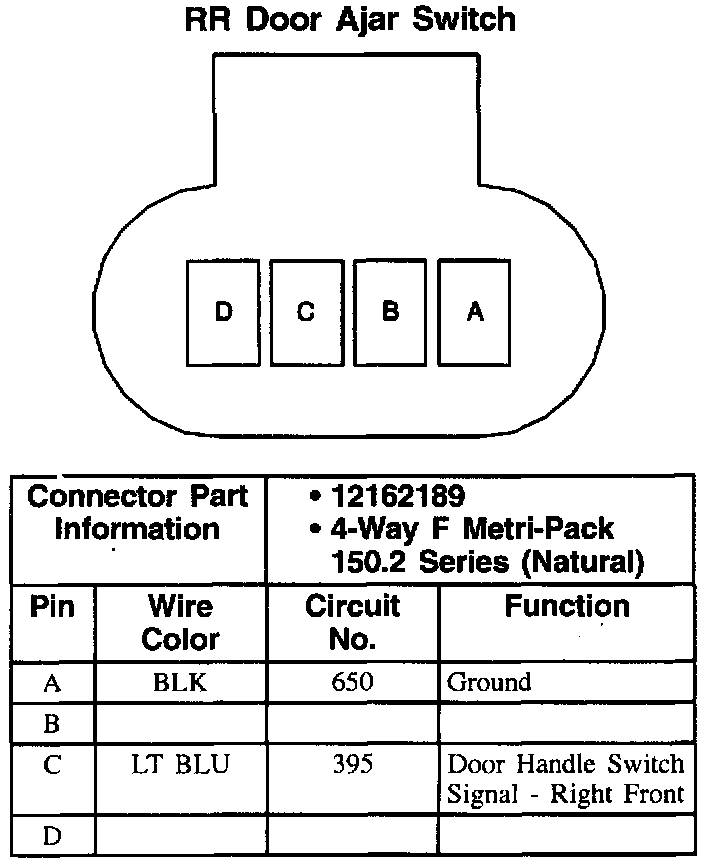

RR Door Ajar Switch:
