Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Actuator
>>
Left Rear Door Lock Actuator
Left Rear Door Lock Actuator

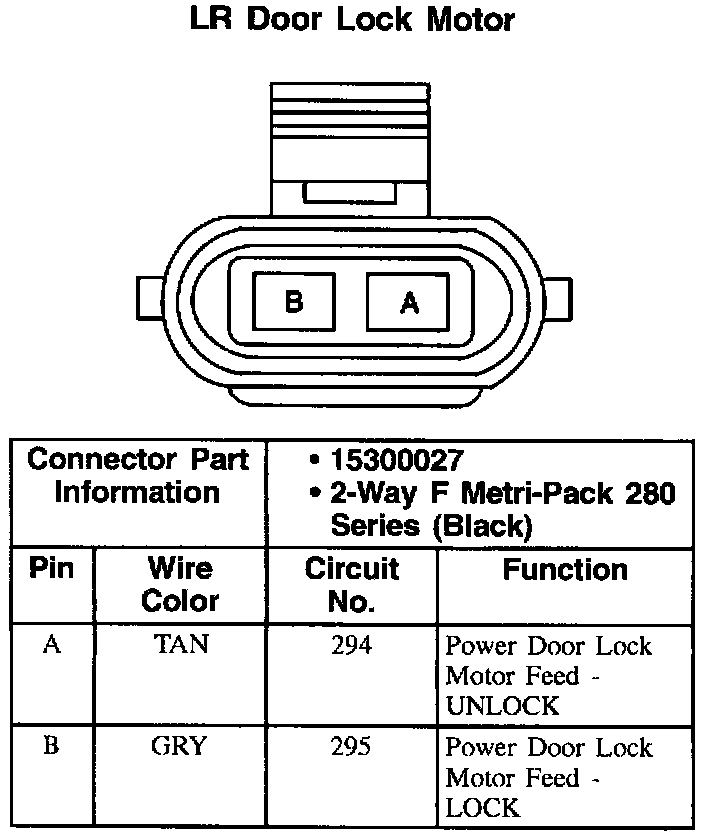

LR Door Lock Motor:
