Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1998
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Power Door Lock Switch
>>
Left Front Door Lock Switch
Left Front Door Lock Switch

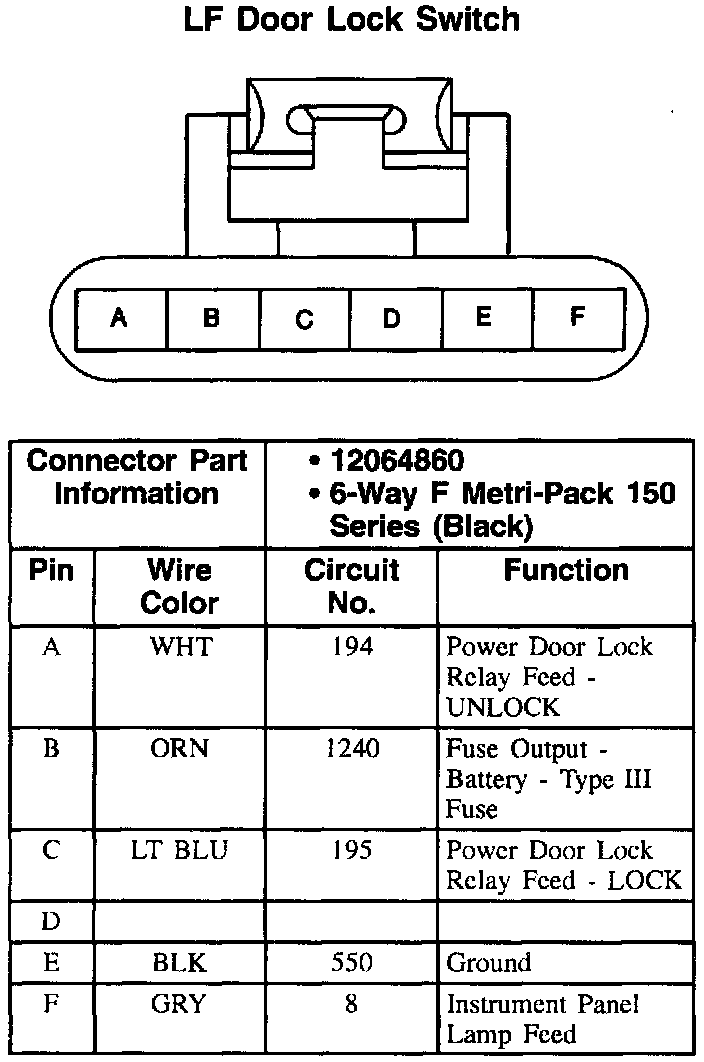

LF Door Lock Switch:
