Oldsmobile
>>
1998
>>
Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Transmission Control Systems
>>

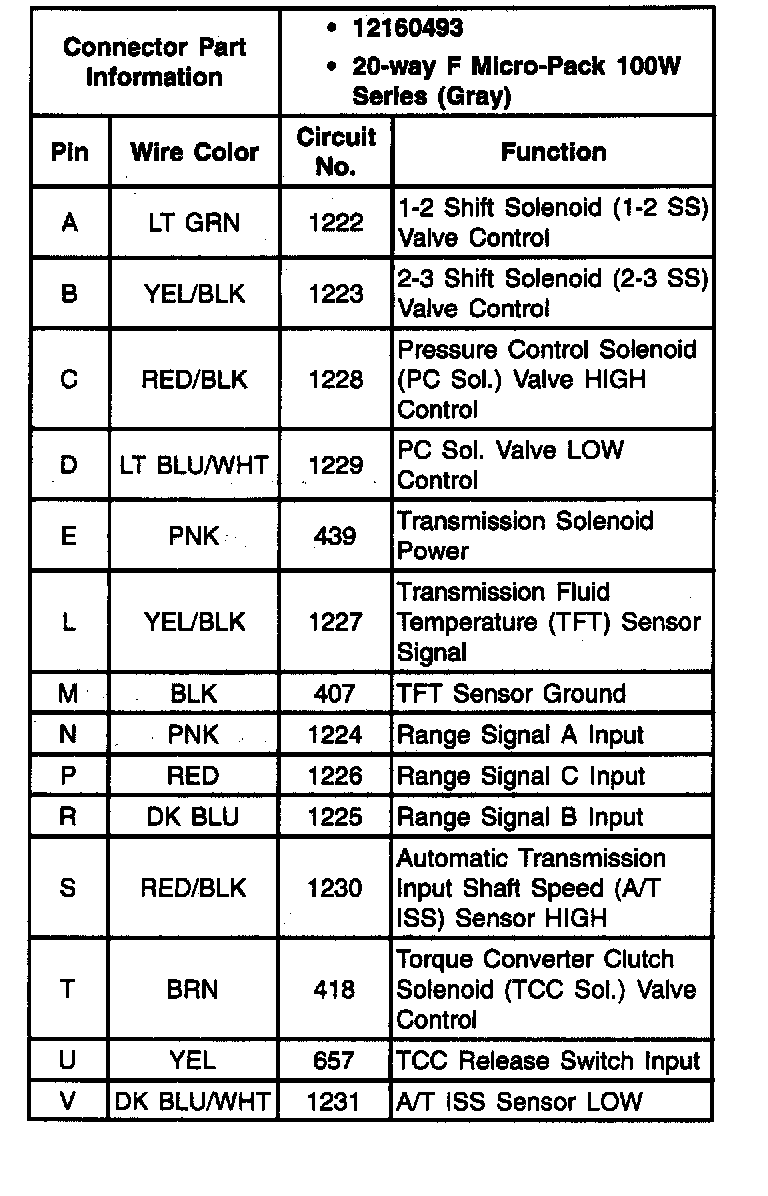

Harness Assembly 20-Way Connector - Engine Side
Harness Assembly 20-Way Connector - Engine Side
