Cutlass V6-191 3.1L VIN M SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Turn Signals
>>
Turn Signal Switch
Turn Signal Switch

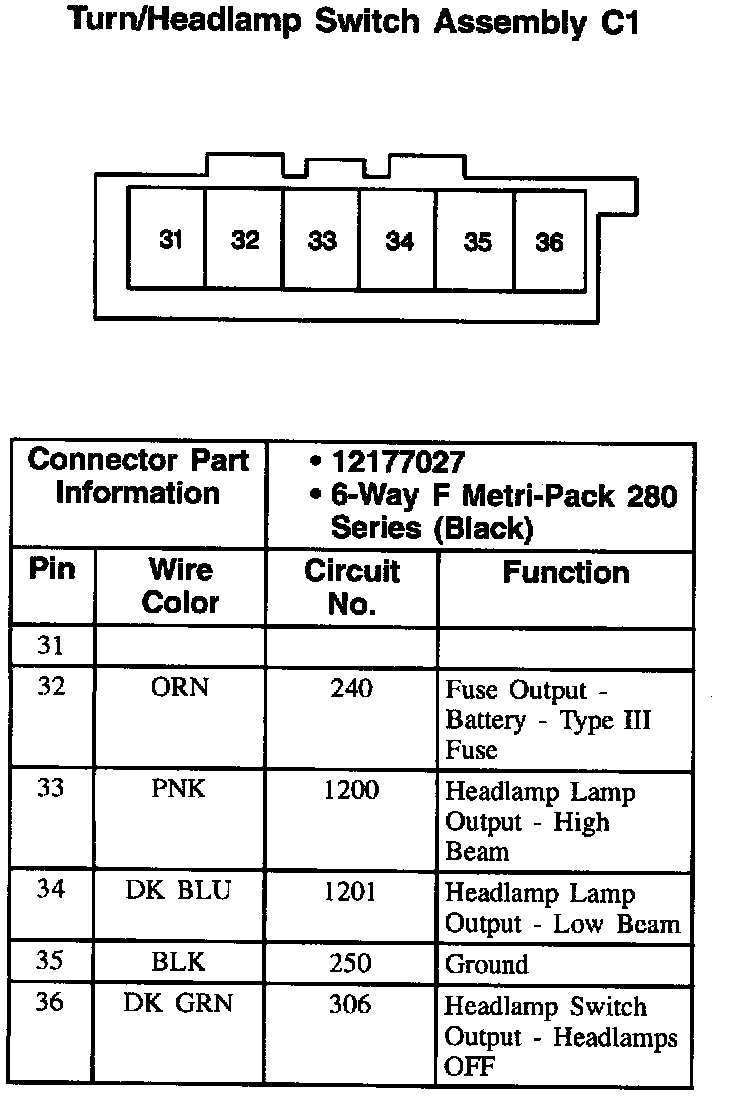

Turn/Headlamp Switch Assembly: C1:

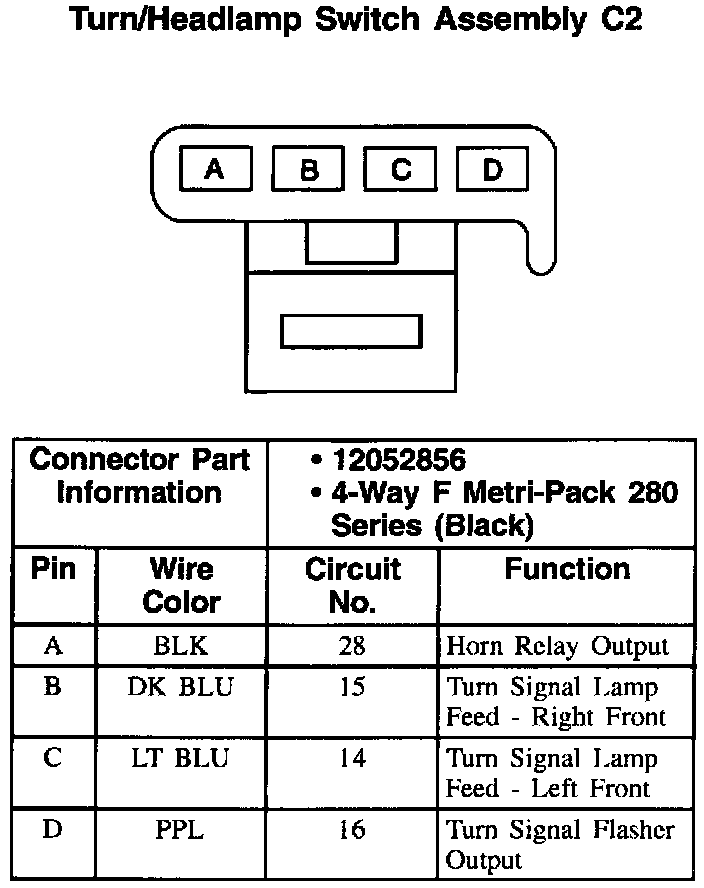

Turn/Headlamp Switch Assembly: C2:
