Home >> Oldsmobile >> 1998 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connectors >> Connectors By Component >> High Mounted Stop Lamp Assembly Connectors

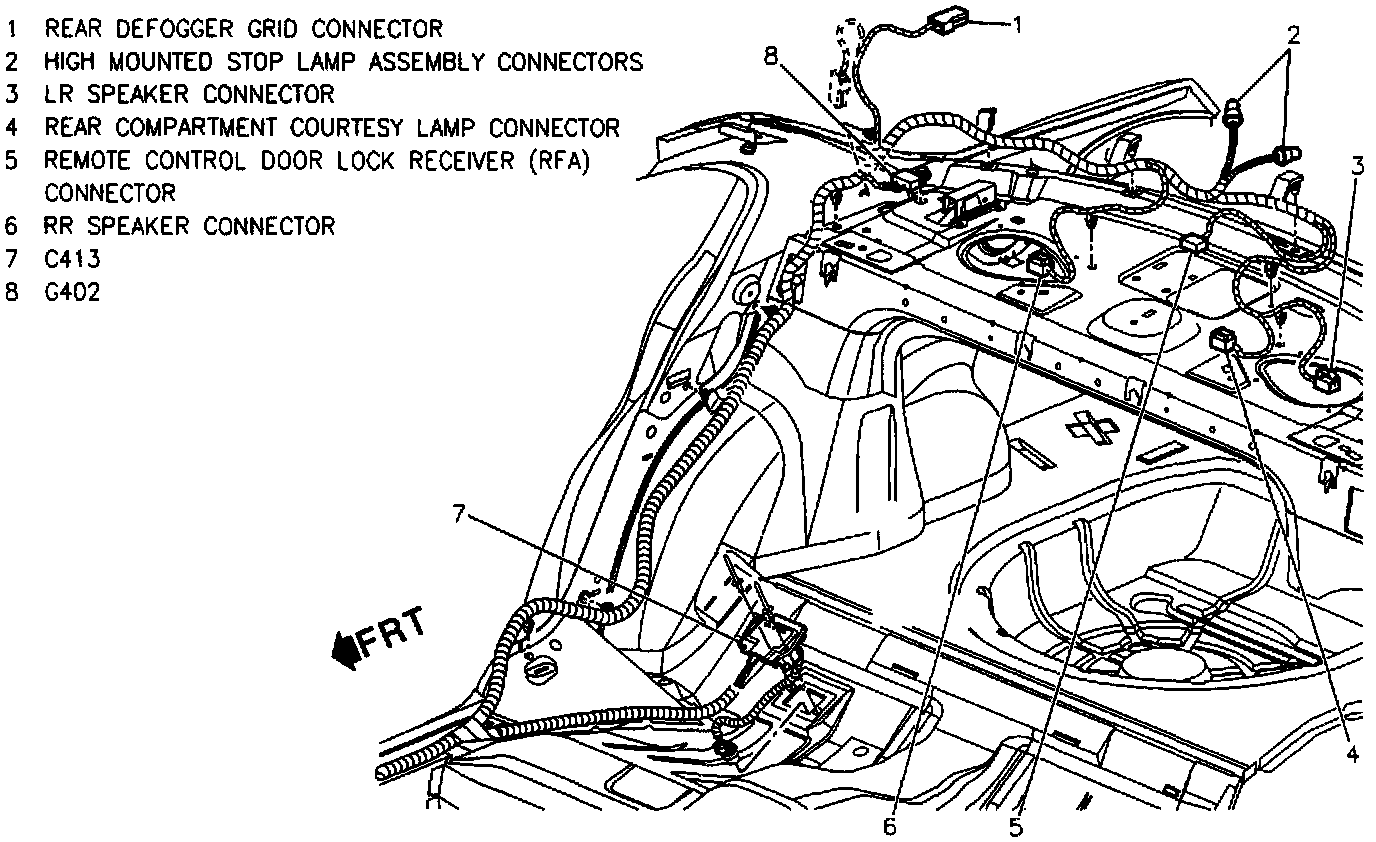

High Mounted Stop Lamp Assembly Connectors

RH Side Of Passenger Compartment, Rear Package Shell:
