Antilock Brakes / Traction Control Systems

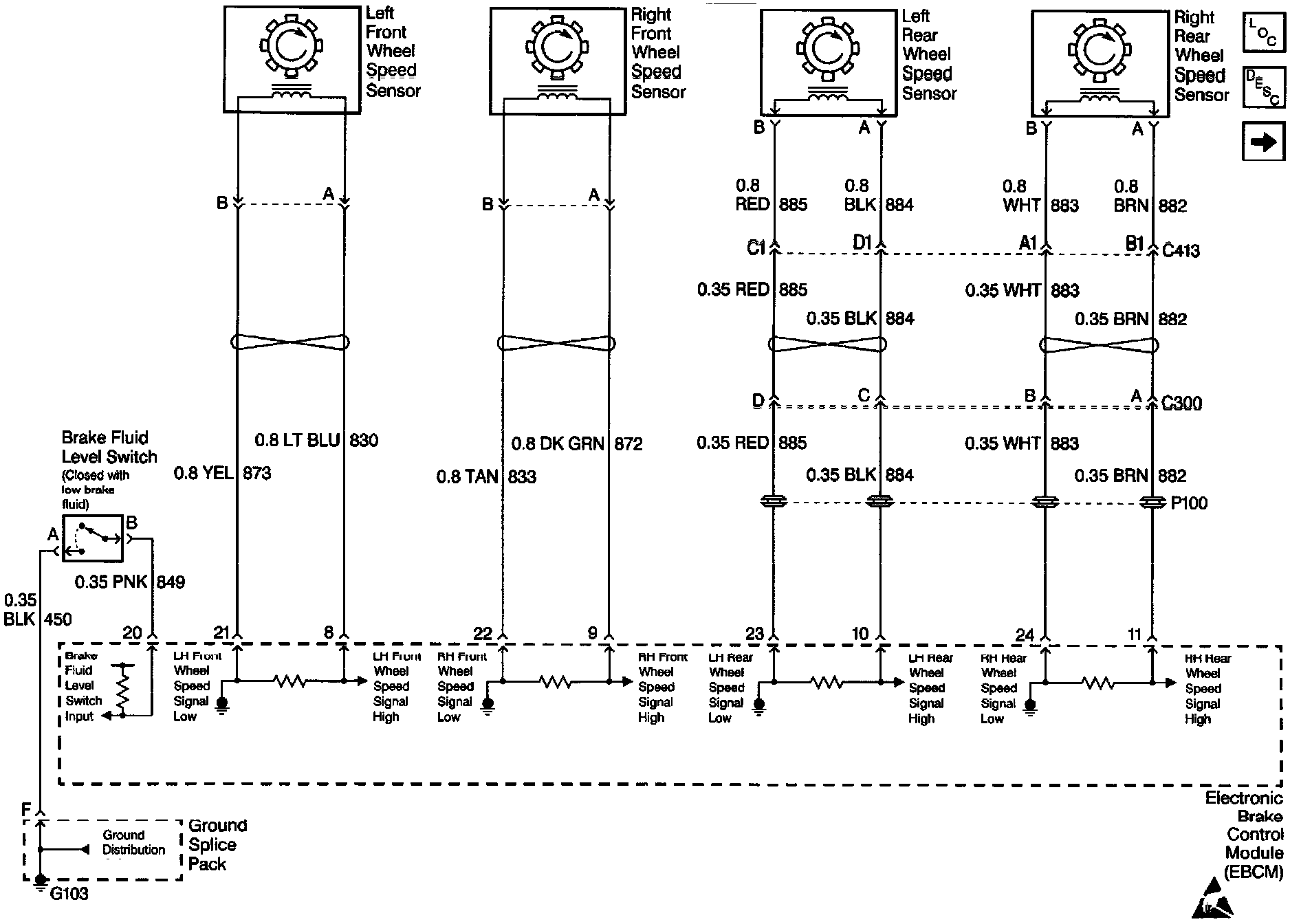

(Antilock Brake System Cell 44: Speed Sensors And Brake Fluid Level Switch):

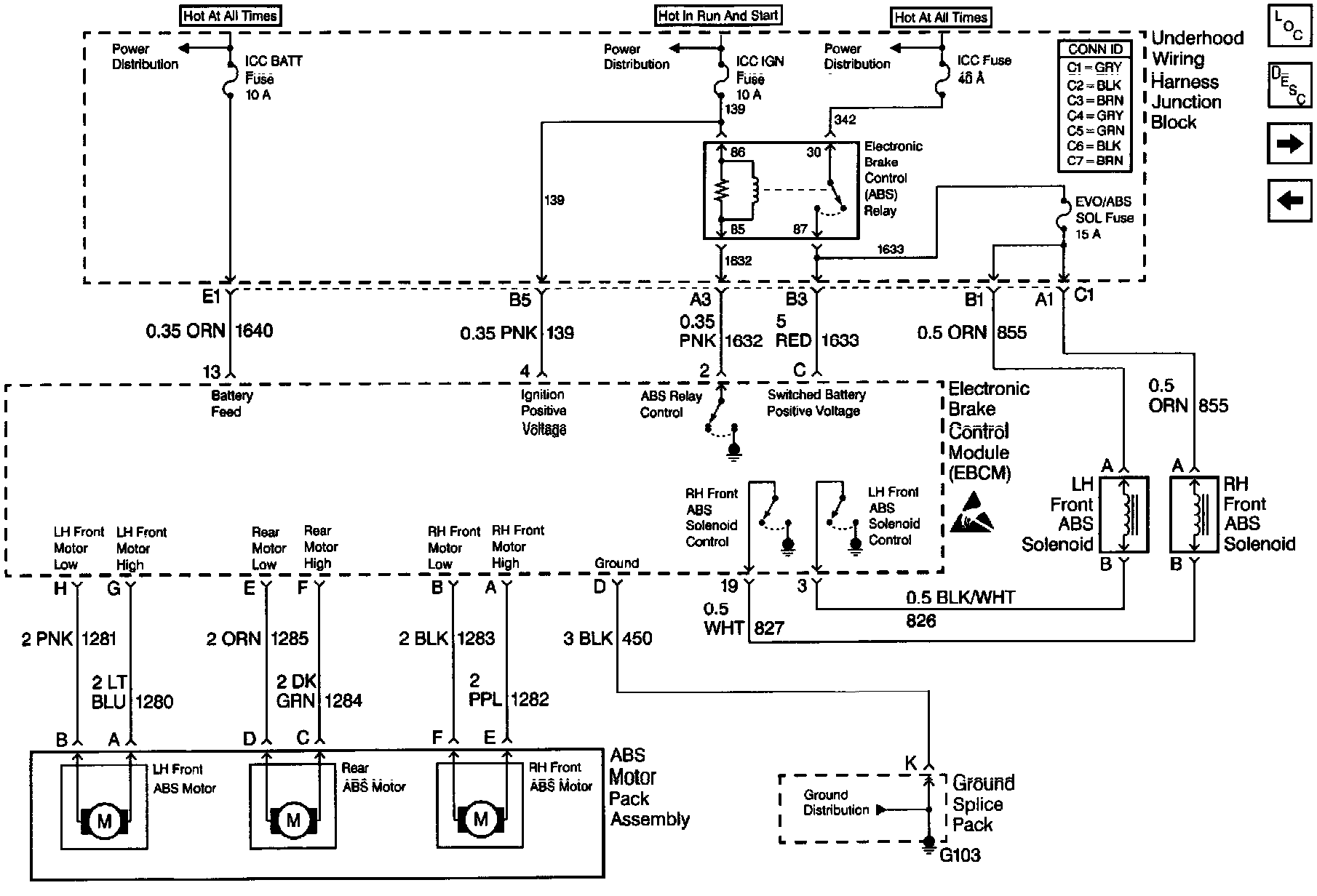

(Cell 44: Relay, Solenoids And Motor Pack):

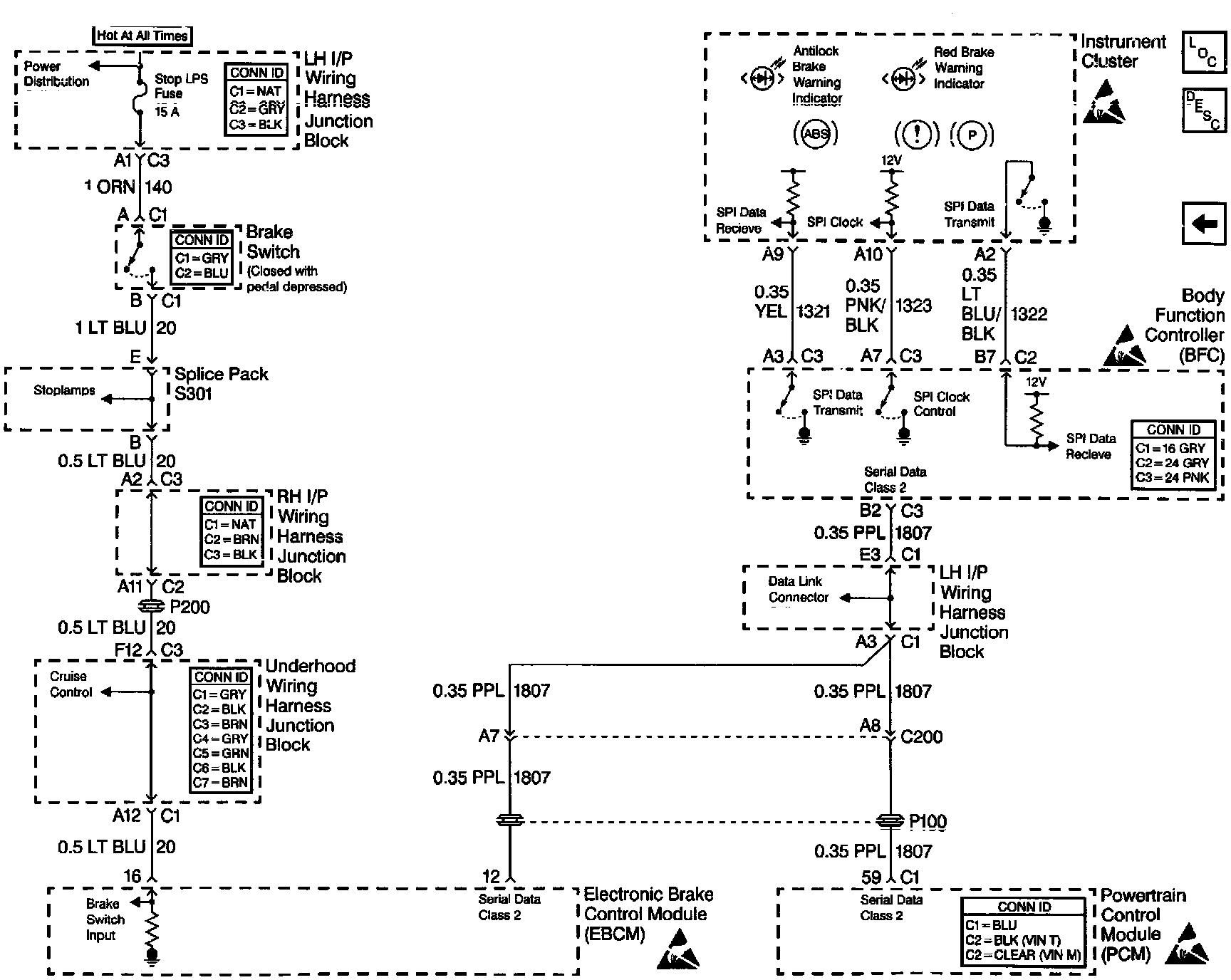

(Cell 44: Instrument Cluster, Brake Switch And PCM):
