Audible Warning Device

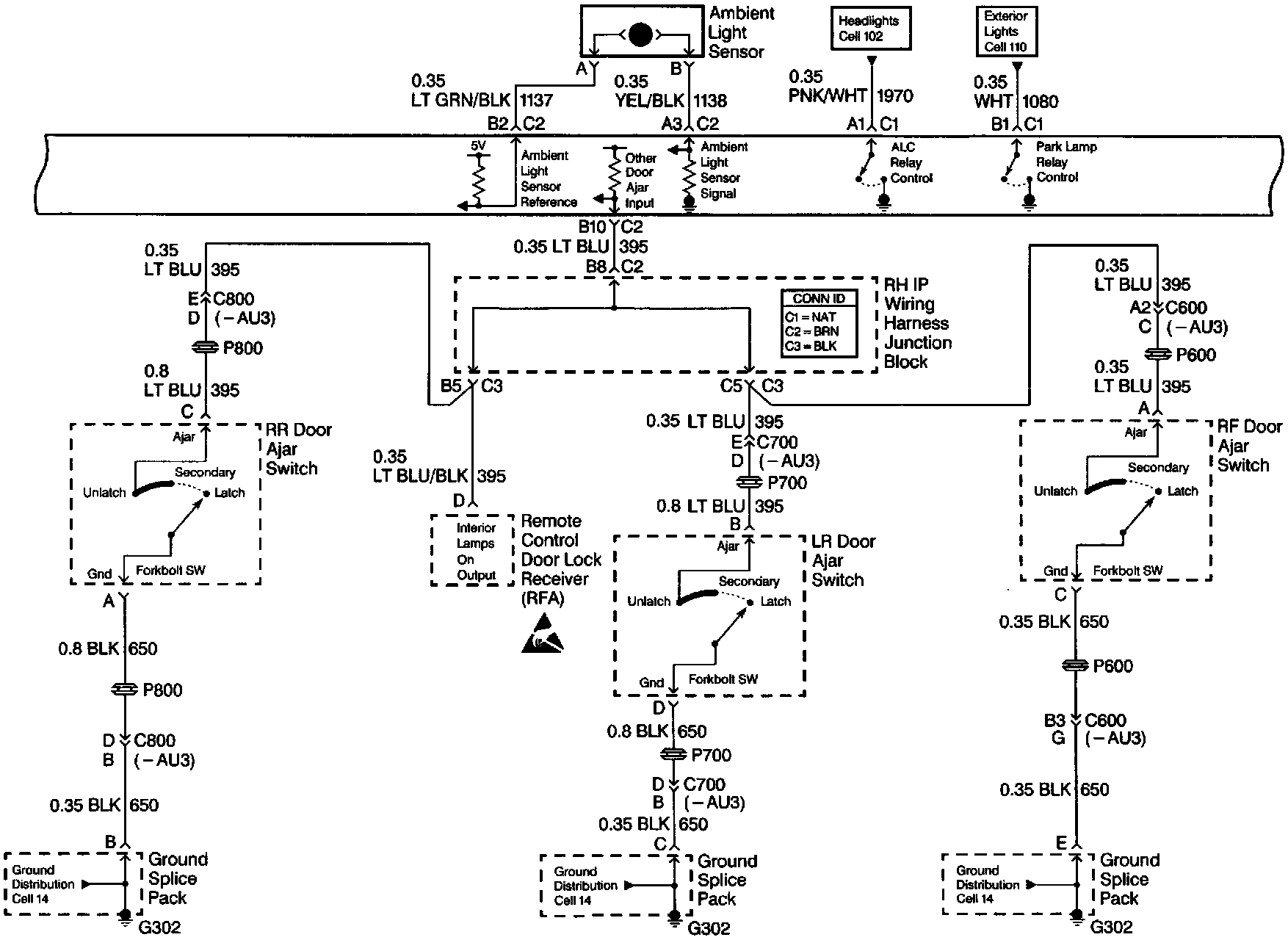

Audible Warnings (Part 1 Of 4):

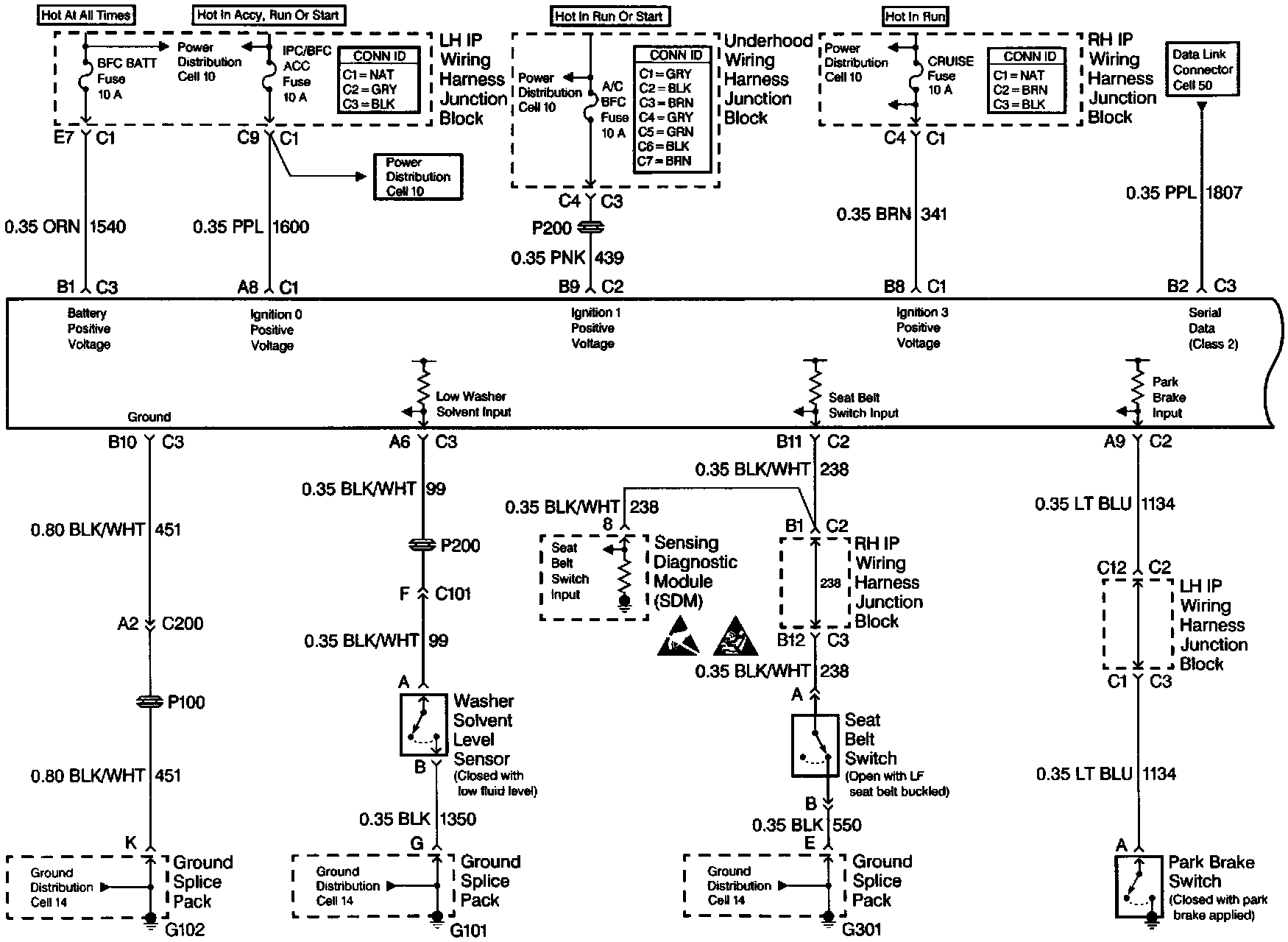

Audible Warnings (Part 2 Of 4):

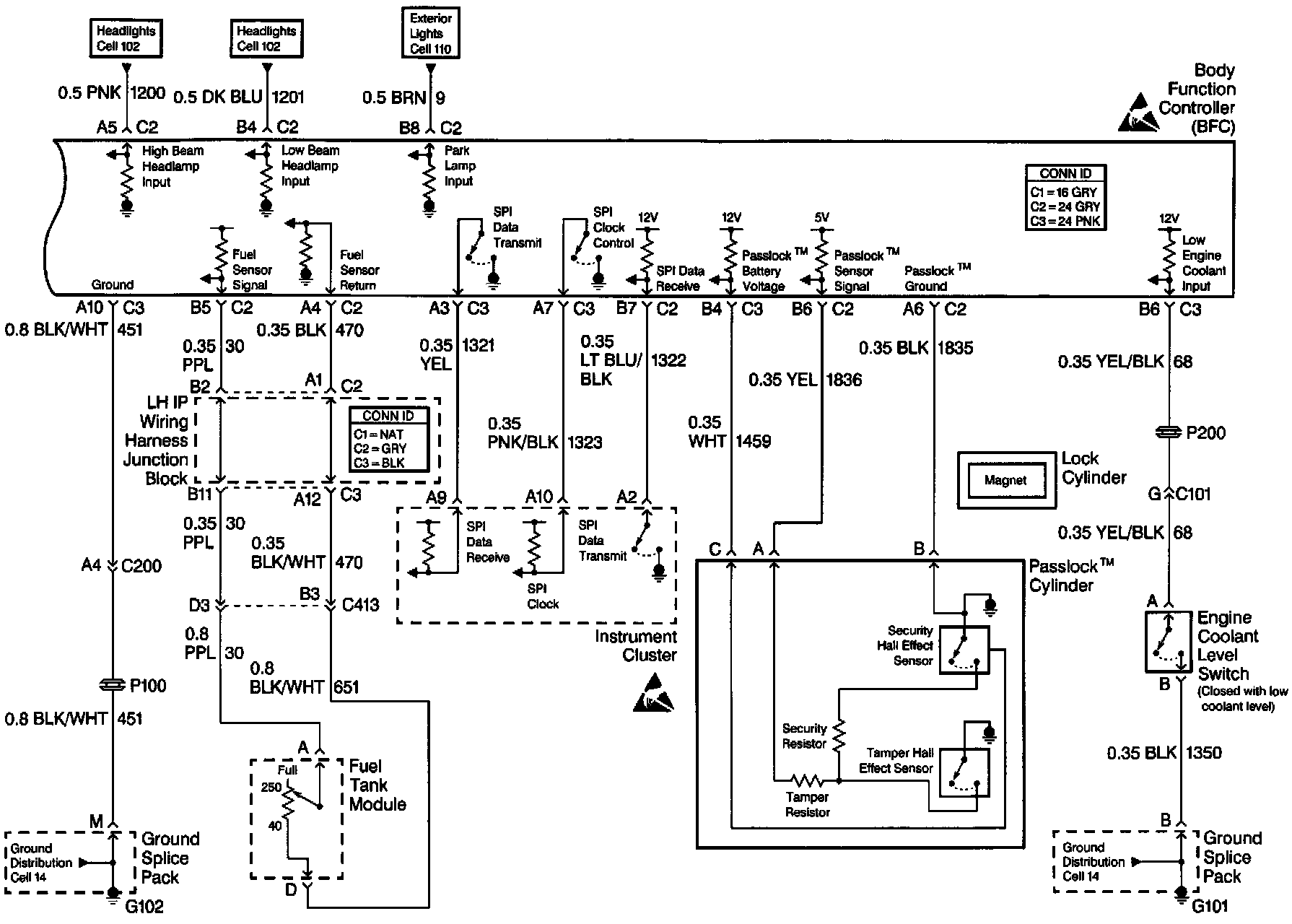

Audible Warnings (Part 3 Of 4):

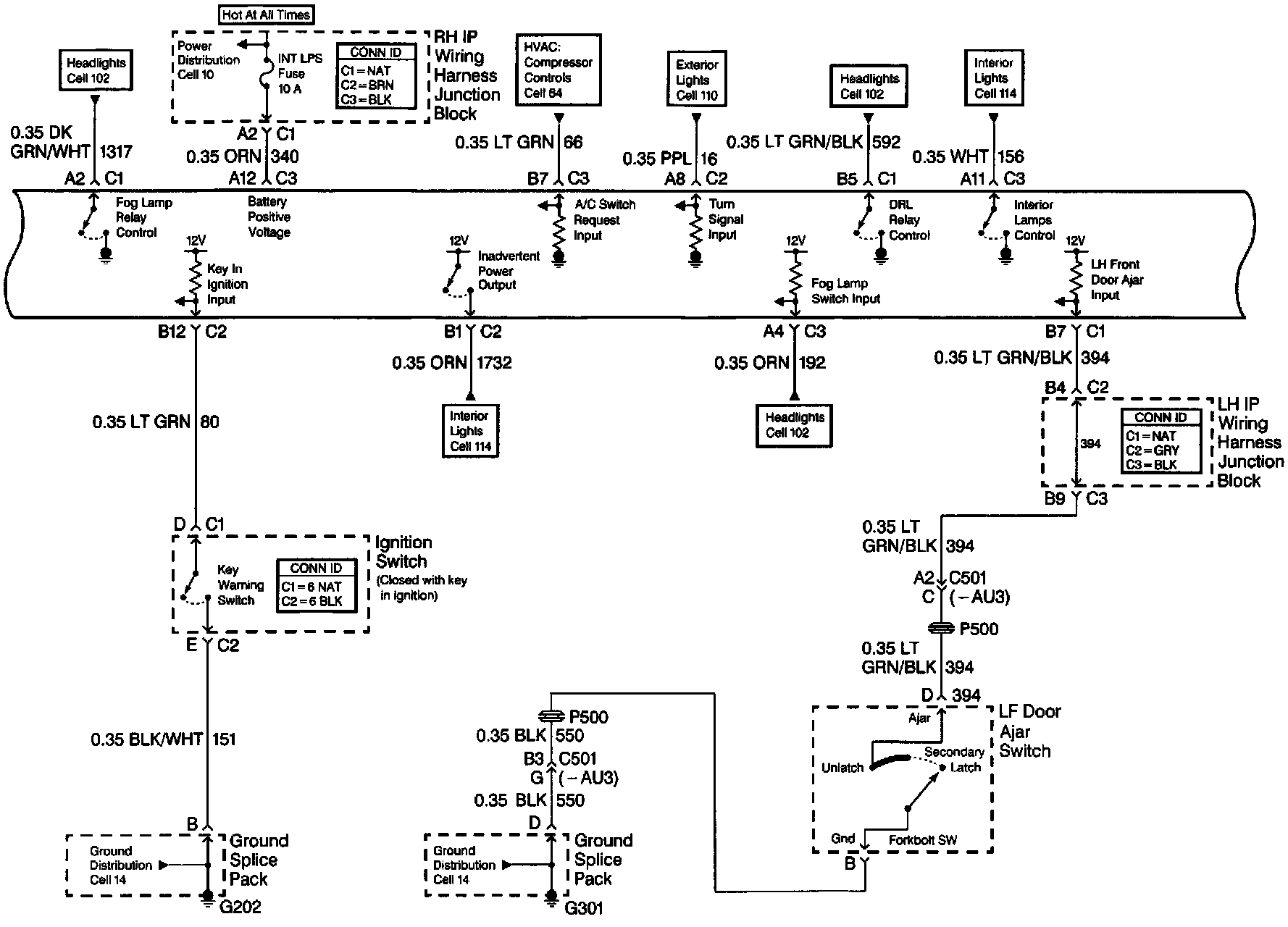

Audible Warnings (Part 4 Of 4):
