Home >> Oldsmobile >> 1998 >> Cutlass V6-191 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Transmission Control Systems >> Brake Switch, Solenoids, and VSS: VIN M

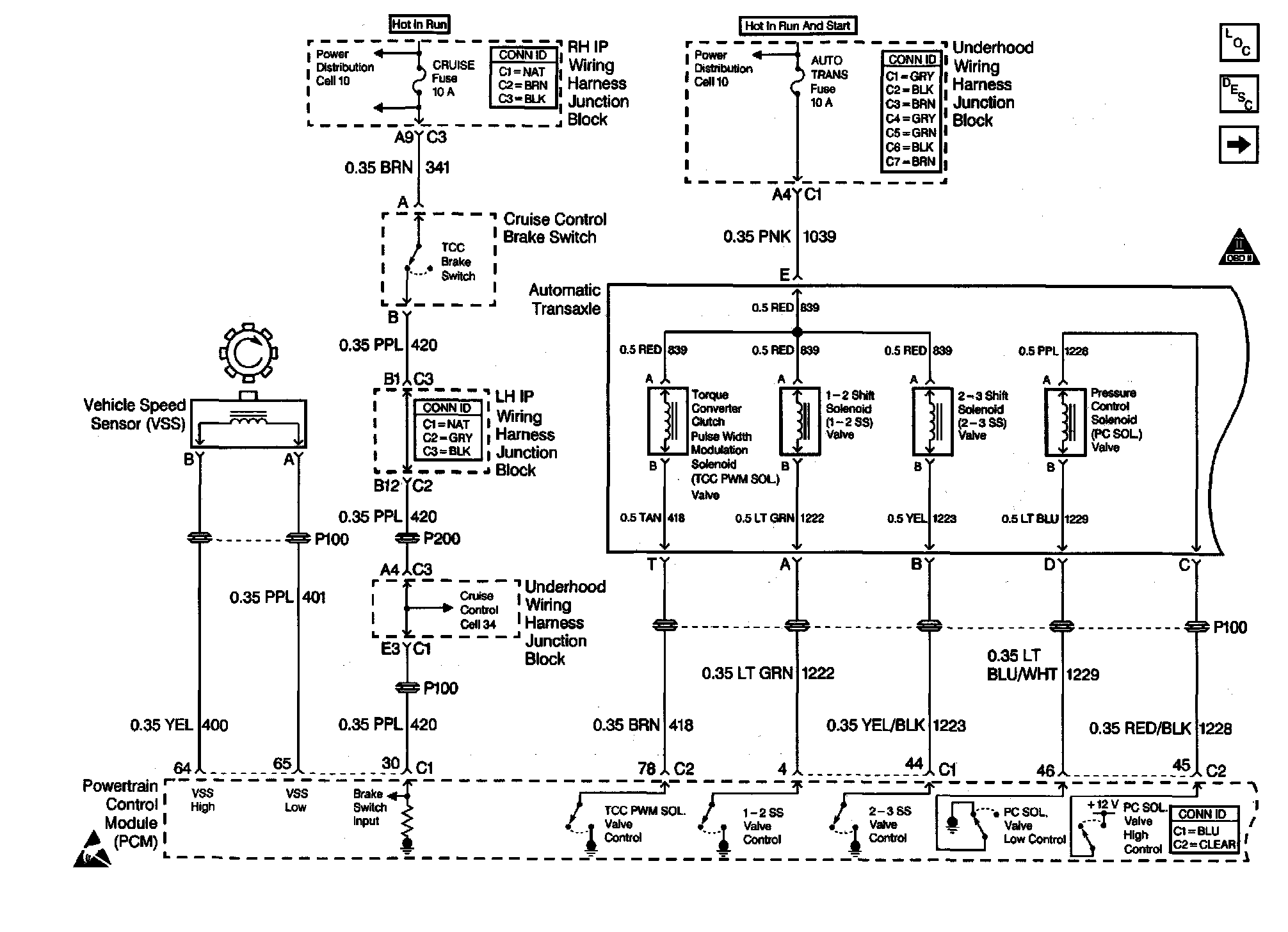

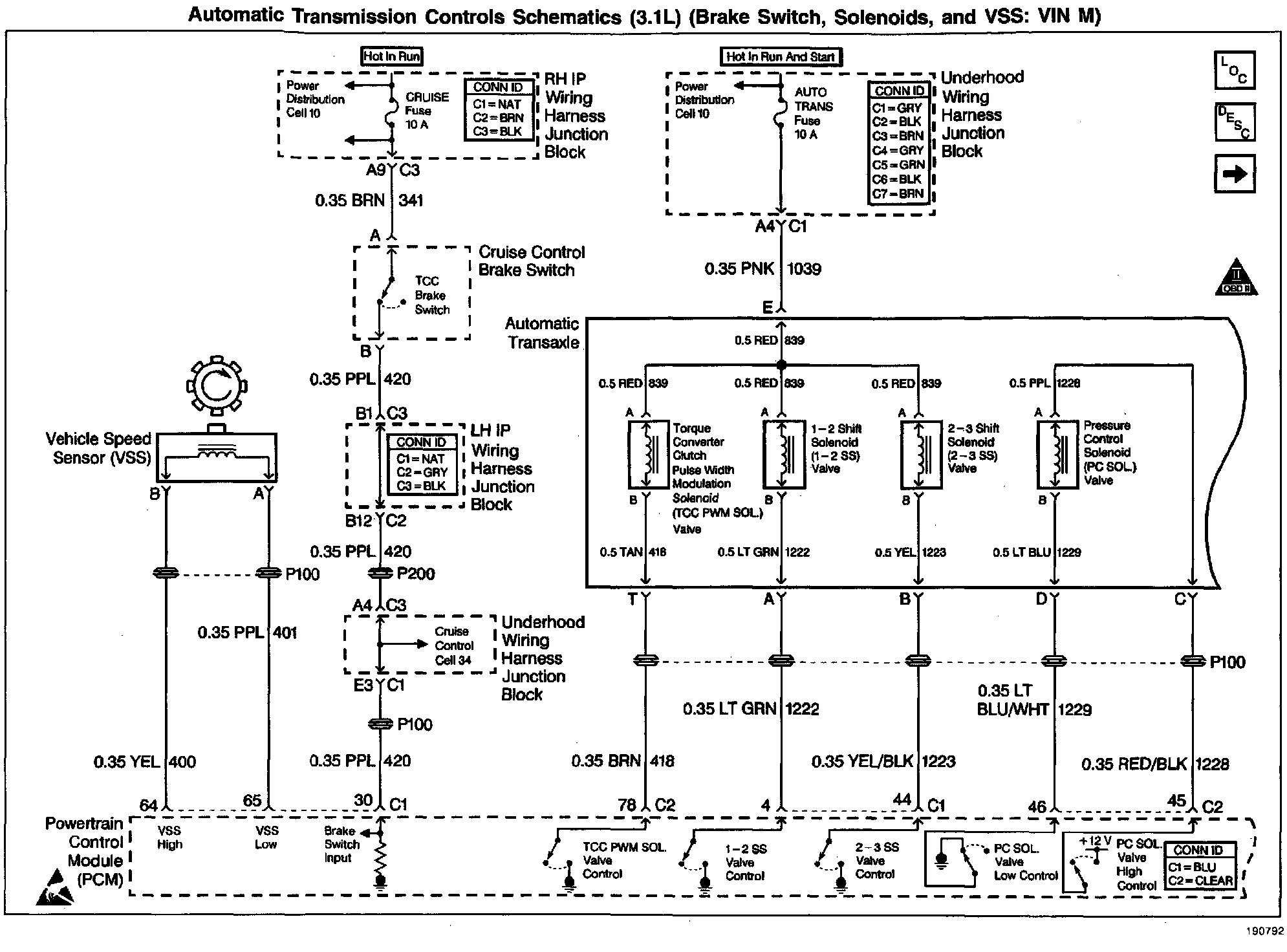

Brake Switch, Solenoids, and VSS: VIN M
