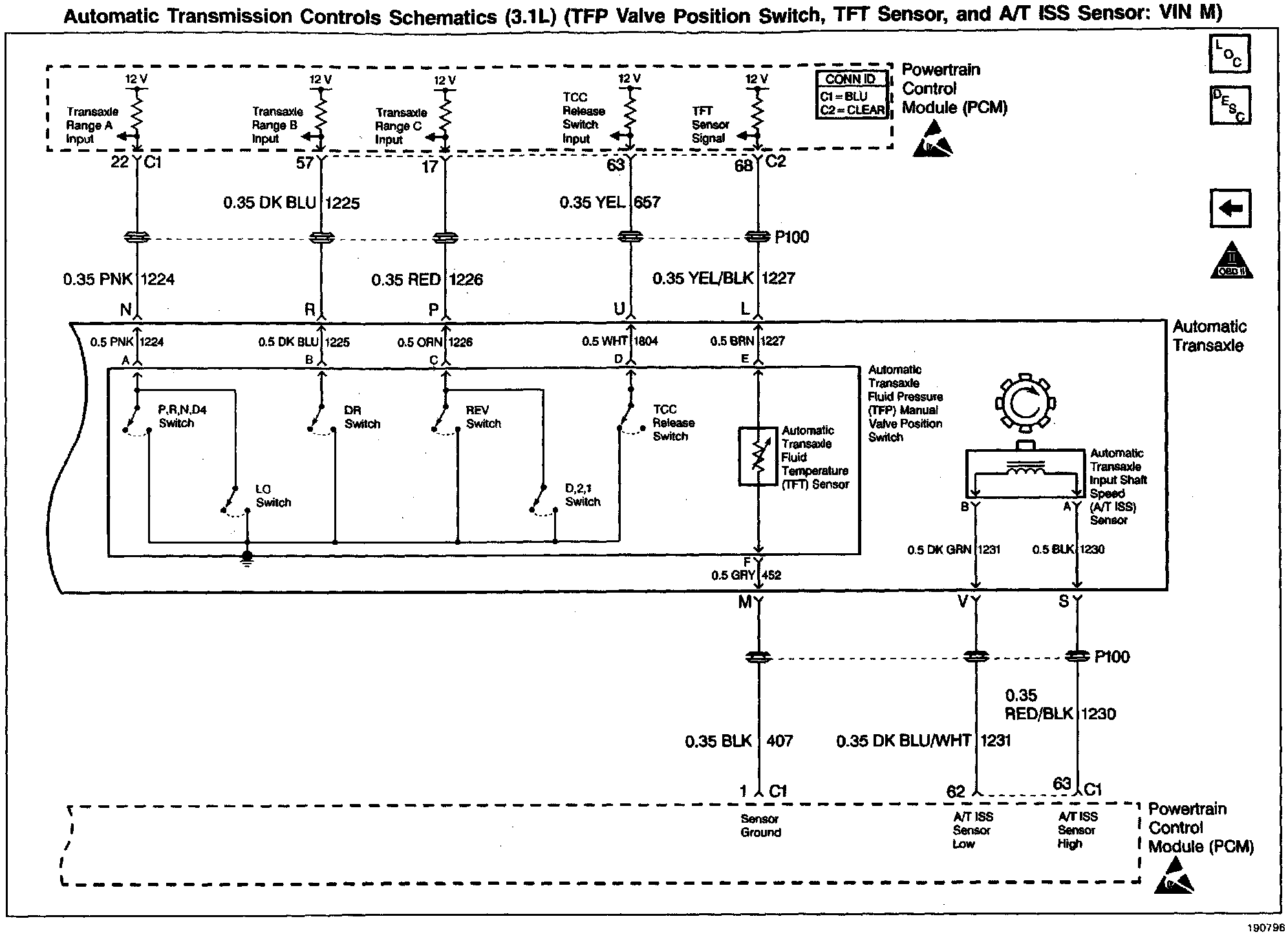

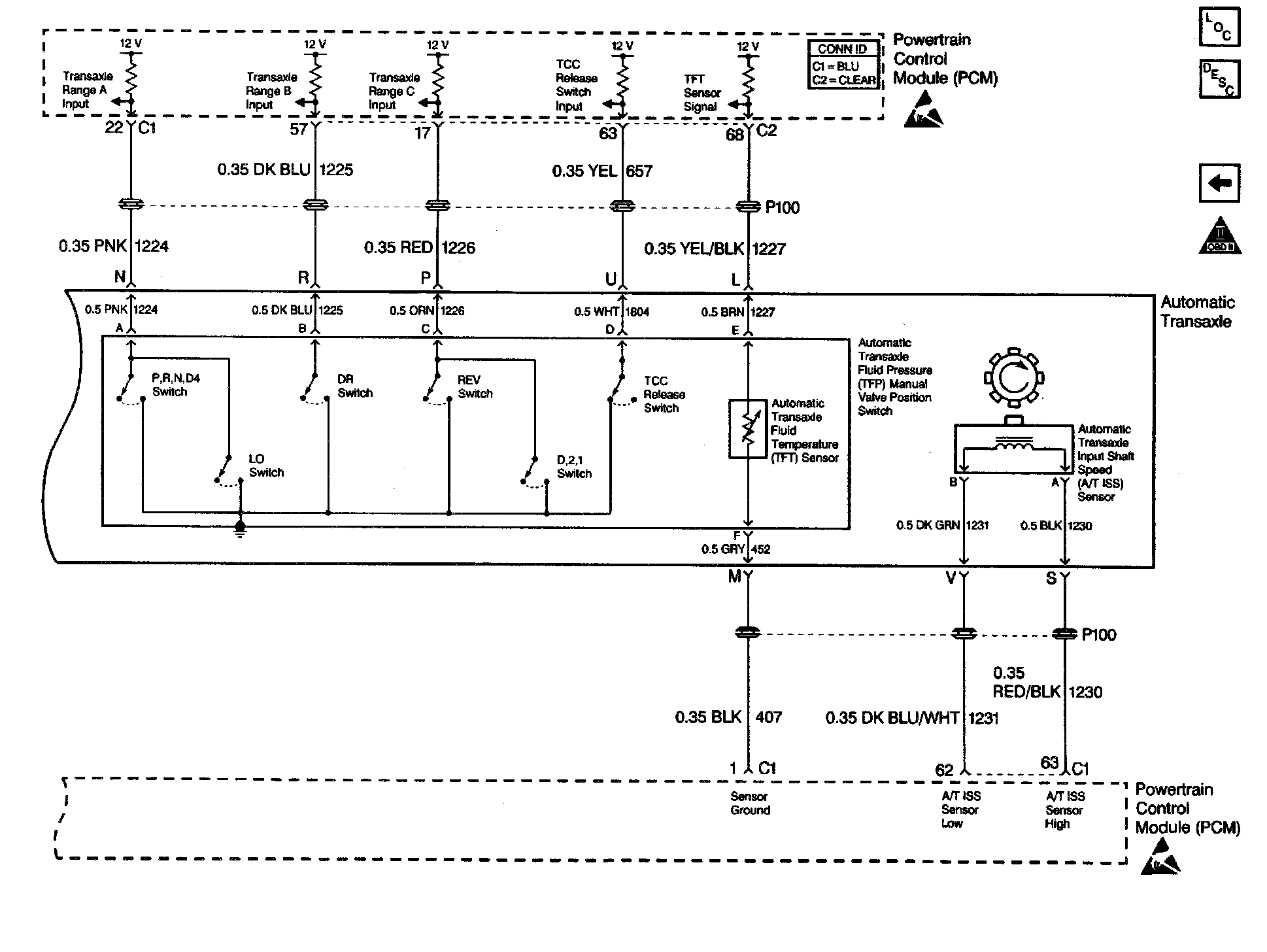

TFP Valve Position Switch, TFT Sensor, and A/T ISS Sensor
TFP Valve Position Switch, TFT Sensor, and A/T ISS Sensor
