Engine Wiring Harness to Generator (L82)
Engine Wiring Harness to Generator (L82)

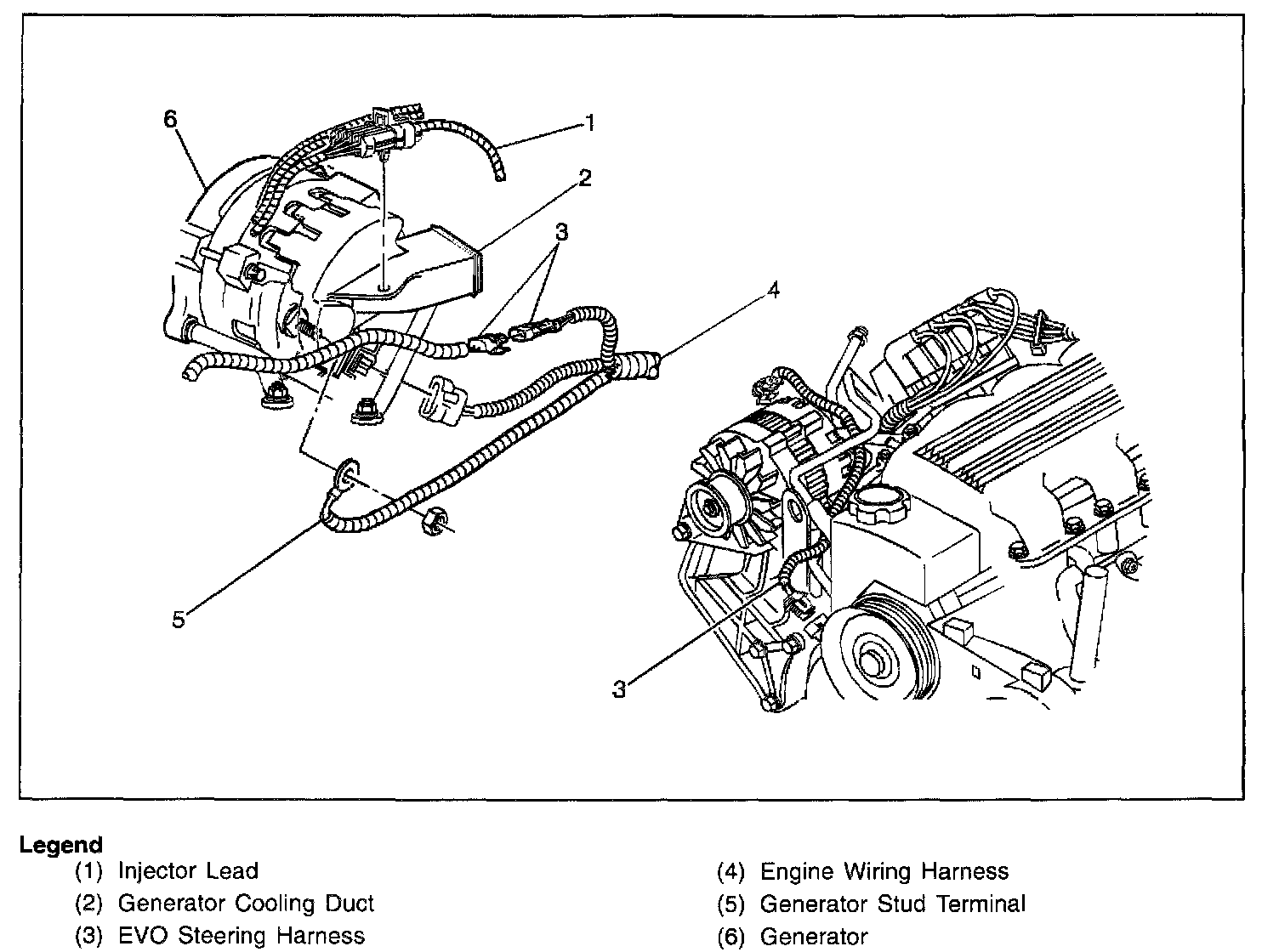

Engine Wiring Harness To Generator (3100 L82):
