Blower Motor: Service and Repair

Heater And A/C Module (1 Of 1):

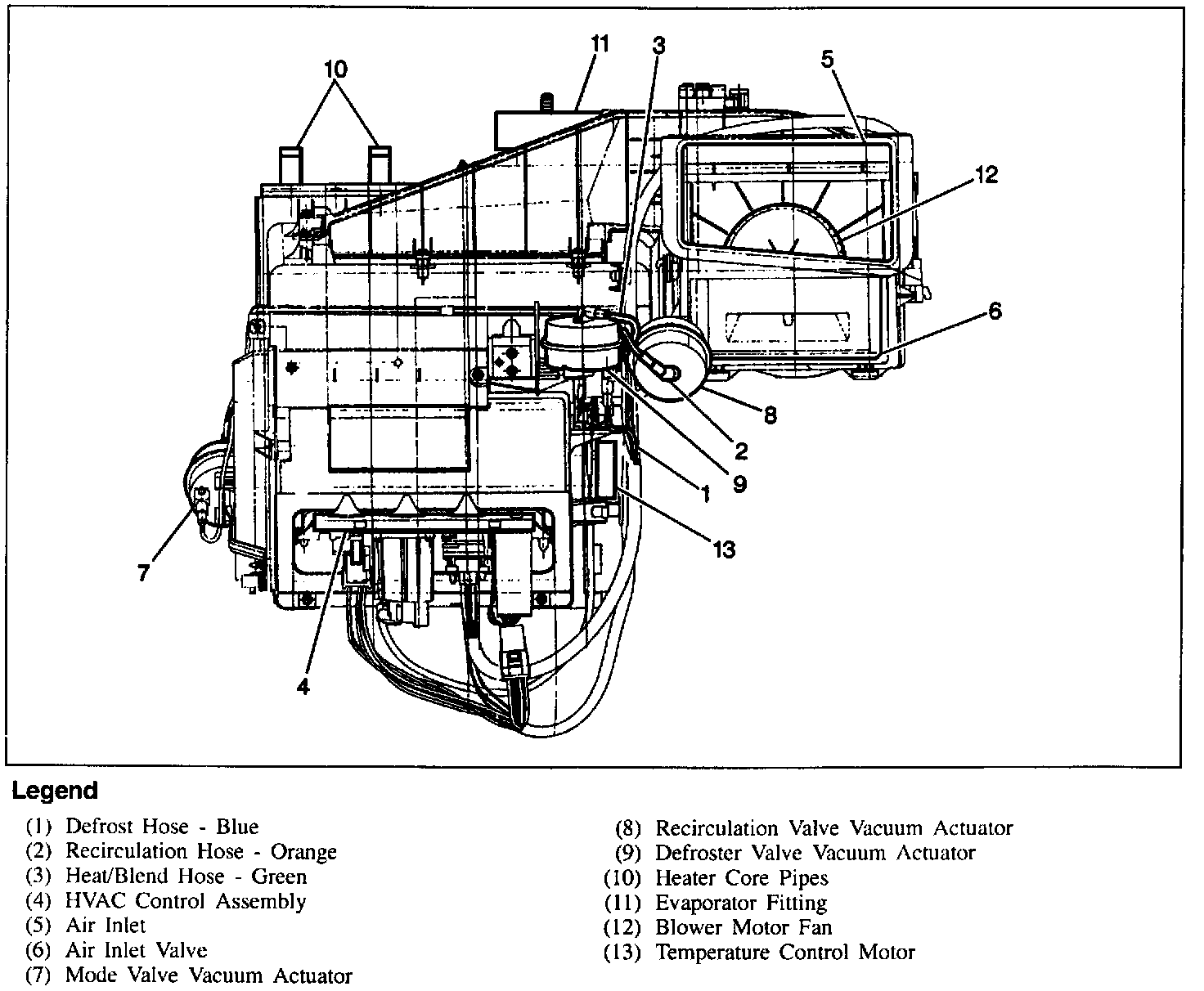

Heater And A/C Module - Top View:

The blower motor and fan are serviced as an assembly only.

Remove or Disconnect

1. Negative battery cable.
2. Right sound insulator.
3. Body Function Controller (BFC) positioned aside.
4. Electrical connections at blower motor.
5. Blower motor retaining screws.
6. Blower motor and fan assembly.

Install or Connect

1. Blower motor and fan assembly.
2. Retaining screws.

Tighten
^ Screws to 5 N.m (45 lb in).

3. Electrical connections.
4. BFC in position.
5. Right sound insulator.
6. Negative battery cable.

Tighten
^ Bolt to 16 N.m (12 lb ft).
