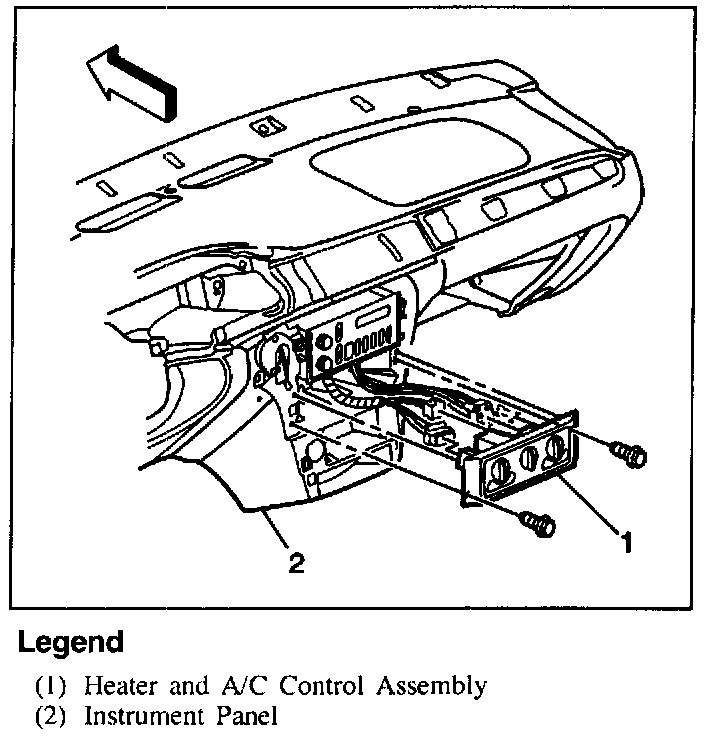

Control Assembly: Service and Repair






Remove or Disconnect

1. Negative battery cable.
2. Accessory trim plate.
3. Heater and A/C control retaining screws and pull heater and A/C control away from the instrument panel.
4. Electrical and vacuum connections.

Install or Connect

1. Electrical and vacuum connections.
2. Heater and A/C control and retaining screws to instrument panel.

Tighten
- Screw to 2 N.m (18 lb in).

3. Accessory trim plate.
4. Negative battery cable.

Tighten
- Bolt to 16 N.m (12 lb ft).
