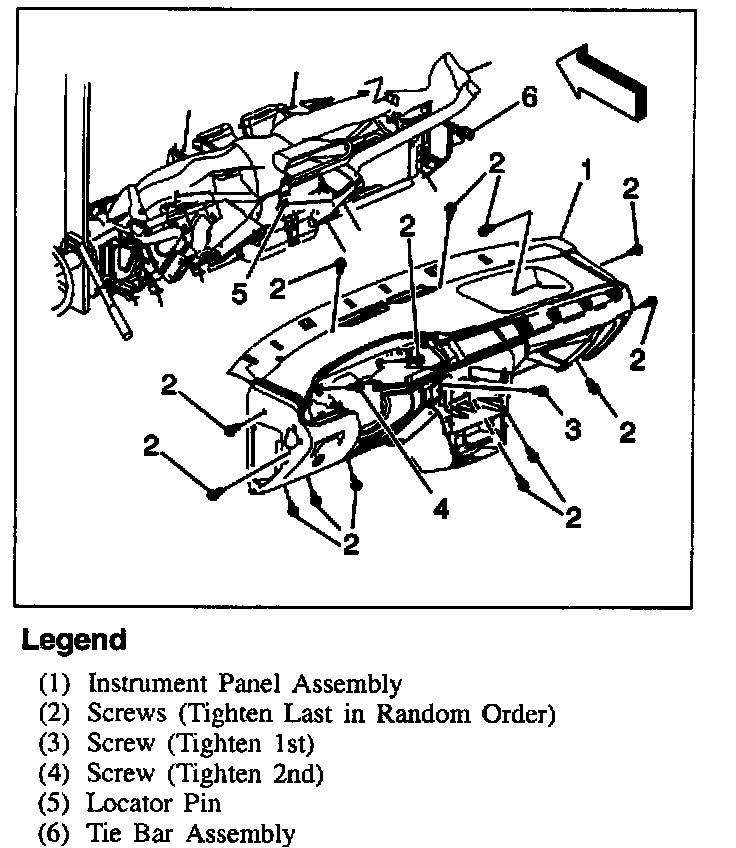

Instrument Panel Assembly Replacement

Instrument Panel Ti Tie Bar:

REMOVE OR DISCONNECT
1. Disable SIR system.
2. Defroster grill.
3. Instrument Panel valance, screws underneath.
4. End caps.
5. Screws from under end caps.
6. Instrument panel compartment.
7. Steering wheel.
8. Column covers.
9. Steering column stalks.
10. Cluster and accessory trim plates.
11. Cluster.
12. HVAC controls.
13. Stereo/ tape deck.
14. Ignition switch.
15. Windshield side upper garnish molding.
16. Loosen center console and pull rearward to disengage from instrument panel.
17. Screws connecting instrument panel to tie bar.
18.Instrument panel from tie bar.

INSTALL OR CONNECT
1. Instrument panel to tie bar.
2. Screws connecting instrument panel to tie bar.
3. Secure center console.
4. Install all vents, snap into place.
5. Ignition switch.
6. Stereo /tape deck.
7. HVAC controls.
8. Cluster.
9. Cluster and accessory trim plates.
10. Steering column stalks.
11. Steering column covers.
12. Steering wheel.
13. End cap.
14. Instrument panel compartment.
15. Instrument panel valance.
16. Defroster grill.
17. Enable SIR system.
