Instrument Panel Tie Bar Replacement

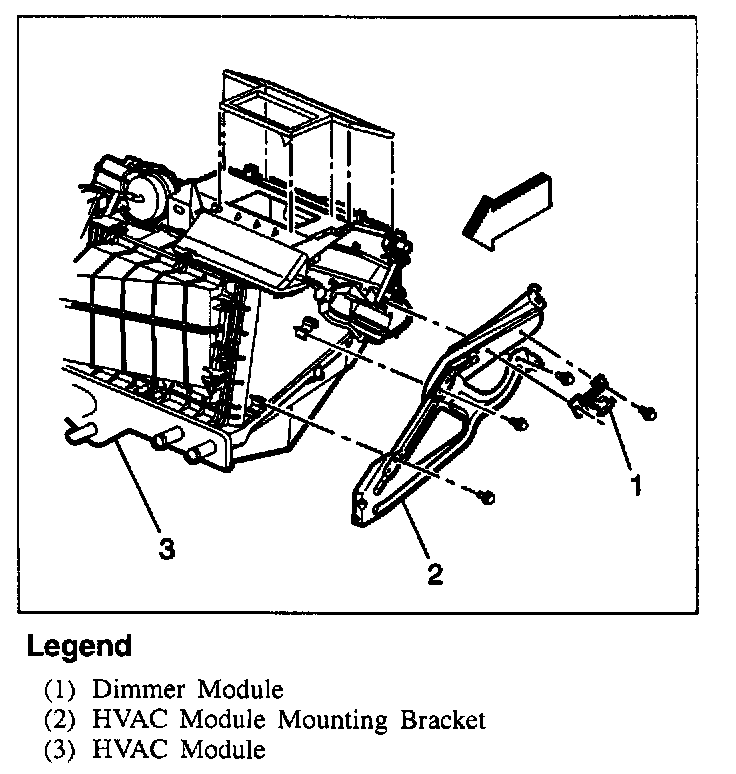

Dimmer Module:

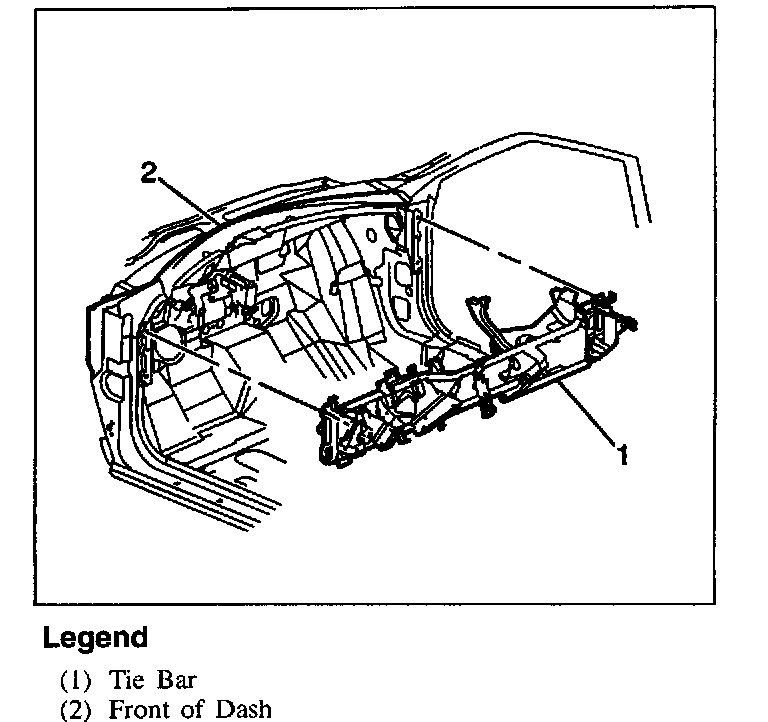

Tie Bar To Front Of Dash:

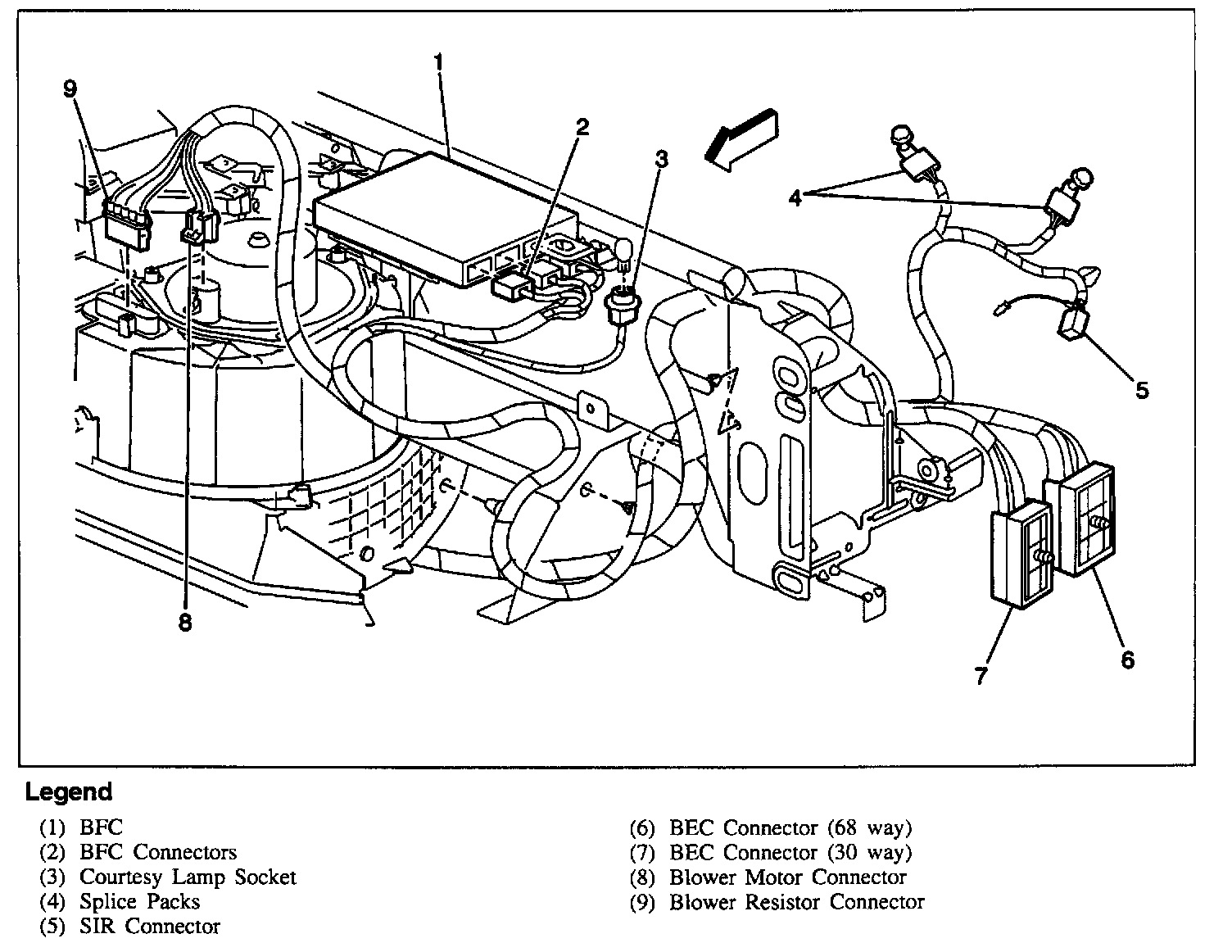

Tie Bar Wiring - Left:

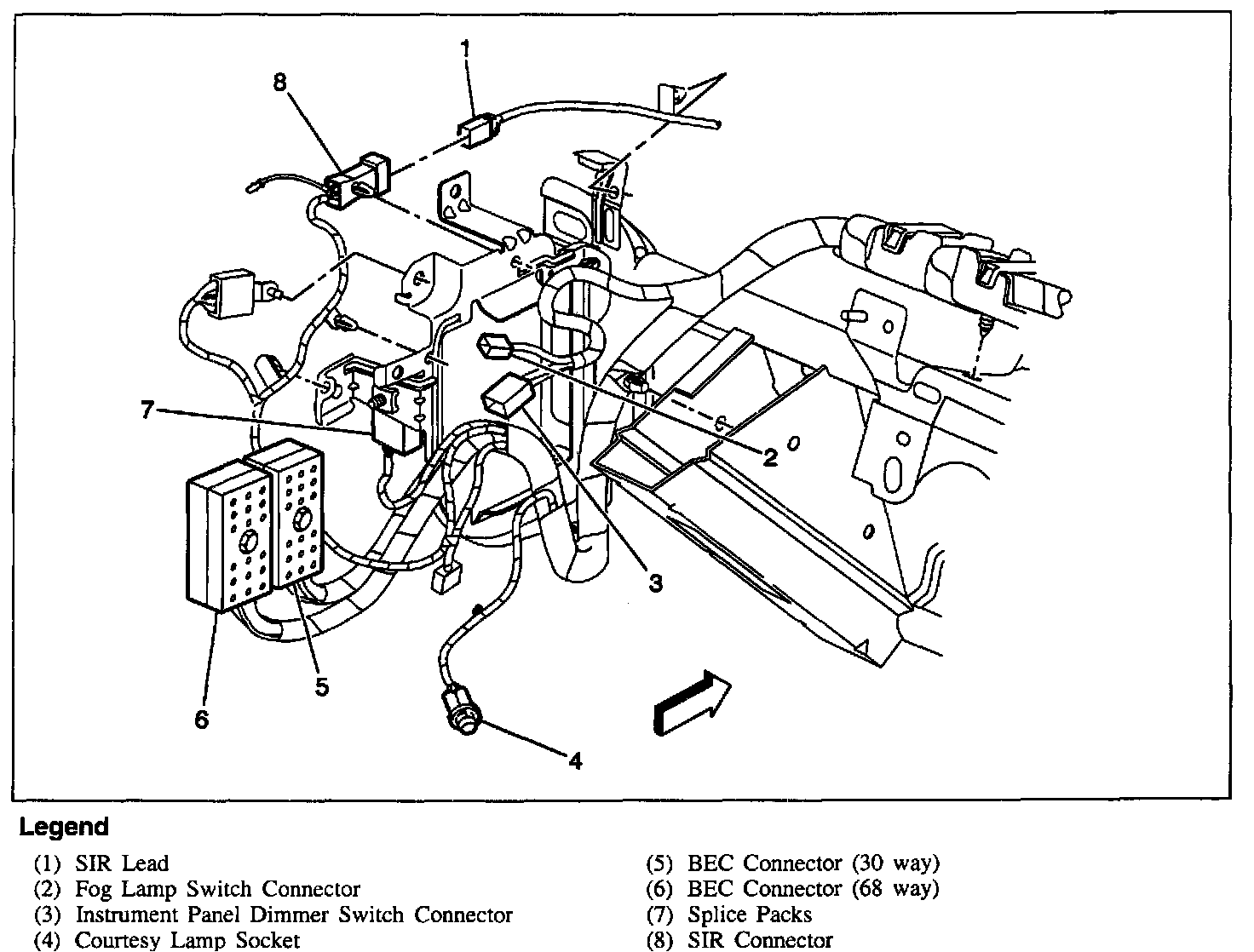

Tie Bar Wiring - Left Center:

Tie Bar Wiring - Right Center:

Tie Bar Wiring - Right:

REMOVE OR DISCONNECT
1. Instrument Panel.
2. Wiring harness from tie bar.
3. Bolts from tie bar to HVAC module bracket.
4. Bolts from tie bar to front of dash.
5. Tie bar.

INSTALL OR CONNECT
1. Tie bar to front of dash.

Tighten
^ Bolts and Studs to 10 Nm (89 lb in).

2. Bolts to HVAC module bracket.
3. Wiring harness to tie bar.
4. Instrument Panel.
