Gauges Cluster

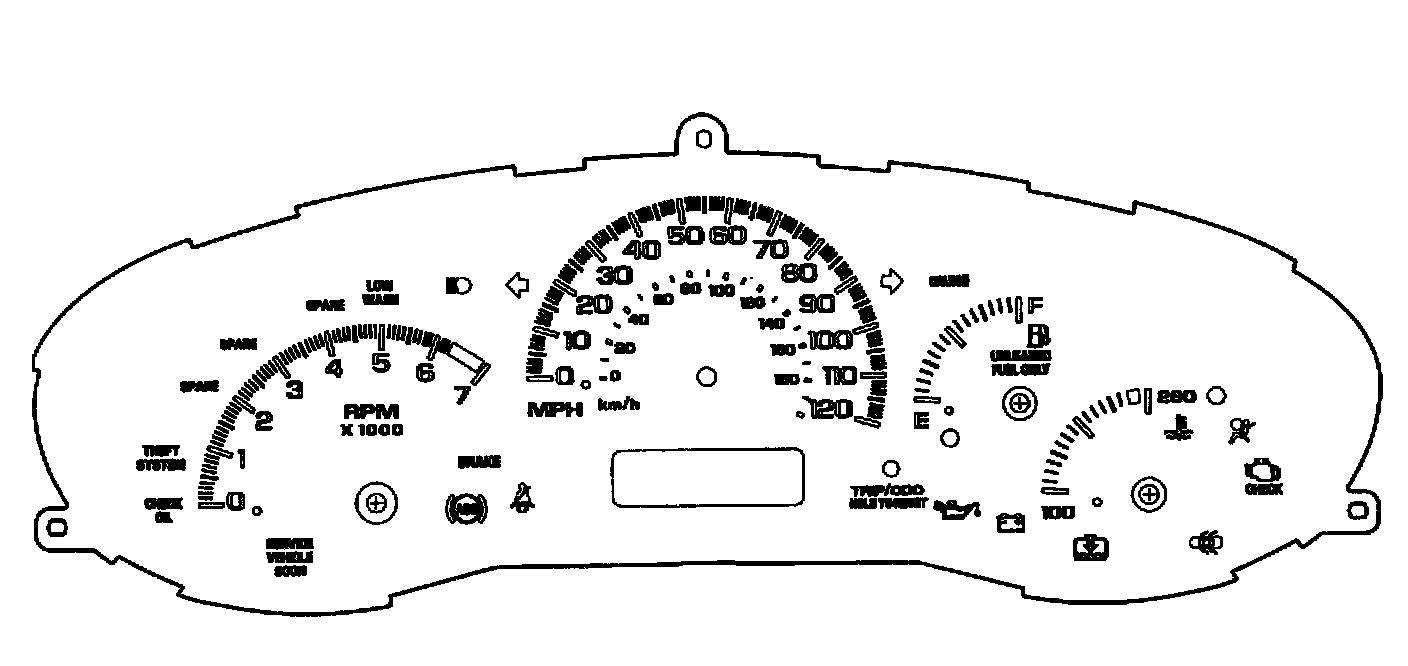

Gauge Cluster Chevrolet - U.S.:

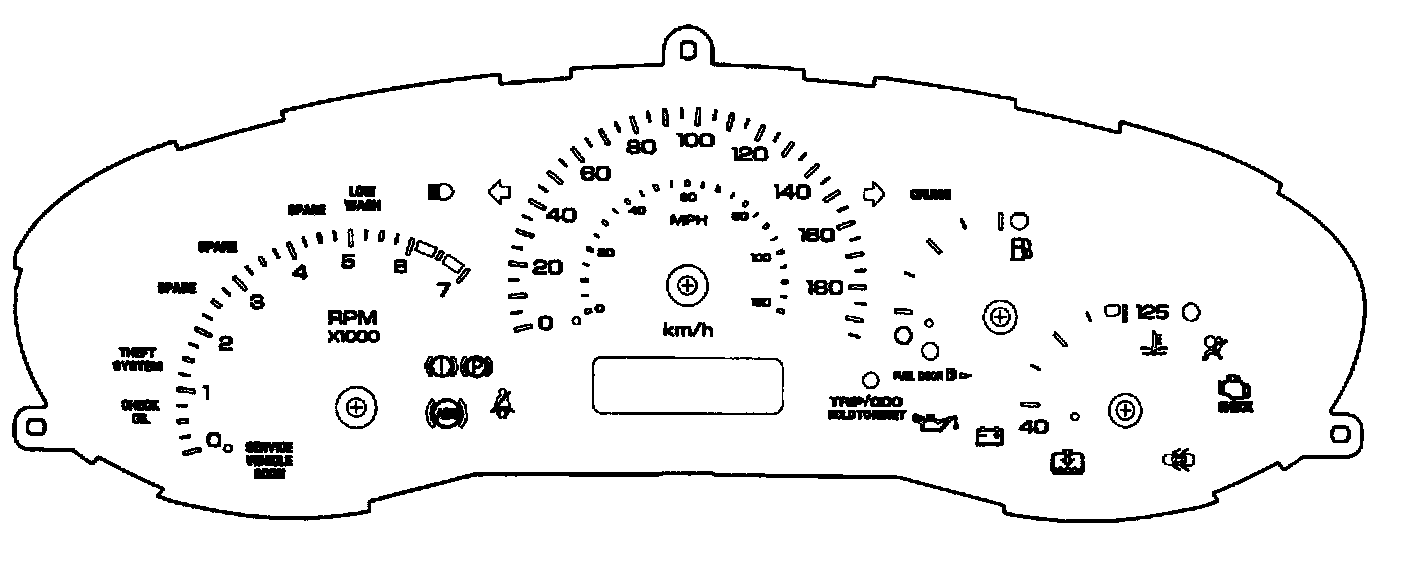

Gauge Cluster Chevrolet - Canada:

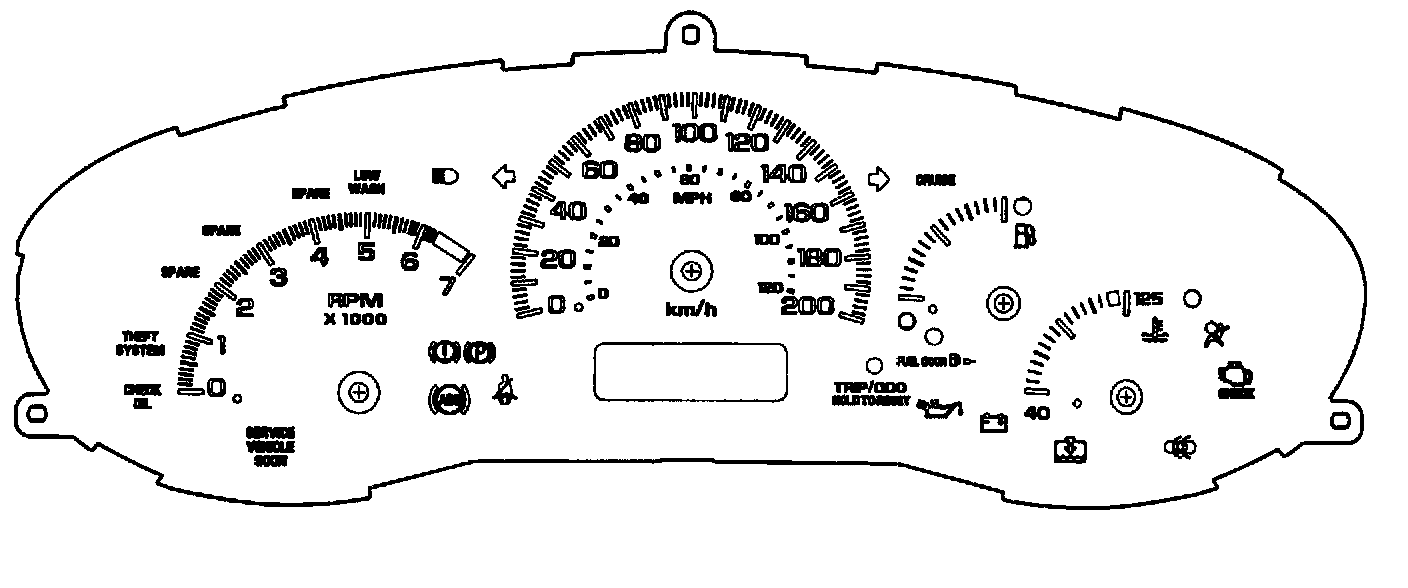

Gauge Cluster Oldsmobile - U.S.:

Gauge Cluster Oldsmobile - Canada:

The cluster contains an electric analog speedometer, stepper motor driven season and trip odometer, temperature gage, fuel gage, tachometer and indicator lamps. The vehicle speed sensor (permanent magnet generator) is located on the transaxle. The indicator lamps include:
^ Air Bag
^ Low Coolant
^ Fasten Safety Belts
^ Check Engine
^ Brake ABS
^ High Beam
^ Left Turn
^ Right Turn
^ Volts
^ Service Vehicle Soon
^ Oil Pressure
^ Door Ajar
^ Check Oil
^ Cruise
^ Low Washer Fluid
^ Theft System

The serviceable parts of this cluster include the lens, bulbs and sockets. All other indicators are not serviceable.

If any other parts require servicing, the cluster should be sent to an authorized instrument cluster service center.
