System Diagnosis Charts/Tables

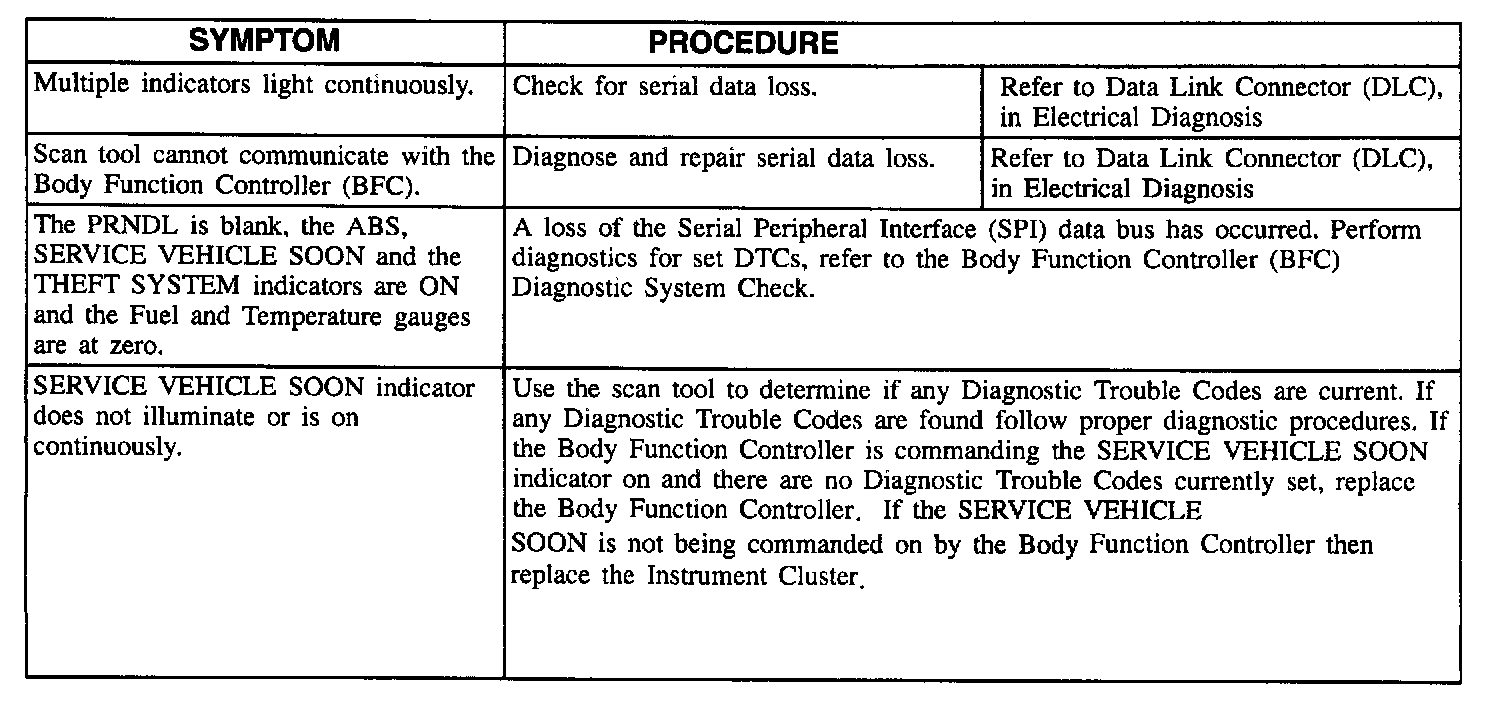

Symptom Charts (Part 1 Of 4):

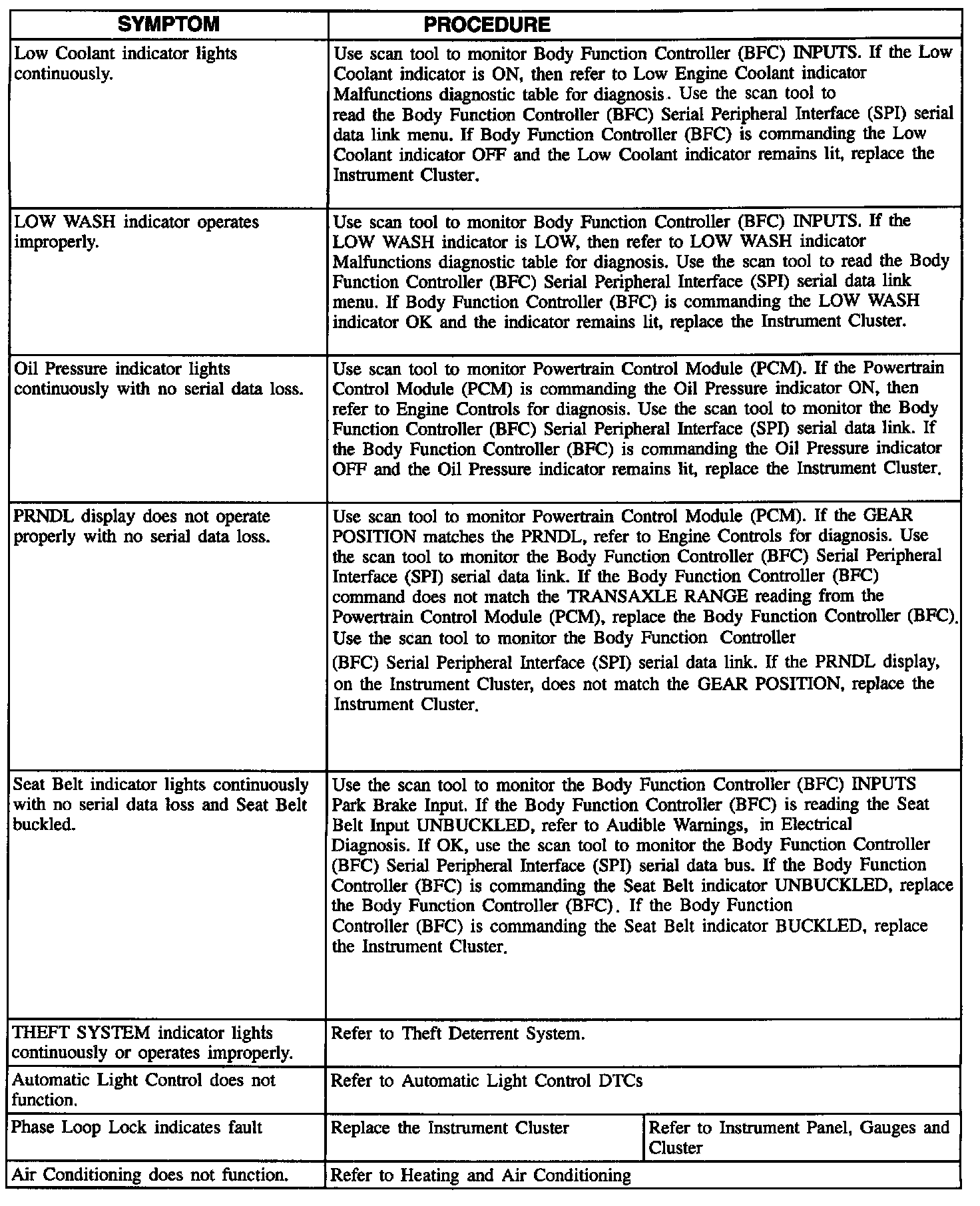

Symptom Charts (Part 2 Of 4):




Symptom Charts (Part 3 Of 4):




Symptom Charts (Part 4 Of 4):






Most of the diagnostic charts for Instrument Panel are found under Body Function Controller. Testing and Inspection
