Fog Lamp Replacement

REMOVE OR DISCONNECT

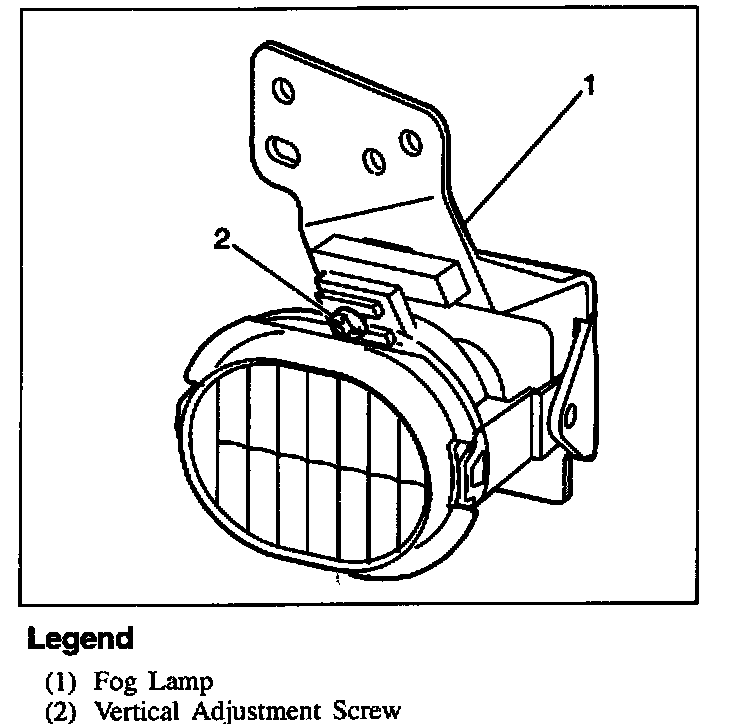

Fog Lamp:

1. Partially remove lower splash shield to gain access to fog lamps.
1. Connector from lamp.
2. Fog lamp bulb from lamp assembly.
3. Bolts, (2).
4. Fog lamp from impact bar.

INSTALL OR CONNECT

Fog Lamp Mounting:

1. Fog lamp to impact bar.
2. Bolts, fog lamp bracket to impact bar.
Tighten
^ Bolts to 2.5 N.m (53 lbs in).
3. Fog lamp bulb to lamp assembly.
4. Connector to lamp assembly.
5. Lower splash shields.
